Application
● Anti-Slip Type Vacuum Chuck specially for gripping flat work piece.
● Suitable in dry and wet environment.
● Surface grinder and center processing machines may install.
Feature

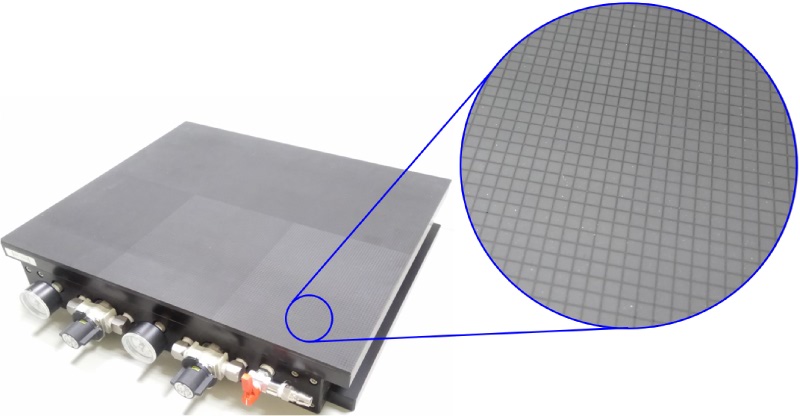

● Regional adhesion
With a wide range of workpiece sizes can be arbitrarily adsorbed on the same ceramic.
● High temperature resistance
Sintered by high temperature; excellent high temperature resistance.
● Corrosion resistance
Good resistance to acid and alkali material; wide range of application.
● Wear resistance
With extreme hardness ceramics feature.
Specification
-

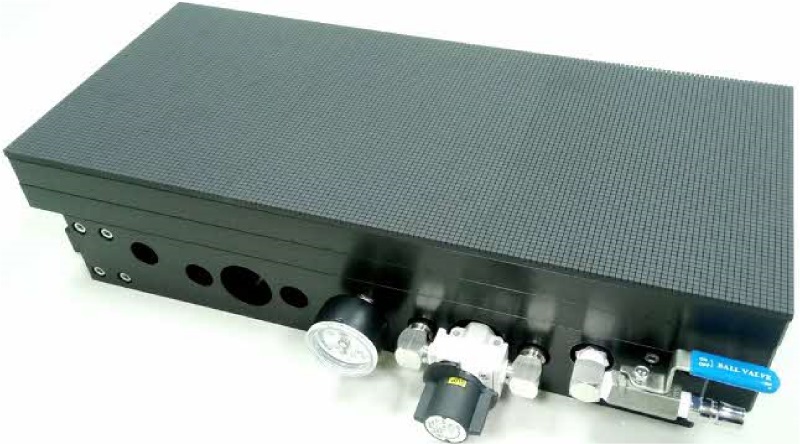

Anti-Slip Type Vacuum Chuck Standard (full set)
Stand size:450X400、450X200.
Modular design; magnetic or platen set.
Built-in design for vacuum system.
Any air pressure source can be used (Nittostyle quick coupler-PM), no additional piping engineering need.Vacuum system built-in design is for a more than 3 pcs design of ceramic.
The external vacuum is used with two or less piece of ceramic.

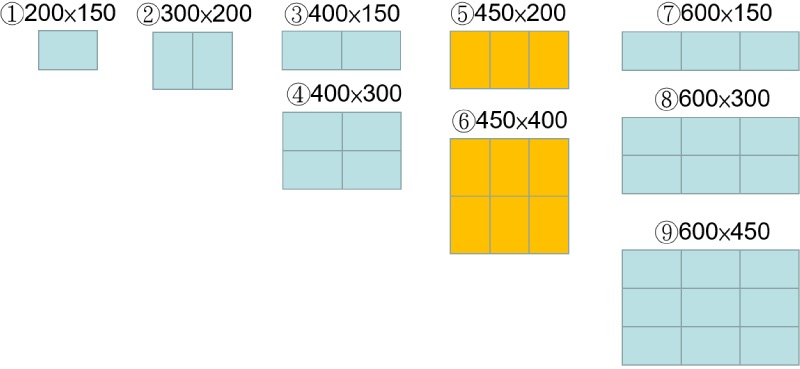

The size can be extended according to standard single ceramic size 150x200.

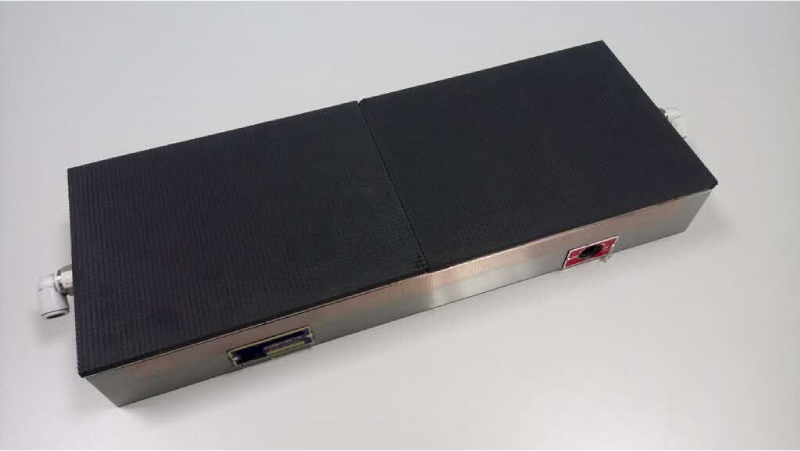

Magnetic / Vacuum Dual purpose chuck
Stand size:400X150mm.

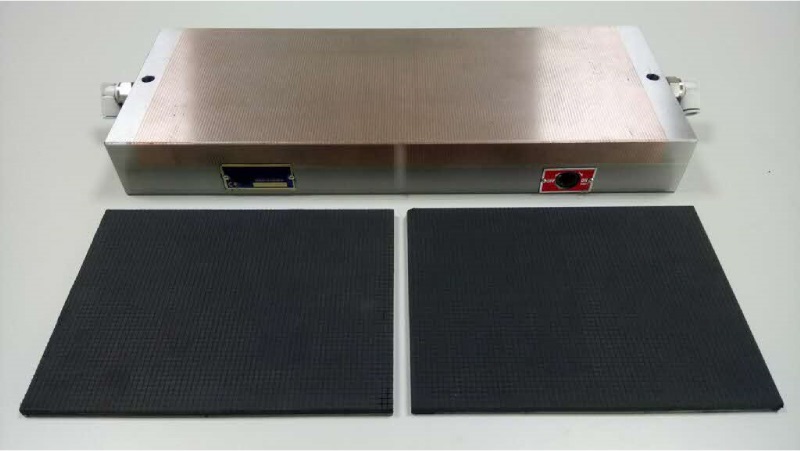

A thin ceramic design for Anti-Slip Type, with the use of electro-permanent magnetic chuck do not affect the work space and easy to load ceramic.
External vacuum system designed and configured according to customer’s actual equipment needs.
