Drill grinding machine

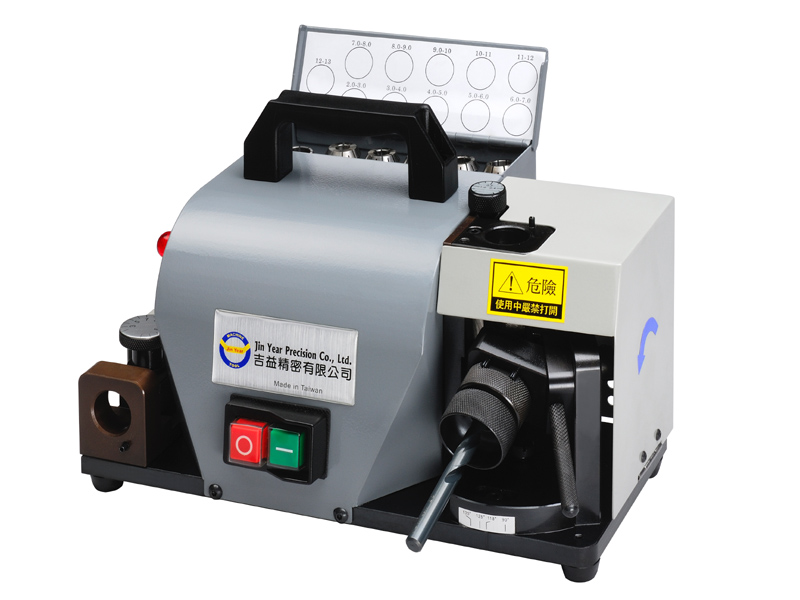

DRILL RE-SHARPENING MACHINE
JD-213

"Accurate + Sharp + Durable" Can meet your demand

Key Point: 1. This machine has the " CE safety authentication ".
2. Operates is fast and simple. The quality is stable.
3. Point Angle 90°~135°.(Generally is suitable 118°)
4. Chisel edge grinding. Can adjusting by your demand.(Generally is suitable 0.7mm)
5. It's the first to research and development "up to down" swinging grinding way.
The finished drill is sharpest and the most durable.

Specification

Specifications JD-213 JD-1326
Drill Diameter Ø2.0~Ø13.0 Ø13~Ø26
Point Angle 90°~135° 90°~135°
Power Supply AC-110V,220V AC-110V,220V
R.P.M of Motor 5100 R.P.M 4200 R.P.M
Grinding Wheel CBN#200 or SDC#200 CBN#150 or SDC#150
Net Weight 9kg 23kg
Overall Dimensions L390xW220xH190 L500xW300xH280
Standard Accessories Colletx11pcs                Collet holder x1set Hexagon wrench 4mm/6mm                   (two kind of each) Colletx14pcs                Collet holder x1set Hexagon wrench 4mm/6mm                   (two kind of each)
