Products

Collets

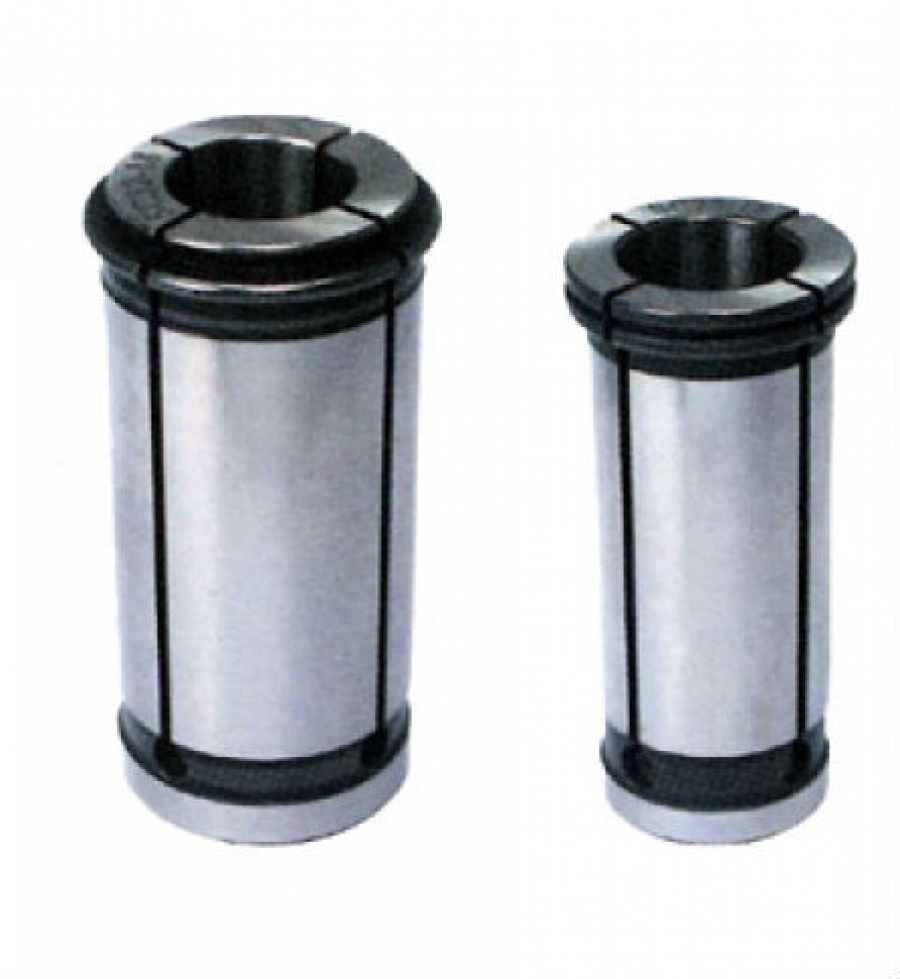

STRAIGHT COLLETS

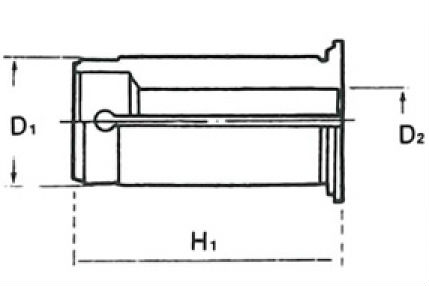

Specification

MODEL D1 D2 H1
SC12 12 3,4,5,6,7,8,9,10 40
SC16 16 3,4,5,6,7,8,9,10,11,12 42
SC20 20 4,6,8,10,12,14,16 52
SC25 25 6,8,10,12,16,20 63
SC32-Metric 32 6,8,10,12,16,20,25 71
SC32-Inch 32 1/4,5/16,3/8,1/2,5/8,3/4,1" 71
SC42 42 6,8,10,12,16,20,25,32 71

STRAIGHT COLLET SET
MODEL

                  Specification

 SC12-6PCS                   3,4,5,6,8,10
 SC16-6PCS                   3,4,6,8,10,12
 SC20-6PCS                   6,8,10,12,14,16
 SC25-6PCS                   6,8,10,12,16,20
 SC32-7PCS-Metric                   6,8,10,12,16,20,25
 SC32-7PCS-Inch                   1/4,5/16,3/8,1/2,5/8,3/4,1"
 SC42-8PCS                   6,8,10,12,16,20,25,32
