Cutting-Off Machine

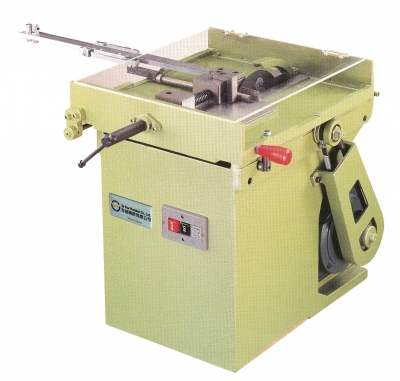

HIGH SPEED PRECISION CUTTING-OFF MACHINE
AN ESSENTIAL PRECISION TOOL FOR MOULD MANUFACTORY SPEEDY AND PRECISE CUTTING FOR ALL KIND OF MATERIAL
FEATURES
1. Moveable shaft bearing, easy operation and safety.
2. For injecting pin cutting.
3. Good-looking cutting surface of stainless steel and heat-treated material.
4. Small size without occupying space.
5. Cause no vibration, no dust and noiseless.
6. Easy to exchange the emery wheel.
Specification
| Specification | |
| Max. cutting capacity | Wide:100mm , Ø25 |
| Emery wheel | O.D.:150mm Thickness:1mm Center Hole:19.05mm |
| Cutting tolerance | 20±0.10mm |
| R.P.M. | 3600 |
| Power | 1/2HP |
| Scale | 300mm |
| Weight (Approx.) | G.W.:85kgs N.W.:97kgs |
| Out-Line (LxWxH) | 620x420x450mm |
| Packing size(LxWxH) | 640x520x620mm |
