Products

Drill grinding machine

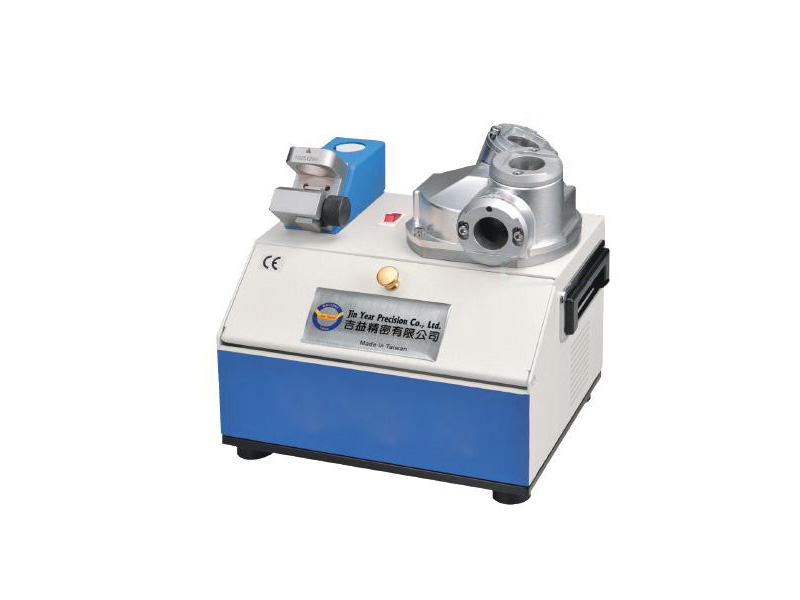

FAST END MILL RE-SHARPENING MACHINE
JE-413

Specification

MODEL JE-413 JE-1225
Capacity 4 ~ 13mm 12 ~ 25 mm
Power Supply AC-110V, 220V, 60HZ AC-110V, 220V , 60HZ
Motor/ Speed 450W/6000rpm 1000W/4500rpm
Diamond Wheel
SDC300#(4~5mm. carbide end mill)
SDC300#(6~13mm. carbide end mill)
SDC150#(12~25mm. carbide end mill)
CBN150#(12~25mm, high speed end mill)
Weight 17KGS 30KGS

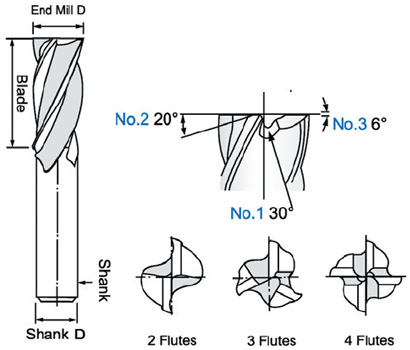

Axial Angles
Third Angle 6° Primary Angle 20° Second Angle 30°
Standard Accessories
Collet:4 ~13mm (10 pcs)
Holder:(2, 4)*1 set、(3)*1 set
Hexagon Wrench:4mm*1pcs
Collet:12, 16, 18, 20, 22, 25mm (6 pcs)
Holder:(2, 4)*1 set、(3)*1 set
Hexagon:4mm*1pcs
Option Accessories
Diamond Wheel:
CBN 300#(4~5mm, high speed end mill)
CBN 270#(6~13mm, high speed end mill) 2 flutes
CBN 270#(4~13mm, high speed end mill) 2 flutes
SDC 300#(4~13mm. carbide end mill) 2 flutes
Diamond Wheel:
CBN 150#(12~25mm, high speed end mill)2 flutes
SDC 150#(12~25mm. carbide end mill)2 flutes
