Travelling Column 5 Axis Machine
MV-64U/86U/107U
MV-64U/86U/107U

Specification

Item unit MV-64U/86U/107U
Travel X-axis mm 400/500/700
Y-axis mm 400/600/700
Z-axis mm 550/500/540
A-axis Deg. -20°~110°/ +110° / -10°~100°
C-axis Deg. 360°/360°/360°
Nose to table mm 120~670/120~620/160~700
Spindle Speed range rpm 10,000(opt.12,000/15,000)
Spindle taper   BT-40
Spindle drive   Direct-coupled
Spindle motor Kw   5.5/7.5-7.5/11-11/15
ATC Magazine capacity 24/24/24(opt.30/40)
ATC typer   Arm type
Tool change time Sec Sec 2/2/2.5(T to T)
Table Table size mm Φ320/Φ400/Φ630
Max. Work piece size Φ300xH200/Φ400xH300/Φ600xH400
Max.  Horizonal load (Kg) 180/200/500
Max. Vertical load (Kg) 110/150/300
Feed X/Y/Z Rapid feed 36/36/30-36/36/30-30/30/24 M/min
A/C Feed (Min-1) A=50/C=25 / A=16.7/C=11.1 / A=16.7/C=11.1
X/Y/Z B/S Diameter (mm) 40/40/50
X/Y/Z Motor Kw   3/3/4-4/4/7-7/7/14
Guide type   Linear ways
Tool Tool Shank BT.40
Max. tool length mm   300
Max. tool diameter mm   80
Max. tool weight Kg   7
  Power suppply (KVA) 25/35/45
Power Sources Pneumatic unit (Kg/cm) 5.5~6.5
  Coolant tank (L) 270/400/450(225x2)
Machine weight Net weight (Kg) 7,000/11,000/15,000
Machine size LxWxH (mm) 2435x4850x2950/5800x5100x3200/4480x5610x3700

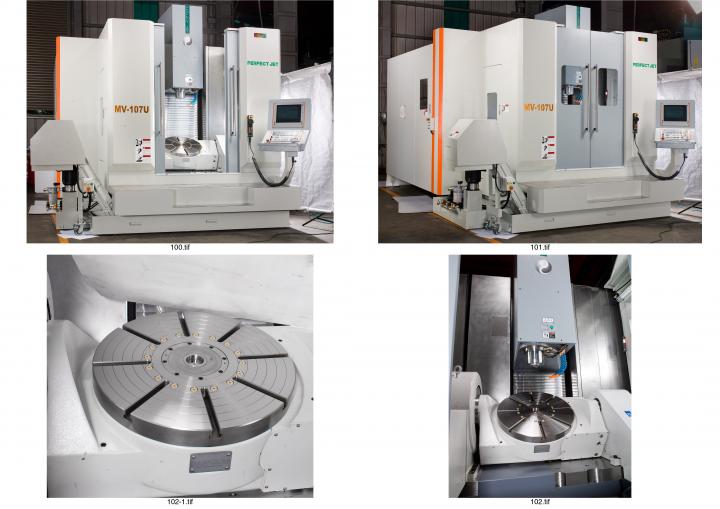

● Designed for complex 3D curved surface machining , such as turbofan and impellers etc.
● Applicable for various industries including aerospace , ship building , automotive , mold and optical.
● Heavy duty roller type linear ways permit heavy cutting.
● Rotary table is directly mounted on base for increasing machining stability and supporting wider range to loading / unloading of workpiece.
