Specification
-

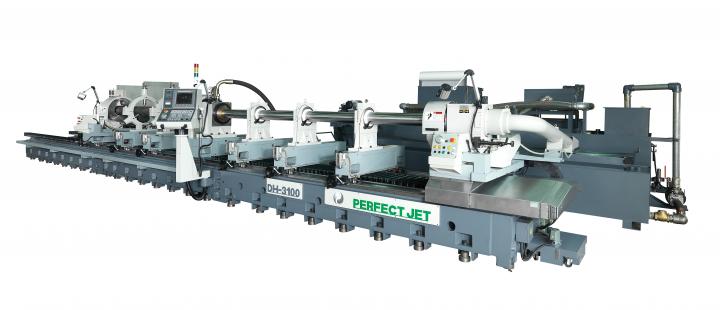

Item unit CNC-DH-3100 SC CNC-DH-6000 SC Control PC base Boring capacity(BTA drilling) mm Φ38~Φ160 Φ38~Φ250 Drilling depth mm 3,100 6,000 Main spindle speed(tooling) rpm 60~1,000(opt.1,250) 20~1,000(opt.1,250) Motor with brake system (tooling) inverter HP 60 100 Head stock motor power inverter HP 10 Counter rotary chuck with C.W. & C.C.W. Clamping capacity mm 38~400 Counter rotary chuck(working piece) 6~18 rpm (L/H gear) inverter Guide way Roller linear Bed width mm 1,100 Swing over bed mm 1,300(50 Degree) Working piece length mm 6,000 Options: Counter rotary chuck mm 600x2 800x2 Steady rest for component set 1 Hi-Pressure coolant pump 4 sets (5~40) 70HP 5 sets (15~40) 85HP Paper-filer & magnetic separator HP 0.5/0.2 Auto slide-way lube system 4 set 105Wx2/250Wx2 Air conditioner on electric cabinet Halogen working lamp W 40 Chain type chip conveyor HP 2 Maintenance tool & tool box Coolant tank mm 3,200Lx2/5,500Lx2
