Specification
-

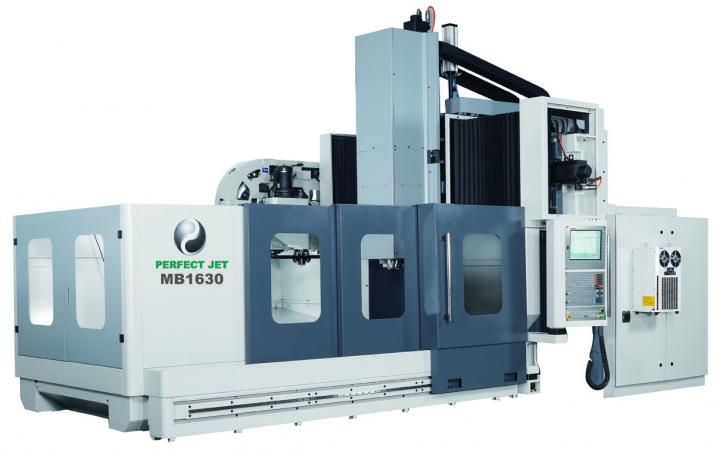

Item MB-1620 MB-1630 Travel X-axis mm 2000 3000 Y-axis mm 1600 1600 Z-axis mm 700 700 Nose to table mm BT-40(150~850)/BT-50(200~900) Spindle center to column surface mm 270 X/Y/Z way span mm 960/770/420 X/Y/Z/W Ballscrew mm Φ63/Φ50/Φ50 Ball bar accuracy/Position-P mm ±0.01/±0.005 Spindle Spindle taper BT40 / option BT50 Spindle transmission Direct-coupled Spindle speed rpm BT40:10000/15000(op)/BT50:6000/8000(op) Controller CNC controller As customer's request Spindle motor kw 15/18.5 X/Y/Z motor kw 7/7/9B 9/7/9B Table Table size(WxL) mm 1600x2200 1600x3200 T-slotsd(widthxno.xpitch) mm 22x10x150 Max. load (Kg) 5000 7000 Feed X/Y/Z Rapid feed rate m/min 16/24/24 Cutting fed rate m/min 1~12 Min. input increment mm 0.001 Magazine Max.tool dia/with adjacent tool mm BT50:Φ110(Φ220) Max. tool weight BT-40(BT-50)kg 8/15(option) Max.tool length(arm/carousel) mm BT40:300/BT50:400 Tool selection Carousel/Arm Tool capacity 16/20/24/32/40 Pull stud kg 45 Tool changing time(T. to T.) sec 2.5 Others Spindle oil cooler L 40 Lubrication capacity L/W 4/250 Air condioner watt 40 Coolant tank L 450 Pneumatic kg/cm2 6 Power KVA 40 45 Weight & Dim. N.W./G.W(approximate) ton 21/24 25/28 Packing(LxWxH) m Floor space(LxWxH) m 4.5x6.3x4 4.6x8x4
