Gun Drilling Machine
Gun Drilling Machine

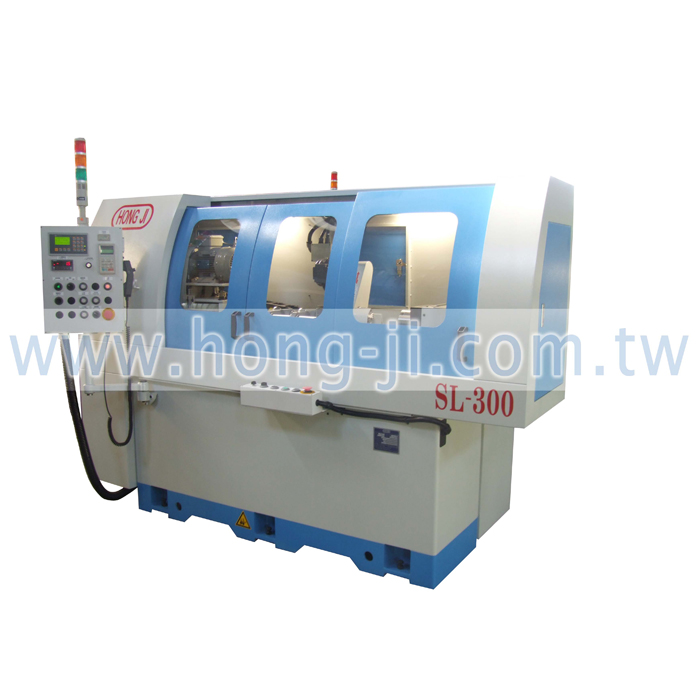

SL-300
In this production line, the SL-300 model is ideal for center-hole drilling applications like automobile or aerospace parts. With three-jaw manual chucks, the clamping part is more flexible than you imagine; and for your information, the hydraulic chuck is available as well. In order to make the operator feel more convenient, we have outer-controller and MPG design on the drilling machine. You can find more detail about the machine, and you are also very welcome to contact us for more information.
Specification
Capacity
- Number of drill spindle: 1 No
- Range of drilling dia.: 2 ~ 6mm
- Max. depth of drilling: 300 mm
Speed
- Drill feed range: 10 ~ 500 mm/min
- Spindle speed range: 10,000 rpm
Working table stroke
- Effective drill stroke (Z-Axis): 300mm
Drive motor
- Spindle motor: 3hp
- Z-Axis: 1hp
- Workpiece driven motor: 1/8hp
- Coolant pump: 5hp
- Automatic lubrication: 40w
- Total machine power: 10hp
Hydraulic system
- Coolant pump pressure range: 10~120 kg/cm²
- Pump output range: 30~60 L/min
- Coolant tank capacity: 400 L
- Net weight: 1,500 kgs
- Machine dimensions(Approx): 1,200 x 2,400 x 1,700mm
Standard accessories
Special accessories
- Paper filter
- Magnetic separator
- Chip and oil separator system
- High pressure oil pump
- Auto lubrication system
- Protecting drill torsion system
- Outer oil tank/Oil level gauge
- Tranformer
- Leveling screws & block
- Tool box / work light / alarm light
- Mechanical / Electrical operation manual
Special accessories
- Oil cooler
- Coolant oil
- Gundrill
- Guide bush
- Rubber bush
- Automatic Voltage stabilizer
- Fully enclosed guard
- Gundrill grinder
- Safety door interlock
- Oil mist collector
- Filtration housing
- Centrifuge
Order Information:
- Minimum Order: Negotiable
- Branded Product
- FOB: Taichung or Keelung Port, Taiwan
