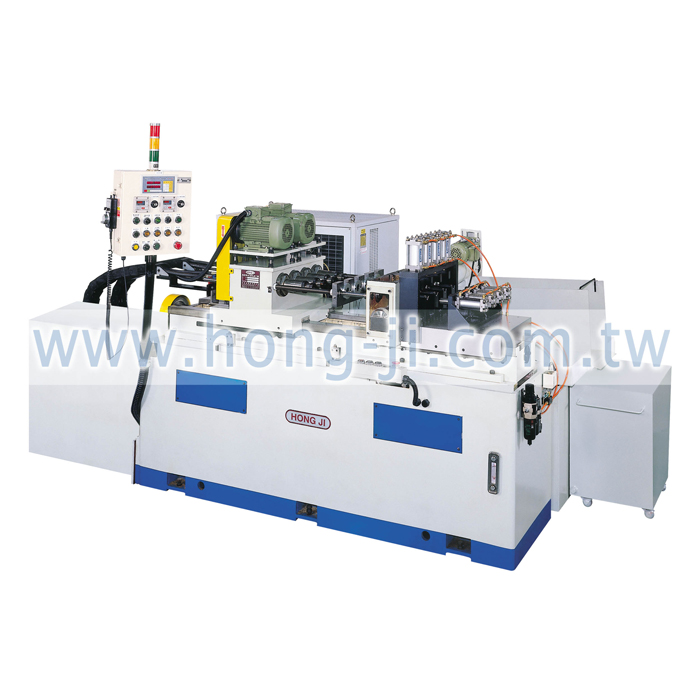

Special for round bar material. (Four spindles mass product type, Hydraulic / pneumatic clamp)
Special design for center-hole drillng, like eject hole, automobile parts, medical parts, ect.
High-quality ball screw of feed-axe with Mitsubishi PLC and Yaskawa sevorcontrol, working process is stable and precision.
The design of controller panel is user-friendly. Working parameter set up step by step on the controller panel, it is easy to use for operator.
Slide ways are hot-treatment to hardness HRC 60 and ground way are based on mechanic cast iron. The opposite ways and gibs are all Turcite-B plated with hand scraped bearing surface.
The enhanced ribs in the major construction provide the excellent rigidity for drilling big size of holes.
With special design in fixture device( hydraulic clamp or hydraulic V-type supporter), set up workpieces are faster and easier.
With outer-controller and MPG, operator uses the machine very convenient.
Automatic lubrication pump is provided as standard accessory to ensure all bearing surface and screws are well lubricated.
Four filtration systems ( paper filter, magnetic separator, filtration can and oil & chip spearator) are standard accessories to keep the oil clean.
The excellent design of oil flow cycle provides plentiful oil to lower the temperature of drilling and drill smoothly.
Capacity
- Number of drill spindle: 4 Nos
- Range of drilling dia.: 3 ~ 12mm (Option: 5~25mm)
- Max. depth of drilling: 500 / 1,000mm
Speed
- Drill feed range: 10 ~ 150 mm/min
- Spindle speed range: 6,000 rpm
Hydraulic system
- Coolant pump pressure range: 0~100 kg/cm²
- Pump output range: 30~60 L/min
- Coolant tank capacity: 1400 L
Working table stroke
- Effective drill stroke (Z-Axis): 800mm / 1,300mm
Drive motor
- Main spindle motor: 7.5hp x 2 (10hp x 2)
- Z-Axis: 2hp
- Coolant pump motor: 10hp x 2
- Chip screw: 1/8hp
- Automatic lubrication: 40kw
- Total machine power: 150hp
- Net weight: 4,000 / 4,500kgs
- Machine dimensions(Approx): 3,300 x 3,500 x 1,700 / 3,800 x 3,500 x 1,700mm
Standard accessories
- Paper filter
- Magnetic separator
- Chip and oil separator system
- High pressure oil pump
- Auto lubrication system
- Protecting drill torsion system
- Outer oil tank/Oil level gauge
- Tranformer
- Leveling screws & block
- Tool box / work light / alarm light
- Mechanical / Electrical operation manual
Special accessories
- Oil cooler
- Coolant oil
- Gundrill
- Guide bush
- Rubber bush
- Automatic Voltage stabilizer
- Fully enclosed guard
- Gundrill grinder
- Safety door interlock
- Oil mist collector
- Filtration housing
- Centrifuge
