4-Axis CNC Rotary Table Pneumatic Brake
SUAC-125
SUAC

Table diameter provides a choice of Ø125mm.
Employs high rigidity, extra large radial and axial bearing.
Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

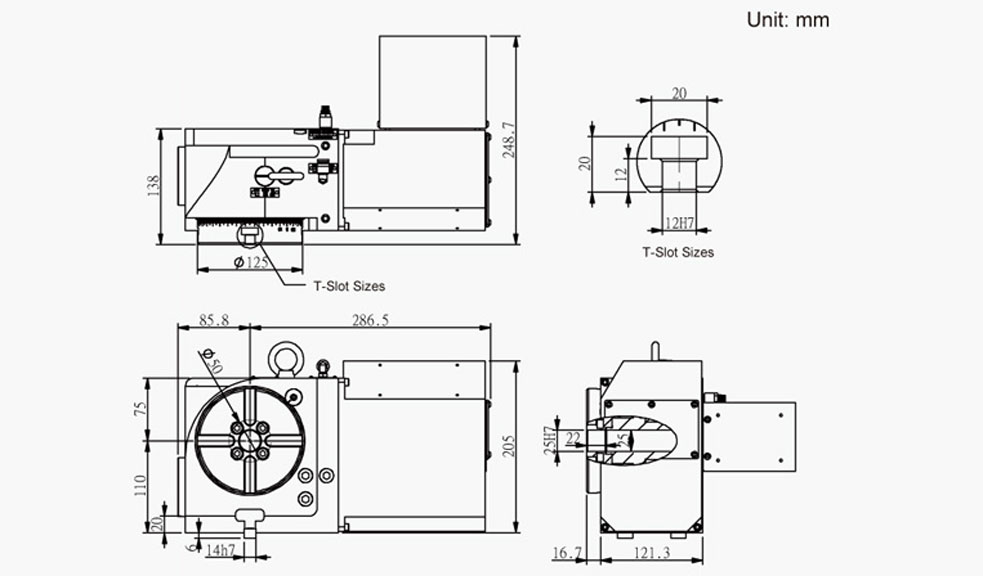

Specification

MODEL UNIT SUAC-125
Table diameter mm Ø125
Center hole diameter mm Ø25H7
Through-hole diameter mm Ø25
Height of center (Vertical) mm 110
Height of table (Horizontal) mm 138
T-slot width of table mm 12H7
Width of guide block mm 14h7
Min. increment deg. 0.001
Indexing accuracy sec. 40
Repeatability sec. 4
Clamping torque Air 5~7kg/cm² N.m 80
Hyd. 20~30kg/cm² N.m -
Servo motor model FANUC - α2i / ß4is
Mitsubishi - HF-75/HF-105S
Teeth ratio - 1 : 48
Max.table speed(FANUC a motor) rpm 83.3
Allowable load capacity Vertical kg 40
Horizontal kg 90
With tailstock kg 100
Allowable cutting force(Clamped status) F N 9000
FxL N.m 400
FxL N.m 80
Allowable torque of worm gear N.m 85
Allowable inertia J=W.D²/8 kg.m² 0.14
Weight (Motor excluded) kg 27
