Center Tailstock
SUTT
SUTT

The tailstock is ruggedly contructed for high rigidity.
For models over 125, #MT4 center is used. #400 MT5.
The mini type 125S is suitable for small type machine tools for light cutting applications.

Specification

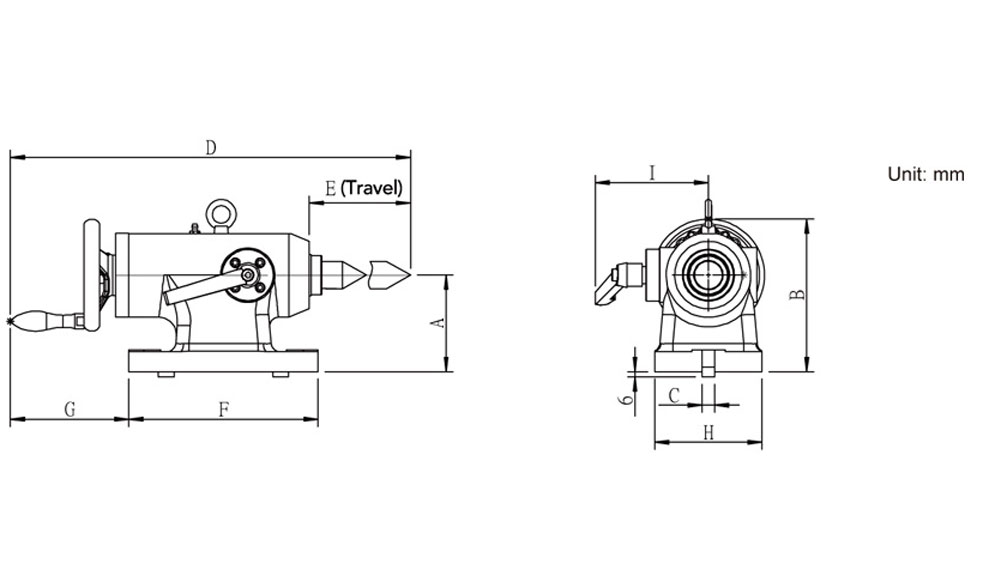

Model/Specif. A B C D E F C H I Center(Morse)
SUTT-125S 110 140.5 14 294/324 30 140 137.5 80 105.5 #MT2
SUTT-125 110 157 14 405/455 50 215 134.5 122 128 #MT4
SUTT-170 135 182 18 405/455 50 215 134.5 122 128 #MT4
SUTT-210 160 207 14 405/455 50 215 134.5 122 128 #MT4
SUTT-255 160 207 14 405/455 50 215 134.5 122 128 #MT4
SUTT-320 210 257 18 405/455 50 215 134.5 122 128 #MT4
SUTT-400 255 302 18 461/521 60 270 134.5 160 141 #MT5
