Tooth Type Rotary Table
SUHC-340
SUHC
Table diameter provides a choice of Ø340mm, etc.
Employs three-piece clutch gear with accuracy reaching ±5 sec. Suitable for heavy cutting.
Choice of 4, 6, 8, 12 and 24 indexes.
Choice of special indexes 2, 3, 5, 9 .. ..

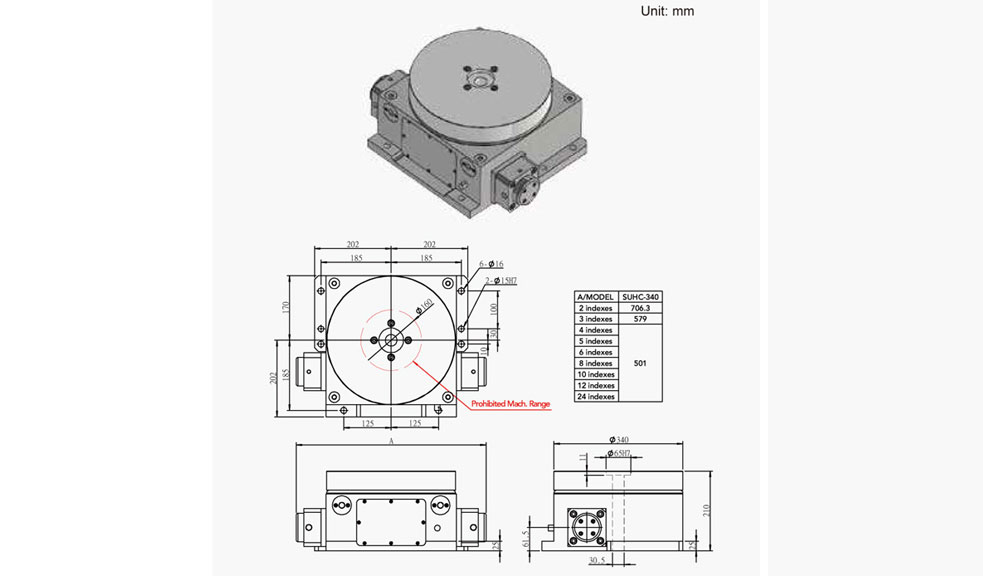

Specification
| MODEL | UNIT | SUHC-340 | ||
|---|---|---|---|---|
| Table diameter | mm | Ø340 | ||
| Center hole diameter | mm | Ø65H7 | ||
| Center hole depth | mm | 11 | ||
| Through hole diameter | mm | 31 | ||
| Height of table (Horizontal) | mm | 210 | ||
| Indexing number (Standard) | - | 4/6/8/12/24(Standard indexes) | ||
| Indexing number (Spec.) | - | 2/3/5/9(Special indexes) | ||
| Indexing accuracy | sec. | ±5 | ||
| Repeatability | sec. | ±1 | ||
| Clamping method | Hyd. pressure | kg/cm² | 35 | |
| Unclamp / clamp time | s | 0.6/0.1 | ||
| Time of rotating 90° | s | 2.5 | ||
| Clamping torque | kgf.m | 57 | ||
| N.m | 558 | |||
| Allowable instant inertia | J=W.D²/8 | kg-m² | 21.25 | |
| Allowable load | Horizontal | kg | 500 | |
| Allowable cutting force (Clamped status) |
F (Hori.) | kgf | 1560 | |
| N | 15288 | |||
| FxL (Hori.) | kgf.m | 145 | ||
| N.m | 1421 | |||
| FxH (Hori.) | kgf.m | 332 | ||
| N.m | 3254 | |||
| Weight (Motor excluded) | kg | 120 | ||
