Products

4-Axis / 5-Axis CNC Rotary Table Pneumatic Brake
FSA-170
FSA

Ø170mm table diameter.
Employs high rigidity, extra large radial and axial bearing.
The tiling axis employs the latest full circumference brake, featuring even braking force without runout. Maximum clamping area, higher clamping force, no vibration and no braking delay is required . High torque combined with compact, rigidity and enclosed structure ensure high cutting quality.
Please provide the motor appearance information according to the motor brand, which will facilitate design and planning. For details contact us.

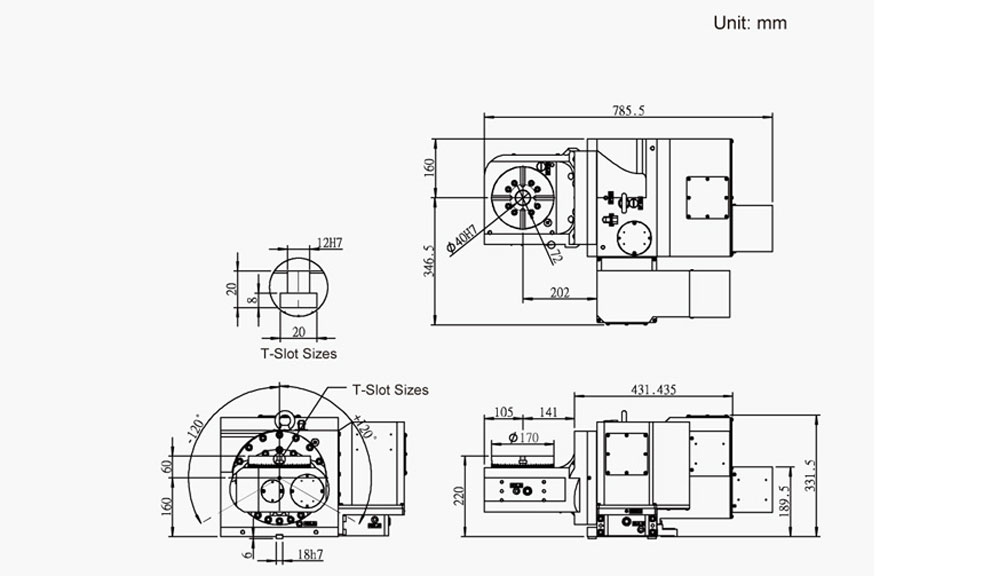

Specification

MODEL UNIT FSA-170
Table diameter mm Ø170
Center hole diameter mm Ø40H7
Through-hole diameter mm Ø40
Height of table(Horizontal) mm 160
Swiveling axis center to table center mm 220
Height of table(Vertical) mm 60
Swiveling axis center to table center mm 12H7
T-slot width of table mm 18h7
Guide key width on tilting axis mm 0.001
Min. setting angle deg.

Tilt axis

Swiveling axis(Stra.)
Servo motor model Motor Brand α8i / ß12is α4i / ß8is
FANUC HF-154S HF-154S
Mitsubishi 60 20
Positioning accuracy sec. 8 6
Repeatability sec. 600 250
Clamping torque N.m 35(Hyd.) 5~7(Pneu.)
Clamping method kg/cm² 1:120 1:90
Teeth ratio - 22.2 33.3
Max. table speed(FANUCa motor) rpm 60
Allowable load capacity 0°Hori. kg 45
0°-90°Tilting kg 7000
Allowable cutting force
(Clamped status)
F N Hyd.: 350  Pneu.: 200
FxL N.m Hyd.: 400  Pneu.: 300
FxL N.m 600 200
Allowa.ble torque on worm gear N.m ±120
Tilting angle deg. 0.20
Weight (Motor excluded) kg 177
