Products

Flexible Carrier

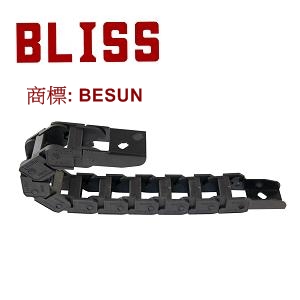

Plastic Cable Drag Chain
A8019

Brand: BESUN


Features:
* Made of fiber reinforced plastic (FRP), chemical resistant,
temperature range from -25°C ~ 125°C, suitable for long - term
movement.
* Screw driver is able to open the cap, convenient for the setting
and change of wires and all kinds of conduits.
* Suitable for: Machine tools, robots, fiber machine, protective
tubes of pneumatic tube, hydraulic cylinder, rubber tubes for gas
& liquid.

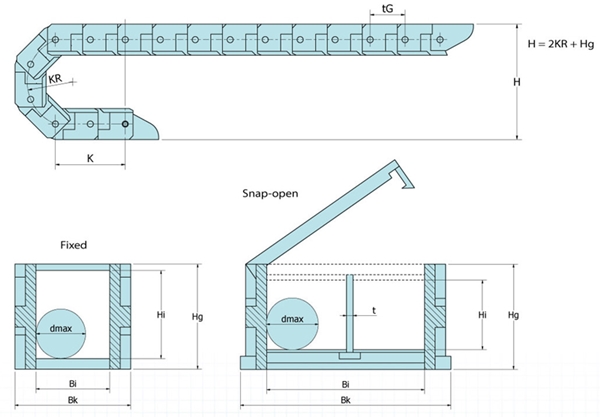

Specification

A8019

Type  Outside Width (Bk)
(mm)
Outside Height (Hg)
(mm)
Inside With (Bi)
(mm)
Inside Height (Hi)
(mm)

Pitch (tG)
(mm)

Wire/Conduit Diameter (dmax)
(mm)
Bending Raidus
(mm)
Cap  *Divider  (t) (mm)
A8019-0 (320.20) 24 25 13 19 32.5 11 37 Fixed -
A8019-1 (320.42) 37 27 24 19 32.5 16 37, 47, 77, 100 Fixed  -
A8019-2 (450.21) 57 40 38 24 45.5 22 52, 94, 125, 150 Snap-open 2.5
A8019-3 (450.41) 77 40 58 24 45.5 22 52, 94, 125, 150, 200 Snpa-open 2.5
A8019-4 (450.61) 97 40 78 24 45.5 22 52, 94, 125, 200 Snpa-open 2.5
A8019-5 (625.23) 93 62 65 34 63.0 31 90, 125, 200 Snpa-open 3.5
A8019-6 (625.43) 136 62 108 34 63.0 31 90, 125, 200, 300 Snpa-open 3.5

* Detailed flange types and dimensions, please see E-Catalog.
