Products

Wire Harness Series for Automobile
Nylon PA6 Plastic Conduit
N2017

Features:
Material: Polyamide (Nylon) 6 (PA6)
Europe Specification
Temperature range -30°C ~ +105°C
Halogen free, self extinguishing, UL 94 V2
Light, flexible, strong
High mechanical strength, for machinary, transportation facilities
High chemical resistance
Superior UV (sunlight) resistance, weather resistant
IP65

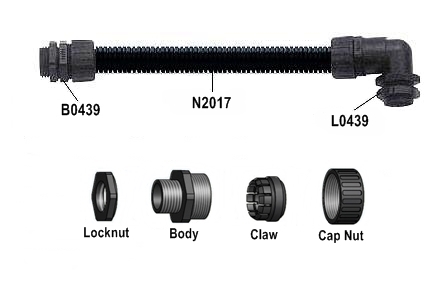

Best performance with
B0439 Nylon Straight Connector - PF Thread
L0439 Nylon 90° Connector - PF Thread

Specification

Catalog number Nominal size Inner diameter
(mm)
Outside diameter
(mm)
Packing length
(m)
N20170207 1/4" 6.80 10.00 100
N20170209 5/16" 9.60 13.00 50
N20170311 3/8" 12.00 15.80 50
N20170416 1/2" 16.20 21.20 50
N20170621 3/4" 21.90 28.50 50
N20171029 1" 27.60 34.50 50
N20171236 1-1/4" 36.00 42.50 25
N20172048 2" 47.00 54.50 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan

Mold
Machine
Vehicle
