Connectors for Plastic Protective Tubing System
Nylon Straight Connector - PF Thread (Suitable for type N2017)
B0419
Suitable for type E2017 PE flexible conduit.
Brand: VONYE
Features:
* Polyamine 6 (PA6) (Nylon 6), meets UL 94 V2.
* PF thread
* Light
* Weather resistant
* High electrical properties.
* For type E2017 PE flexible conduit.
* Temperature range: -10°C~+120°C.
* IP65.
* Color: black, gray
* RoHS & REACH compliant
* 90 angle type L0419 is available.

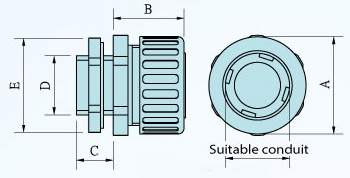

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Thread | Suitable conduit (mm) | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| B04190300 | B05190300 | 3/8" | 28.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 17.8 | 100 |
| B04190400 | B05190400 | 1/2" | 33.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 22.0 | 100 |
| B04190600 | B05190600 | 3/4" | 39.0 | 28.0 | 13.0 | 26.4 | 40.0 | PF 3/4 | 26.0 | 50 |
| B04191000 | B05191000 | 1" | 46.0 | 31.0 | 15.0 | 33.3 | 47.5 | PF 1 | 34.0 | 50 |
| B04191200 | B05191200 | 1-1/4" | 55.5 | 33.0 | 17.0 | 41.9 | 55.5 | PF 1-1/4 | 42.0 | 25 |
