Liquid Tight Connectors
90° Nylon Connector - PF Thread

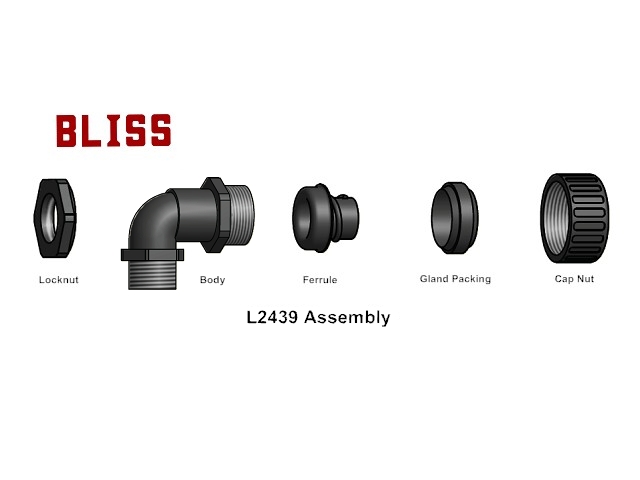

L2439
Features:
* Polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
* PF thread
* Light
* Weather resistant.
* For corrugated liquidtight flexible metal conduit like type A2017,
A2018.
* Temperature range: -10°C~+120°C.
* IP65.
* Color: black, gray
* RoHS & REACH compliant
* Straight type B2439 is available.

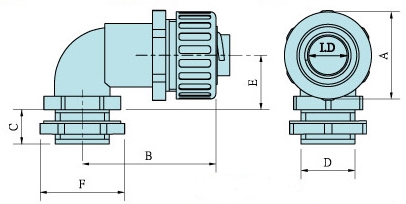

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L24390300 | L25390300 | 3/8" | 10.5 | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 50 |
| L24390400 | L25390400 | 1/2" | 13.5 | 33.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 50 |
| L24390600 | L25390600 | 3/4" | 18.5 | 39.0 | 52.0 | 13.0 | 26.4 | 25.0 | 32.0 | PF 3/4 | 25 |
