Special Purpose Power Chucks
Special Purpose Power Chucks Power Indexing Chuck
IS

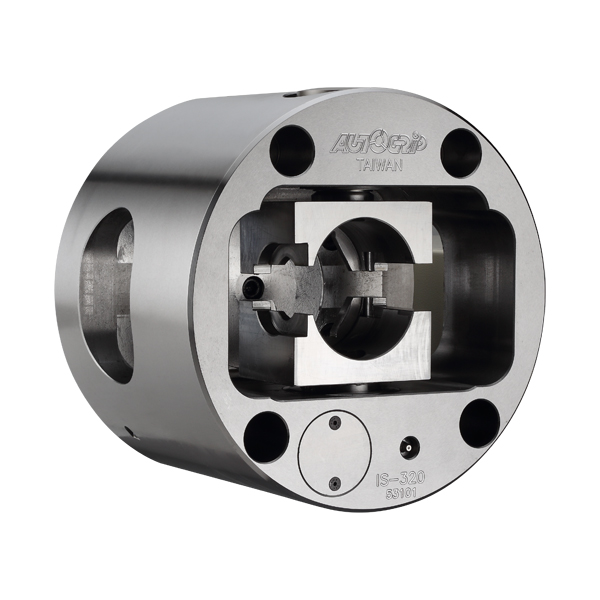

Power Indexing Chuck
IS
Power Indexing Chuck
Indexing operates during the spindle rotation, can perform a quick change between multiple working axles.
All parts of chuck hardened, ground and lubricated directly.
Sealed against swarf, chips and coolant.
Construction of high rigidity and high repeatability precision.
Unique indexing system and hydraulic system, with pressure detection device in chuck, high reliability.
Specification
| Model | Index Angle Deg | Jaw stroke (Dia.) (mm) |
Chucking Area Dia Max. (mm) |
Chucking Area Len Max. (mm) |
Max. pressure MPa (kgf/cm2) |
Max. clamping force kN (kgf) |
Max. speed min-1(r.p.m.) | I kg‧m2 |
Weight (kg) |
ROTATING JOINT | Main Spindle Bore(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IS-254 | 8x45,4x90 | 20 | 65 | 160 | 45 | 19.5(1990) | 2400 | 0.41 | 41.0 | IS-315 | 86+0.1 |
| IS-275 | 8x45,4x90 | 20 | 80 | 220 | 45 | 25.4(2590) | 2100 | 0.61 | 52.0 | IS-315 | 86+0.1 |
| IS-315 | 8x45,4x90 | 20 | 100 | 230 | 45 | 25.0(2550) | 1800 | 1.13 | 76.0 | IS-315 | 86+0.1 |

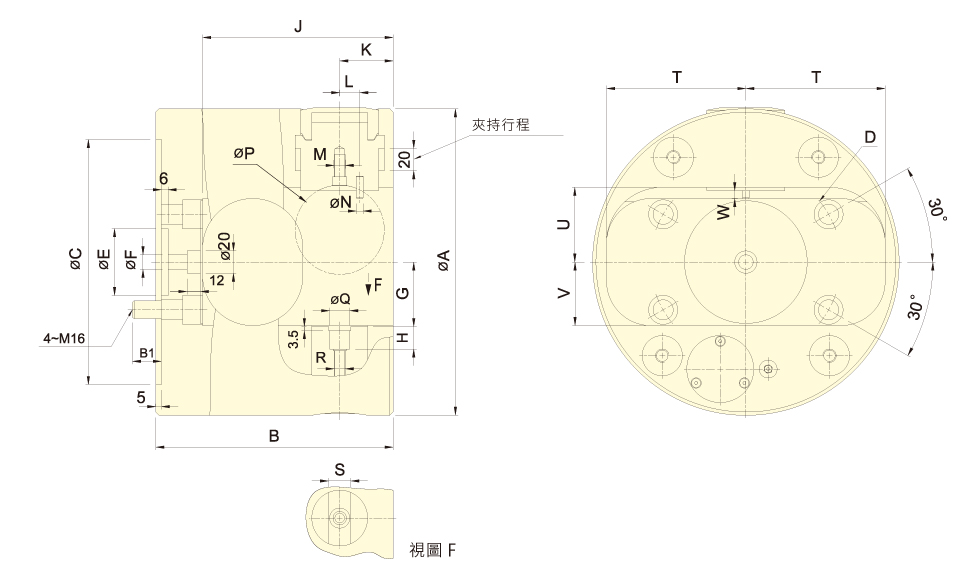

| Model | A | B | B1 | C(H6) | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IS-254 | 254 | 190 | 23 | 220 | 171.4 | 60 | 13 | 47.5 | 18 | 155 | 48 |
| IS-275 | 275 | 213 | 26 | 220 | 171.4 | 60 | 13 | 58 | 20 | 171 | 48 |
| IS-315 | 315 | 232 | 22 | 220 | 171.4 | 60 | 13 | 71 | 18.5 | 187 | 50 |
| Model | L | M | N | P | Q(H7) | R | S(H7) | T | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IS-254 | 13 | M8 | 5 | 40 | 18 | M10 | 20 | 106 | 57 | 46.5 | 5.5 |
| IS-275 | 18 | M10 | 6 | 80 | 18 | M10 | 20 | 125 | 67 | 57 | 7 |
| IS-315 | 18 | M10 | 6 | 75 | 24 | M12 | 25 | 125 | 85 | 70 | 7.5 |
