Non-Thru-Hole Stationary 2/3-Jaw Power Chuck
STATIONARY CHUCK with two or three jaws for drilling, milling and other machines.
Specification and size of matching chuck for model VP-200 is the same as model 2P.
Specification and size of matching chuck for model VP-300 is the same as model 3P.
Specification
Model | Eff. Piston area cm2 Extend |
Eff. Piston area cm2 Retract |
Jaw stroke(Dia.) (mm) | Max. pressure MPa (kgf/cm2) |
Weight (kg) |
---|---|---|---|---|---|
VP-204 | 28.0 | 24.9 | 6.4 | 2.1(21) | 7.1 |
VP-304 | 28.0 | 24.9 | 6.4 | 3.2(32) | 7.4 |
VP-205 | 28.0 | 24.9 | 6.4 | 2.2(22) | 10.2 |
VP-305 | 28.0 | 24.9 | 6.4 | 3.3(33) | 10.6 |
VP-206 | 63.1 | 53.5 | 8.5 | 2.3(23) | 18.3 |
VP-306 | 63.1 | 53.5 | 8.5 | 3.4(34) | 19.8 |
VP-208 | 103.4 | 90.8 | 8.8 | 1.9(19) | 31.6 |
VP-308 | 103.4 | 90.8 | 8.8 | 2.8(28) | 33.6 |
VP-210 | 153.1 | 133.5 | 8.8 | 1.5(15) | 52.8 |
VP-310 | 153.1 | 133.5 | 8.8 | 2.2(22) | 54.5 |

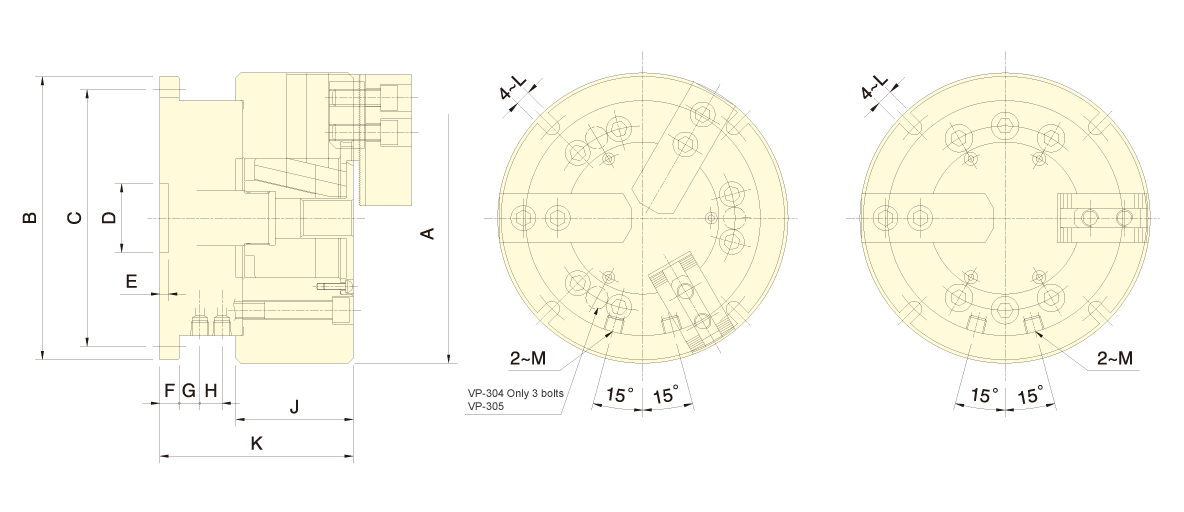

Model | A | B | C | D(H8) | E | F | G | H | J | K | L | M |
---|---|---|---|---|---|---|---|---|---|---|---|---|
VP-204 | 110 | 146 | 130 | 30 | 4.5 | 12 | 18 | 2 | 52 | 92 | 9 | RC1/4 |
VP-304 | 110 | 146 | 130 | 30 | 4.5 | 12 | 18 | 2 | 52 | 92 | 9 | RC1/4 |
VP-205 | 135 | 146 | 130 | 30 | 4.5 | 12 | 18 | 2 | 55 | 95 | 9 | RC1/4 |
VP-305 | 135 | 146 | 130 | 30 | 4.5 | 12 | 18 | 2 | 55 | 95 | 9 | RC1/4 |
VP-206 | 165 | 178 | 160 | 40 | 5 | 12 | 14.5 | 12.5 | 74 | 125 | 11 | RC1/4 |
VP-306 | 165 | 178 | 160 | 40 | 5 | 12 | 14.5 | 12.5 | 74 | 125 | 11 | RC1/4 |
VP-208 | 210 | 205 | 186 | 40 | 5 | 14 | 15 | 16 | 85 | 140 | 11 | RC1/4 |
VP-308 | 210 | 205 | 186 | 40 | 5 | 14 | 15 | 16 | 85 | 140 | 11 | RC1/4 |
VP-210 | 254 | 248 | 225 | 50 | 6 | 17 | 20 | 18 | 89 | 176 | 13 | RC3/8 |
VP-310 | 254 | 248 | 225 | 50 | 6 | 17 | 20 | 18 | 89 | 176 | 13 | RC3/8 |
