Rotary Cylinders
Rotary Cylinders Collant Collector
CT/CT-S
oolant CollectorCoolant Collector
CT/CT-S
Coolant Collector with Stroke Control
The proximity switch is optional.
Specification
| Model | Power supply | Switching cap. | Output type |
|---|---|---|---|
| IFS287(IFM) | DC 10/30V | 100mA | NPN |

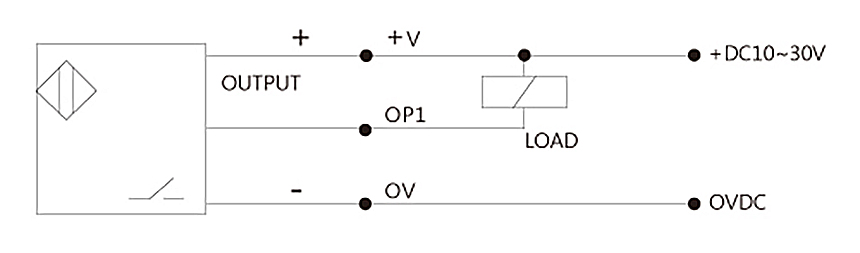

Terminal Connections
| Model | +V | OP1 | OV |
|---|---|---|---|
| IFS287(IFM) | BROWN | BLACK | BLUE |

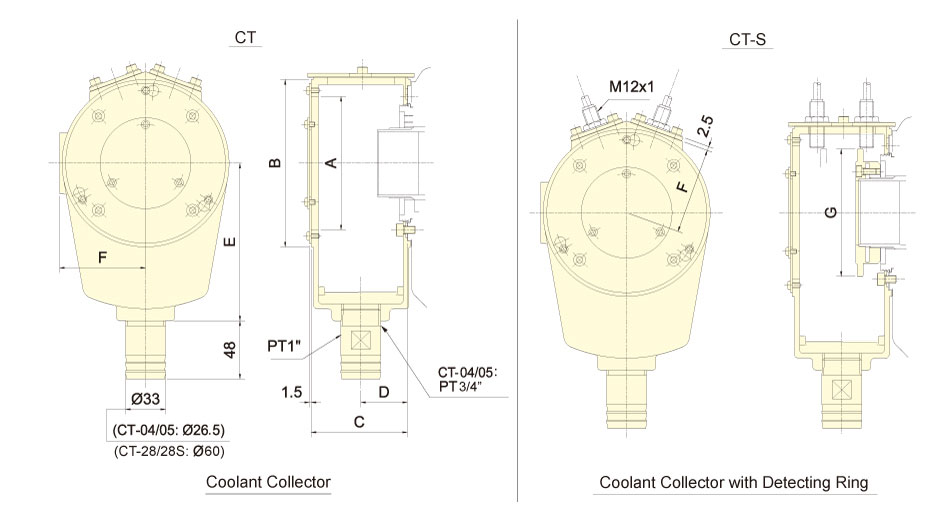

| Model | A | B | C | D | E | F | G | Weight (kgs) | Matching cyl. | |
|---|---|---|---|---|---|---|---|---|---|---|
| CT | CT-S | |||||||||
| CT-04/CT-04S | 87 | 110 | 60 | 29 | 110 | 57 | 79 | 0.9 | 1.1 | TH-428 |
| CT-05/CT-05S | 87 | 110 | 60 | 29 | 110 | 57 | 84 | 0.9 | 1.1 | TH-A536, TK-A528, TK-A533 |
| CT-06/CT-06S | 100 | 125 | 74 | 36 | 120 | 64.5 | 94 | 1.2 | 1.6 | TK-C643,TK-A646,TK-B646, TK-C646 |
| CT-08/CT-08S | 110 | 138 | 80 | 39 | 130 | 71 | 105 | 1.3 | 1.8 | TK-B846, TK-A853, TK-B853 |
| CT-K10/CT-K10S | 158 | 185 | 88 | 43 | 160 | 94.5 | 145 | 1.9 | 2.6 | TK-1068, TK-A1075, TK-A1078 |
| CT-12/CT-12S | 158 | 185 | 88 | 43 | 160 | 94.5 | 145 | 1.9 | 2.6 | TK-A1287, TK-A1291 |
| CT-15/CT-15S | 206 | 235 | 100 | 50 | 210 | 121 | 190 | 3.1 | 4.3 | TK-A1511, TK-A1512 |
| CT-21/CT-21S | 226 | 255 | 100 | 50 | 210 | 131 | 210 | 3.3 | 4.6 | TK-2114 |
| CT-24/CT-24S | 250 | 270 | 100 | 50 | 230 | 154 | 248 | 3.5 | 5.5 | TK-2416, TK-2416L |
| CT-28/CT-28S | 310 | 330 | 100 | 50 | 260 | 181 | 305 | 4.3 | 7.2 | TK-2820 |
