RV
Rotary Valve Hydraulic
RV
Hydraulic Rotary Valve
Rotary valve is used for clamping cylinder on rotary table.
Through unique design, it can make the rotary housing be rotated light force, and is free from oil leaking.

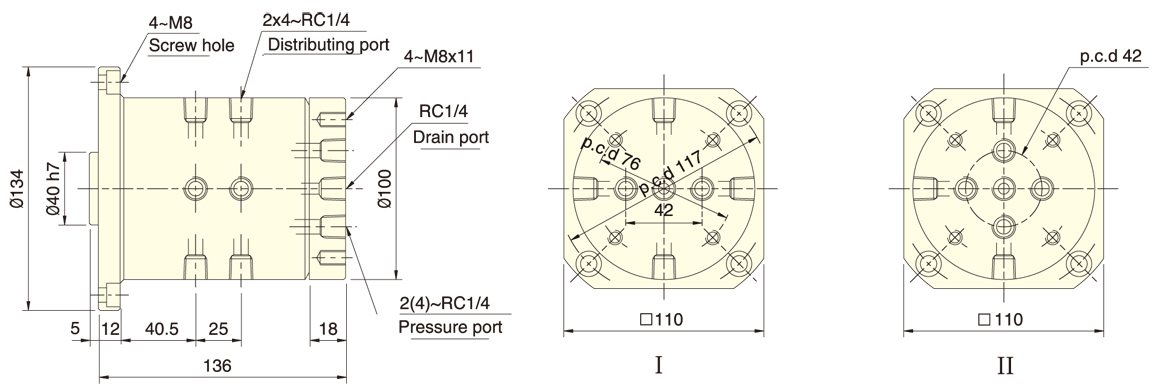

I Type is a single circuit which controls the clamping.
II Type is a double circuit which separately controls the clamping.
The drain port of RV type should be independently connected to oil tank to avoid back pressure.
Specification
Model | Distributing | Max. pressure MPa (kgf/cm2) |
Weight (kgs) |
---|---|---|---|
RV-31H | 4 (by order) | 4.0(40) | 7.4 |
