Air Cushion Type Suspension System
During washing, the air cushion is in exhaust condition. This enables external barrel rest on the base, and the internal barrel will thoroughly agitate to ensure the best washing effect. During dehydrating, the air cushion is filled with air and the extemal barrel is in floating condition. The air cushion absorbs vibration completely. Incase unbalance occurs, the machine will adjust balancing condition automatically.
Control System
The control system employs a touch-sensing screen, and provides 16 programs. Each program permits setting of 30 jobs. It also allows operator to set the desired washing programs according to types of clothes.
Tilting Function
The front tilt (20 °) function makes clothes easy to take out, increasing productivity while lowering operational costs.
Excellent Durability
The external barrel of the washing tank is a welding structure, machine service life is long.
Utility model patent：ZL201020160879.3 M392186

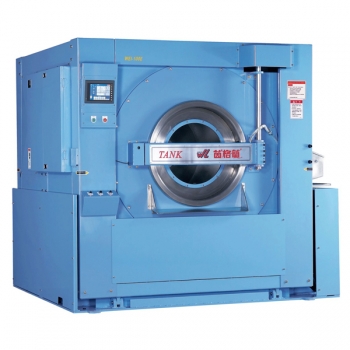

| Mode WEI-100E | |||||
| Loading(kg) | 100kg | Pipe diameters | Cold water | 2〞 | |
| Drum | Diameter(mm) | 1,290mm | Warm water(Option) | 2〞 | |
| Depth(mm) | 905mm | Steam | 1〞 | ||
| Capacity(Liter) | 1,182L | Rear water drain | 4〞 | ||
| R.P.M | Wash (rpm) | 20.25.30.35.40 rpm | Lower water drain | 6〞 | |
| Distribution(rpm) | 44.47.50 rpm | Exhaust pipe | 2 1/2〞 | ||
| Extract | Low speed 320 rpm High speed 640 rpm |
Air | 3/8〞 | ||
| Door dimension | ø808mm | Suspension system | 3 set of cushions+shock absorbers | ||
| Controlled by | Touch Panel | Tilt angle | Forward 20° | ||
| Motor capacity | 10.7 kw | Power supply | 3ph 220V/380V 50/60Hz | ||
| Required steam pressure | 7.0 kg/cm2 | Distributed electricity | 14mm2/8.0mm2 | ||
| Compressed air | 7.0 kg/cm2 | Maximum current | 35A/20A | ||
| Water supply | 1,757L | Breaker | 75A/40A | ||
| Essential water pressure | 1.0~2.8kg/cm2 | Dimension | 2365Wx2370Dx2170H | ||
| Net weight | 4,925kg | ||||
