Washing Machine
Dryer Series-ENA-100CA

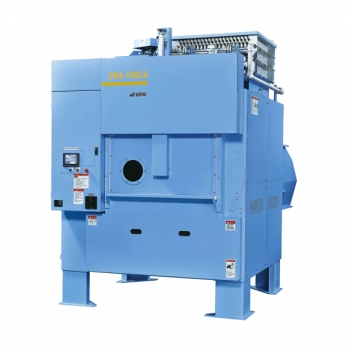

ENA-100CA

Multi-function Dry and Safety
‧ Clearly identified LED control panel provides setting of 15 drying strikes, allowing for accurate management of drying operation.
‧ With using advanced technology heater and unique designed blower, allowing for accurate mangement of drying operation.
‧ The inverter controls blower's starting and speed and automatic-checking intelligent blower rotation control system, when air exhausting has backpressure in checking, the rotation speed of blower would be automatic revised, won’t be controlled by air exhausting backpressure to influence the drying.
‧ Easily clean side cotton screen, big door diameter,clean easily.(can be drawn out from the rear side for clean)
12.7mm square holes, the opening percentage of the internal barrel reaches 64%, increasing ventilation efficiency, higher drying speed.
‧ Advection hot air design, let more hot air blow the linen, do not waste the hot air, effecting the drying time shortest.
‧ 6 agitating rods have a good agitating result, reduce bed sheet tangling or the rubs between bed sheet and internal barrel that lower the cotton wool and extend the linen lives.
‧ 1425mm large internal barrel permits linen fully unfolding for drying, with using rotation control of drum, preventing linen from unevenly drying or tangling.
‧ Unique drum operation control, preventing linen from crushing or tangling. If the bath towel has much water, the rotating speed will be low; if there is little water, the rotating speed will be fast. Half-drying bed sheet, quilt cover etc., the clockwise rotation is slow,counterclockwise rotation is fast.
‧ Can with output convey belt, save carrying time, improve working efficiency.

Utility model patent:ZL201020139193.6 ZL201130096991.5 M383584

Specification

  Mode                   ENA-100CA
Loading(kg) 100kg Total capacity 9.7kw
Distill speed 220kg/hr Pipe Steam 2〞
Steam consumption 400kg/hr Cooling water 1 1/2〞
Drum Diameter(mm) 1,425mm Air 3/8〞
Depth(mm) 1,708mm Required steam pressure 7.0 kg/cm2
Capacity(Liter) 2,722L Air consumption 35NL /Time
R.P.M clockwise 29rpm
counterclockwise 41rpm
Duct pipe ø600mm or 3,000cm2
Punch hole 12.7mm square Power supply 3ph 220V/380V 50/60Hz
Air flow 200m3/min Distributed electricity 14mm2/8mm2
Door dimension Front 1,100x500mm Maximum current 36A/22A
Rear ø1,337mm Breaker 75A/50A
Controlled by Touch Panel Dimension
Height size including 350mm shelves height
2075Wx2970Dx2905H
Motors Drum motor 2.2kw x 4P Drum motor 2,150kg
Blower 7.5kw x 4P The material inner container Baked paint
