Washing Machine

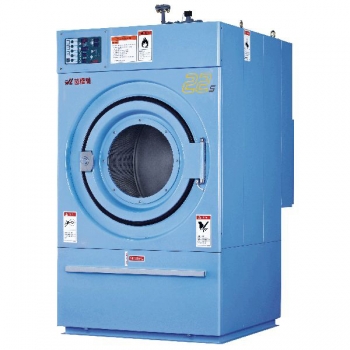

Dryer Series-ENA-15E
ENA-22S

Multi-function Dry and Safety
‧ Clockwise and counterclockwise rotation of the internal tub is computer controlled.This is combined with a frequency inverter control, providing 6-step speed of internal tub to reduce tangle of dry clothes.
‧ A humidity sensor is applied to monitor the dry condition and prevent clothes from shrinking.
‧ Equipped with 2 types if drying and cooling timers, allowing the machine to perform 2-step drying and cooling motions according to clothes types.
‧ Incase abnormal temperature occurs, a buzzer will sound for safety protection.
‧ The door is equipped with a safety switch.This prevents operator from damage caused by door opening when the machine is running .
Allows for 2-step processing.

Excellent Durability and Quietness
The steel plate of external housing is paint-baked and anti-rust treated. The internal barrel is manufactured from stainless steel with special structure design, featuring excellent durability. The machine exhibits significantly lower noise than competitive models.

Outstanding Operational Performance
The entire structure height is designed to meet ergonomics for convenient operation. Once you place clothes into the machine, simply select your desired drying mode and start the computer, then the machine will perform fully automatic operation.

Extra Large Capacity High Efficiency Drying
The over-sized internal barrel is suitable for drying lots of clothes. The interior of the machine is designed with turbulent type convention port, which is combined with the use of 4 agitating rods for ventilation and fast drying of clothes.

Specification

  Mode                   ENA-15E
Loading(kg) 15kg Total capacity 1.15kw
Drum Diameter(mm) 800mm Electric consumption 21 kw/hr
Depth(mm) 750mm Duct pipe ø200mm
Capacity(Liter) 377L Power supply 3ph 220V/380V 50/60Hz
R.P.M 38 rpm Distributed electricity 22mm2/14mm2
Punch hole ø6mm Maximum current 60A/35A
Air flow 25cm3/min Breaker 100A/75A
Door dimension Front ø560mm Dimension 920Wx1210Dx1860H
Rear * Net weight 390kg
Controlled by CS-168
Motors Drum motor 0.4kw × 6P
Blower 0.75kw × 4P
