Washing Machine

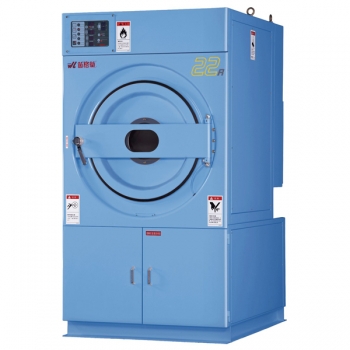

Recover Dryer Series-ENA-22R
ENA-22R
Semi-open type refrigerant reclamation enables highreclamation percentage, preventing pollution without public harm.
Micro-computer control combined with special sensor for temperature regulation minimizes gas explosion and danger while ensuring maximum safety.
Various errors will display on the screen automatically.
Once power is turned on, if there is no motion over 30 minutes, power will shut off automatically.
6 programs input capability. Washed clothes can be dried.
Heat energy from compressor is reclaimable for saving energy.
Low temperature drying is suitable for fine clothes.
No need to use cooling tower or chiller.
Specification
| Mode ENA-22R | |||||
| Loading(kg) | 22kg | Compressor | High pressure setting | 26 kg/cm2 | |
| Drum | Diameter(mm) | 800mm | Low pressure setting | 3.0 kg/cm2 | |
| Depth(mm) | 800mm | Controller to prevent frost | 95 ℃ | ||
| Capacity(Liter) | 402L | Low pressure processor | 5/8〞 | ||
| R.P.M | 35.36.37.38.39.40 rpm | Pipe | Steam | 1/2〞 | |
| Punch hole | ø6mm | Cooling water | 1/2〞 | ||
| Air flow | 25m3/min | Condensing temperature | 4℃ | ||
| Door dimension | Front | ø560mm | Steam pressure | 7.0 kg/cm2 | |
| Rear | * | Duct pipe | ø200mm | ||
| Controlled by | CS-168 | Suggest use of refrigerants | R22x1.5kg | ||
| Motors | Drum motor | 0.4kw x 6P | Power supply | 3ph 220V/380V 50/60Hz | |
| Blower | 0.75kw x 4P/2P | Operating circuit | 200V/220V | ||
| Refrigerator | 2.2kw | Distributed electricity | 2.0mm2/2.0mm2 | ||
| Total capacity | 3.35kw | Maximum current | 13A/10A | ||
| Breaker | 20A/20A | ||||
| Dimension | 1105Wx1835Dx2065H | ||||
| Net weight | 700kg | ||||
