  3. Worm Gear Speed Reducer
  4. Single-Stage Horizontal Worm-Gear Reducer
Worm Gear Speed Reducer
Single-Stage Horizontal Worm-Gear Reducer
K 系列

Specification

  • Product Description
NO MATERIAL
1 CASE
2 WORM WHEEL
3 WORM SHAFT
4 OUTPUT SHAFT
5 OUTPUT SHAFT COVER
6 INPUT SHAFT COVER
7 INPUT SHAFT COVER
8 INPUT BEARING
9 OUTPUT BEARING
10 OIL SEAL INPUT
11 OIL SEAL OUTPUT
12 OIL GAUGE
13 OIL PLUG
14 DRAIN PLUG
15 KEY FOR WHEEL
16 BOLT INPUT
17 BOLT OUTPUT
18 PAPER PACKING
19 SHIM



  • Product Specification



SIZE LL L N1 N2 N D1 D2 D3 D EE E G K
50 175 105 95 50 145 93 50 102 220 90 116 14 11
60 195 120 110 55 165 105 60 120 260 100 126 15 11
70 234 140 130 65 195 120 70 135 295 120 156 20 15
80 264 160 140 70 210 130 80 150 320 140 176 20 15
100 322 190 170 90 260 155 100 180 375 190 226 27 15
120 385 230 190 100 290 185 120 215 450 220 266 30 18
135 435 260 210 110 320 210 135 235 495 260 306 32 18
155 494 302 252 140 392 145 155 265 456 290 336 32 20
175 548 325 262 150 412 167 175 293 516 320 376 32 20



SIZE HP INPUT SHAFT OUTPUT SHAFT KG
1/10~1/30 1/40~1/60 SS S W X Y O P M Q R
50  1/4 1/8 30 26 12 4 13.5 40 35 17 5 19 8
60 1/2 1/4 40 35 15 5 17 50 45 22 7 25 9
70 1  1/2 40 35 18 5 20 60 55 28 7 31 14
80 2  1 50 45 22 7 25 65 60 32 10 35.5 19
100 3  2 50 45 25 7 28 75 70 38 10 41.5 40
120  5 3 65 60 30 7 33 85 80 45 12 48.5 58
135  7-1/2 5 75 70 35 10 38.5 95 90 55 15 60 87
155  10 7-1/2 85 80 40 10 43.5 110 105 60 15 65 107
175  15 10 85 80 45 12 48.5 110 105 65 18 71 147

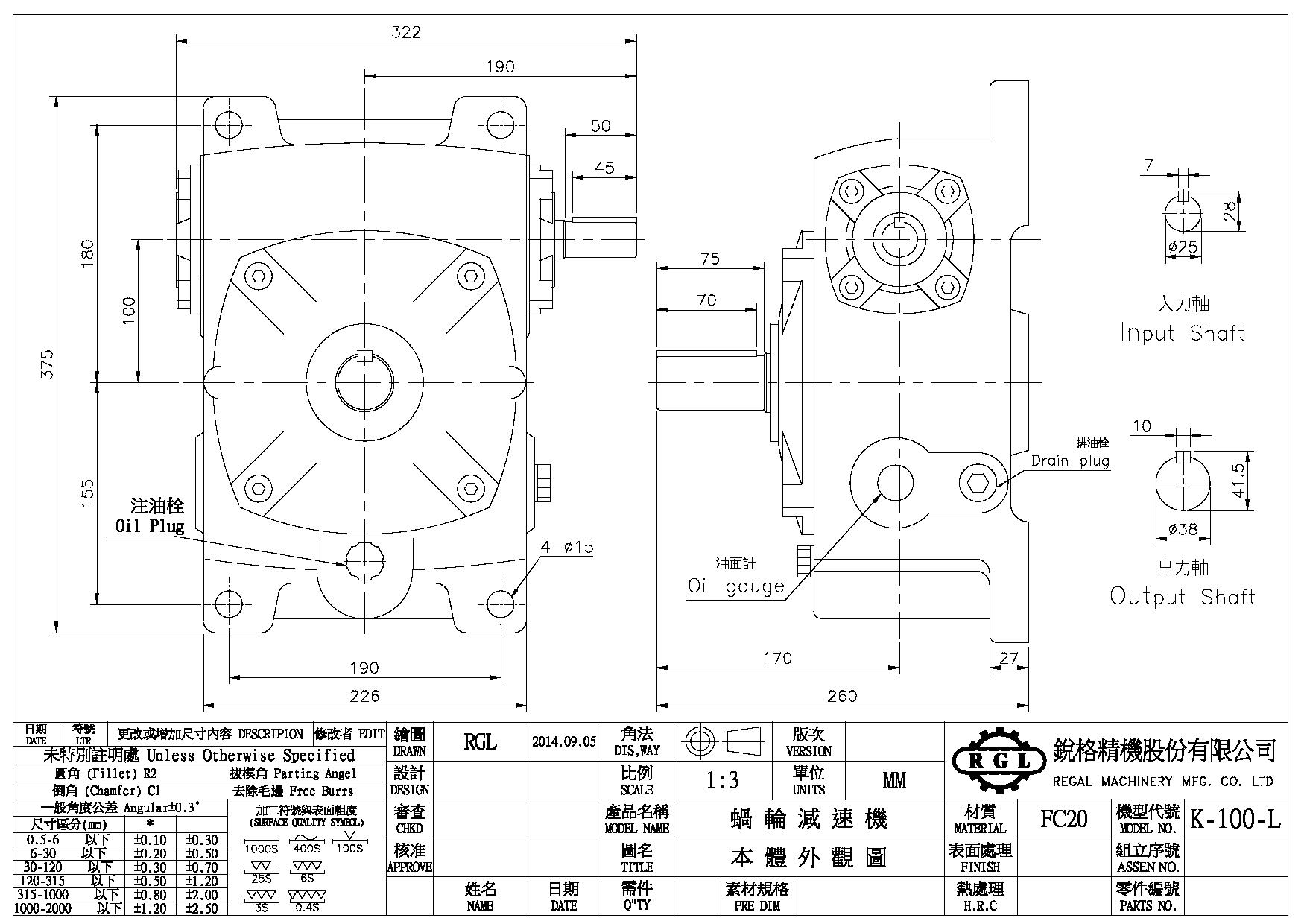

Shaft Arrangement and Rotation Direction
