Worm Gear Speed Reducer
Two-Stage Worm Gear Reducer (Worm-Gear)
BGFD 系列

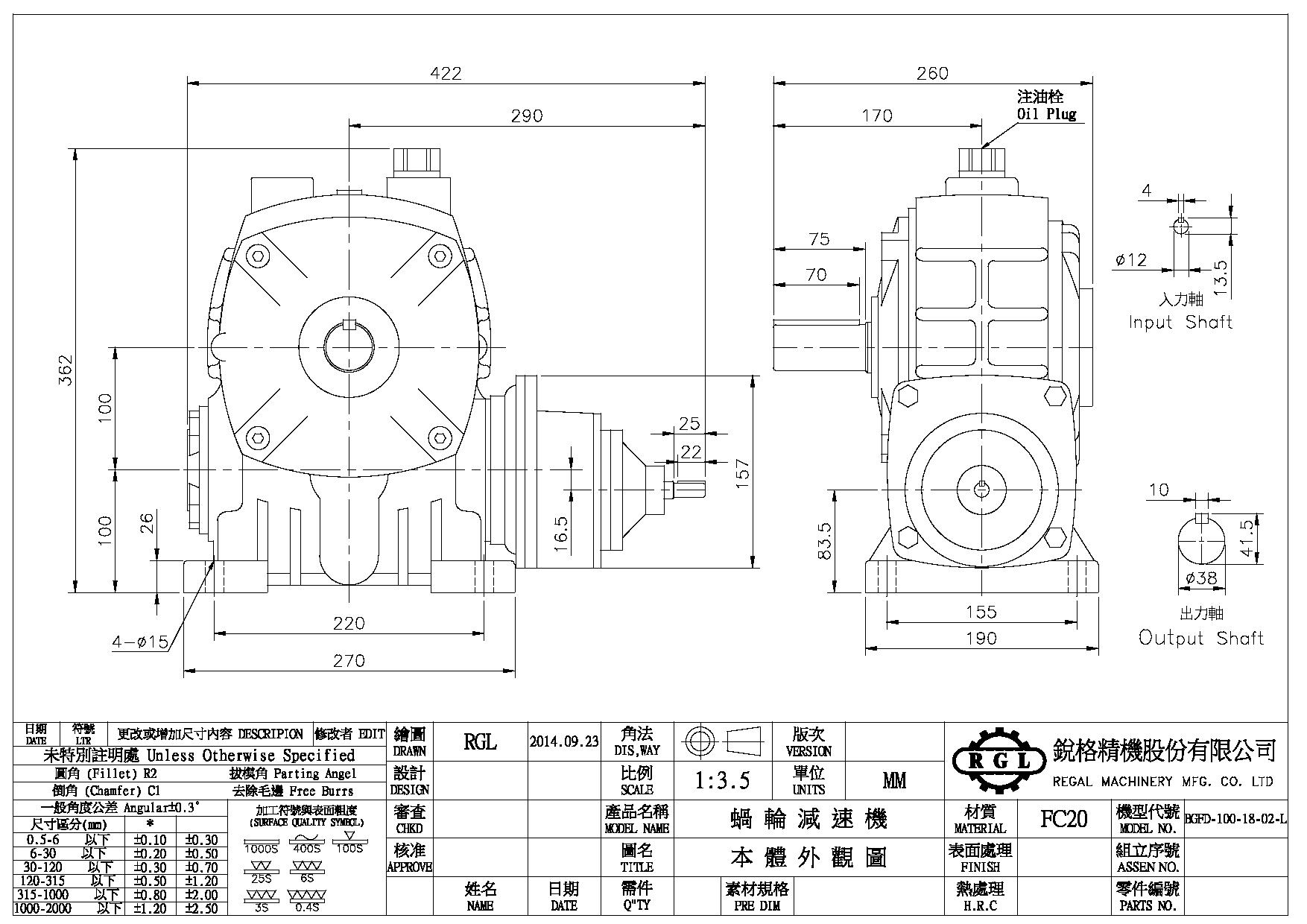

Specification

  • Product Specification
SIZE HP LL L NN N D1 D2 D C EE E II I K
70 42012 342.5 248.5 195 130 70 70 236 157 150 190 115 150 15
80 42008 363.5 259.5 210 140 80 80 265 157 180 220 135 170 15
100 42006 452 320 260 170 100 100 362 171.5 220 270 155 190 15
120 1 512.5 359.5 290 190 120 120 388 198.5 260 320 180 230 18
135 2 604 425 320 210 135 135 445 234 290 350 200 250 18
155 3 654 462 387 252 135 155 490 284 320 380 220 280 20



SIZE INPUT SHAFT OUTPUT SHAFT
SS S W X Y O P M Q R
70 25 22 12 4 13.5 60 55 28 7 21
80 25 22 12 4 13.5 65 60 32 10 33.5
100 30 27 15 5 17 75 70 38 10 41.5
120 35 32 20 6 22.5 85 80 45 12 48.5
135 40 35 25 8 28 95 90 55 15 55
155 45 40 30 8 33 110 105 60 15 65

  Shaft Arrangement and Rotation Direction
