Specification
- Product Specification

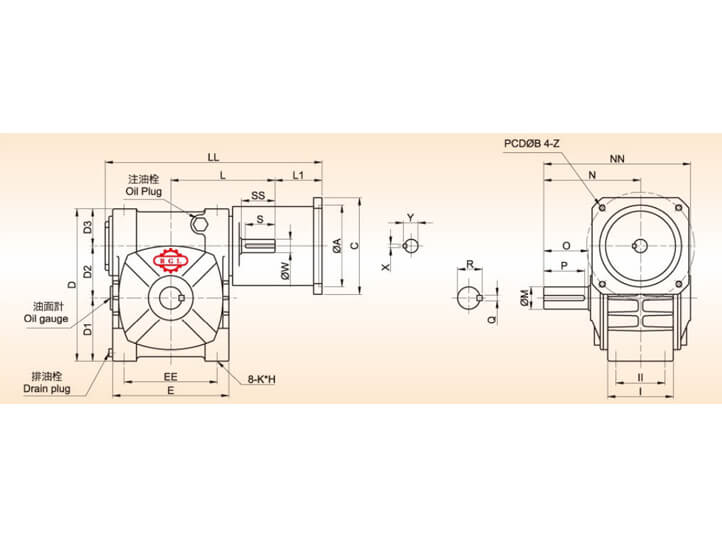

| SIZE | LL | L | L1 | NN | N | D1 | D2 | D3 | D | EE | E | II | I | K*H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 250 | 115 | 60 | 164 | 110 | 75 | 60 | 42 | 177 | 100 | 126 | 55 | 77 | M10*20 |
| 70 | 299 | 135 | 70 | 193 | 130 | 85 | 70 | 50 | 205 | 125 | 155 | 65 | 87 | M10*20 |
| 80 | 319 | 150 | 65 | 210 | 140 | 92 | 80 | 60 | 232 | 145 | 174 | 75 | 98 | M10*20 |
| 100 | 407 | 180 | 95 | 260 | 170 | 115 | 100 | 75 | 290 | 185 | 226 | 85 | 117 | M12*24 |
| SIZE | KW | MOTOR FLANGE | INPUT SHAFT | OUTPUT SHAFT | KG | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/10~1/30 | 1/40~1/60 | A | B | C | Z | SS | S | W | X | Y | O | P | M | Q | R | ||
| 60 | 0.5 | 0.5 | 110 | 145 | 130 | M8 | 35 | 30 | 16 | 5 | 18 | 50 | 45 | 22 | 7 | 25 | 10 |
| 70 | 1 | 0.5 | 110 | 145 | 130 | M8 | 40 | 35 | 22 | 5 | 25 | 60 | 55 | 28 | 7 | 31 | 17 |
| 80 | 1.5 | 1 | 110 | 145 | 130 | M8 | 45 | 40 | 26 | 7 | 29 | 65 | 60 | 32 | 10 | 35.5 | 22 |
| 100 | 3 | 2 | 114.3 | 200 | 176 | M12 | 50 | 45 | 32 | 7 | 35.5 | 75 | 70 | 38 | 10 | 41.5 | 38 |
| SIZE | PRM | STANDARD BLACKLASH | PRECISION BLACKLASH |
|---|---|---|---|
| 60 | 3000 ~ 6000 | < 15 | < 3 |
| 70 | 3000 ~ 6000 | < 15 | < 3 |
| 80 | 3000 ~ 6000 | < 15 | < 3 |
| 100 | 2000 ~ 4000 | < 20 | < 4 |
Note︰
- The worm shaft and output shaft for this series are manufactured from SNCM21 material and carburization heat treated. The worm gear is manufactured from Japanese material AIBC2.
- The double lead worm shaft features high torque output, rigidity, low noise, low vibration and low backlash(0~0.02°). Easy to adjust backlash and extra long service life. Ideal for high precision transmission and indexing, positioning and sizing applications such as: the fourth axis on machine tools, rotary tables, indexing tables, robot positioning and sizing applications for industrial machinery.
- Standard worm gear reducer and worm gear set.
﹡Distance between centers︰ 60-100mm
﹡Motor︰0.5-3kw
﹡Speed reduction ratio︰10-60 - Please send us drawings for custom specifications.
Shaft Arrangement and Rotation Direction
