Worm Gear Speed Reducer
Two-Stage Worm Gear Reducer
BD 系列

Specification

  • Product Specification

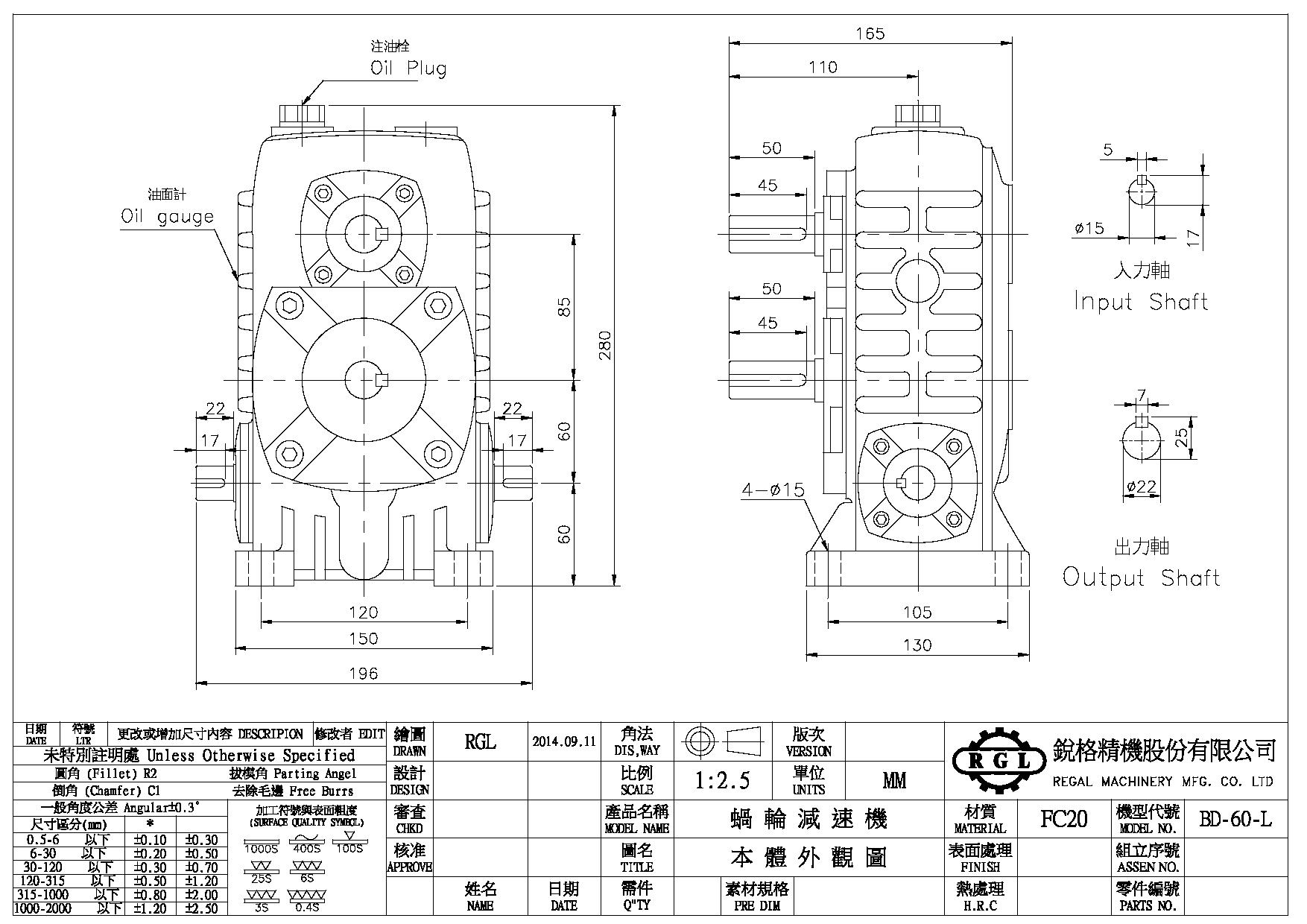

SIZE LL NN N D1 D2 D3 D EE E II I J K
60 196 165 110 60 60 85 280 105 130 120 150 20 15
70 256 185 118 70 70 105 335 115 150 150 190 24 15
80 295 195 125 80 120 116 390 135 170 180 220 24 15
90 476 290 160 90 100 140 460 220 251 170 224 24 16
100 410 226 166 86 104 154 530 180 200 230 290 26 18
120 480 272 185 120 120 200 608 180 320 260 320 30 18
135 560 320 225 135 135 250 685 200 250 290 350 30 18
155 534 387 252 155 135 250 742 220 280 320 380 32 20



SIZE HP INPUT SHAFT OUTPUT SHAFT KG
1/10~1/30 1/40~1/60 SS S W X Y O P M Q R
60 1/2 1/4 22 17 20 5 22 50 45 22 7 25 15
70 1 1/2 40 35 22 7 25 45 40 26 8 29.5 30
80 2 1 40 28 30 7 33 50 45 32 10 35.5 38
90 3 2 74 70 40 10 43.5 60 55 50 12 53.5 60
100 3 2 54 50 35 10 38.5 50 45 45 12 48.5 69
120 5 3 55 50 35 10 38.5 85 65 50 15 54.5 80
135 7-1/2 5 95 90 40 10 43.5 95 90 60 15 64.5 141
155 10 7-1/2 50 45 40 10 43.5 110 105 60 15 64.5 180

  Shaft Arrangement and Rotation Direction
