Specification

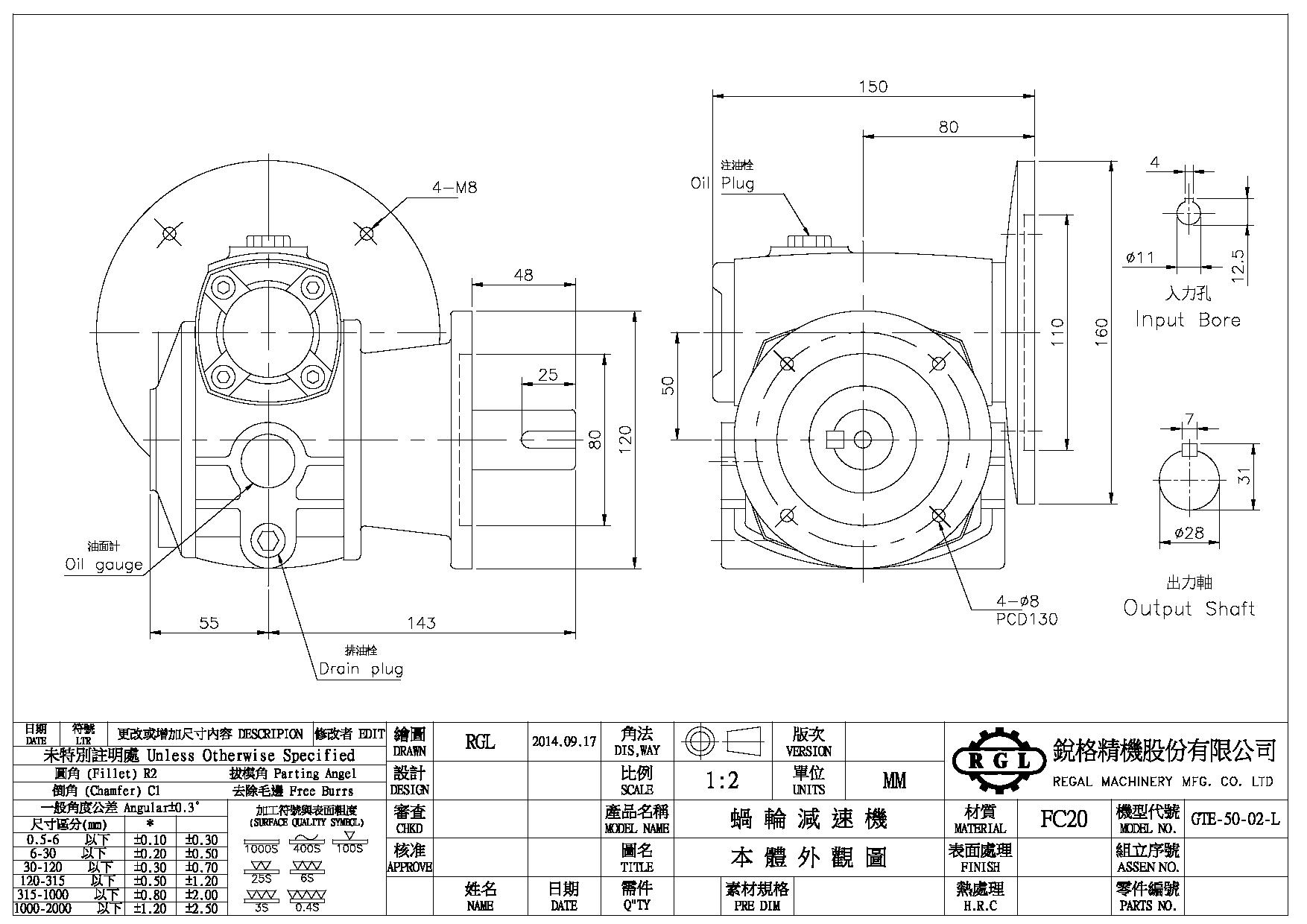

- Product Specification
SIZE | LL | L | N1 | N | D | J | H | F | K |
---|---|---|---|---|---|---|---|---|---|
50 | 150 | 80 | 55 | 143 | 50 | 120 | 100 | 80 | 8 |
60 | 175 | 92 | 60 | 149 | 60 | 158 | 130 | 110 | 13 |
70 | 197 | 103 | 65 | 187 | 70 | 185 | 165 | 140 | 13 |
SIZE | HP | INPUT BORE | OUTPUT SHAFT | KG | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/10~1/30 | 1/40~1/60 | A | B | C | Z | W | X | Y | O | P | M | Q | R | ||
50 | 1/2 | 1/4 | 110 | 130 | 160 | M8 | 11 | 4 | 16 | 28 | 25 | 28 | 7 | 31 | 10 |
60 | 1 | 1/2 | 110 130 |
130 165 |
160 200 |
M8 M10 |
14 19 |
5 6 |
16 21.5 |
35 | 30 | 28 | 7 | 31 | 15 |
70 | 2 | 1 | 130 | 165 | 200 | M10 | 19 24 |
6 | 21.5 27 |
68 | 63 | 28 | 7 | 31 | 20 |
SIZE | OUTPUT FLANGE | J | H | F | K |
---|---|---|---|---|---|
60 | 1號法蘭 #1 FLANGE | 184 | 160 | 130 | 15 |
2號法蘭 #2 FLANGE | 158 | 130 | 110 | 14 | |
3號法蘭 #3 FLANGE | 121 | 100 | 80 | 9 |
Shaft Arrangement and Rotation Direction
