Solenoid Valves - WH／WE

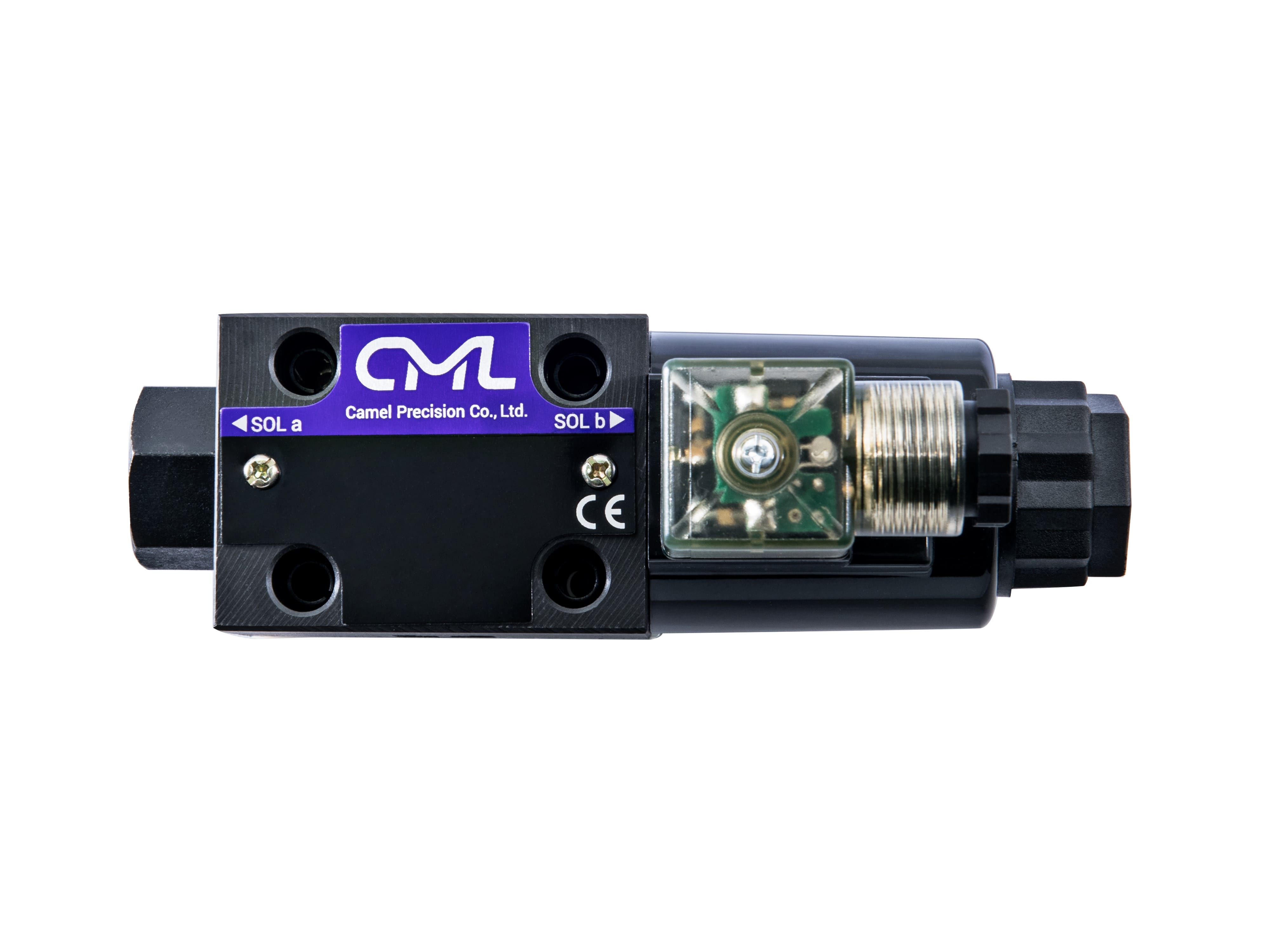

High Flow Type Solenoid Valve
WH G02
High pressure, large volume, low noise. Smooth switch over movement.
Duo orifice designed, low resistance, high efficiency.
Water & dust proof electric solenoid, high safety designed.
ISO standard measurements, high interchangeability, easy to install.
100% inspected, high & stable quality.
Specification
Conversion Table:
| MODEL | SIZE | ISO | CETOP | NFPA | DIN | |
| WE*-G03 | 3/4" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |
Specification
| WH | 42/43 | G02 | C2 | A220 | N | |||
| Product Series | Positions | Nominal Dia | Spool Type | Coil Voltage | Connection Type | |||
| High Flow Type Solenoid Valve | 4 Ways 2 Positions |
4 Ways 3 Positions |
G02: 1/4" (6mm) ISO: CETOP 3 DIN: NG 6 NFPA: D03 |
See Spool List | A 110 | AC100V 50Hz | N: DIN Connector Type | None: Wiring Box Type |
| AC110V 60Hz | ||||||||
| A 120 | AC110V 50Hz | |||||||
| AC120V 60Hz | ||||||||
| A 220 | AC200V 50Hz | |||||||
| AC220V 60Hz | ||||||||
| A 240 | AC220V 50Hz | |||||||
| AC240V 60Hz | ||||||||
| D 12 | DC 12V | |||||||
| D 24 | DC 24V | |||||||
View our website to search model code, technical data, performance curve and measurement
