Internal Gear Pump

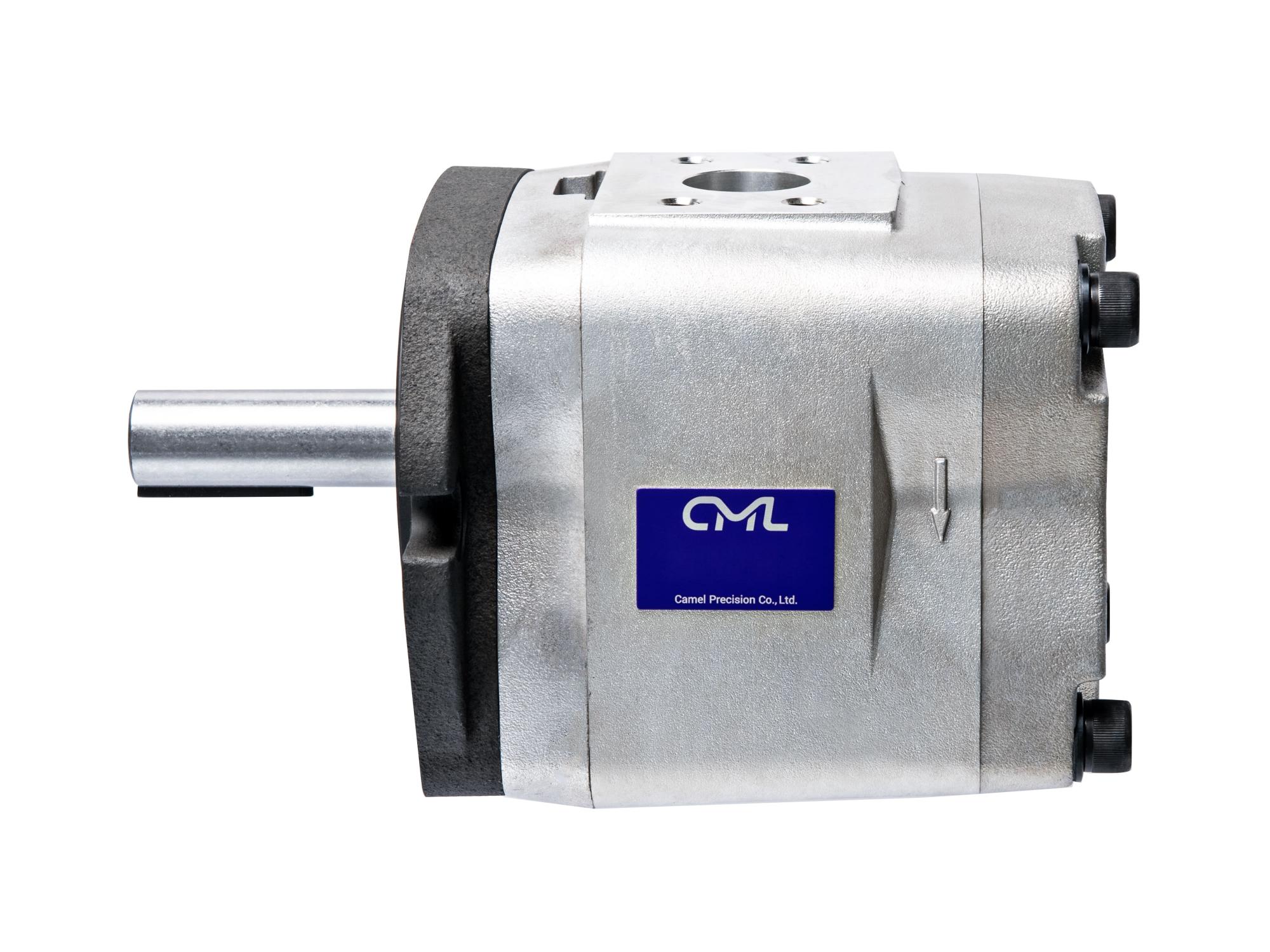

High Pressure Internal Gear Pump
IGH
High pressure output, 300 bar max.
Extremely low noise.
Smooth operation & low pulsation.
High overall efficiency from axial & radial pressure compensation.
Good suction power and extensive oil viscosity range.
Optional displacement from 3.5 to 64 c.c./rev.
Multi-connected pump combination available for manifold hydraulic circuit applications.
Application
Specification
Specification
Internal Gear Pump Series
| IGH | 4F | 32 | R | 20 | |
| Internal Gear Pump Series | Series No. | Shaft Spec | Displacement | Rotation Direction | Design No. |
| IGH High Pressure Internal Gear Pump | IGH-2 | F: ISO type E: DIN type |
3.5 c.c. - 8 c.c. | R: Clockwise L: Counterclockwise |
- |
| IGH-3 | 10 c.c. - 16 c.c. | ||||
| IGH-4 | 20 c.c. - 32 c.c. | ||||
| IGH-5 | 40 c.c. - 64 c.c. | ||||
* View form shaft end.
Multiple Internal Gear Pump Series
| FRONT PUMP SERIES | REAR PUMP SERIES | ||||||||
| IGH | 4E | 32 | IGP | 4S | 32 | R | |||
| Internal Gear Pump Series | Series No. | Shaft Spec | Displacement Of Shaft End Pump (C.C./Rev) | Internal Gear Pump Series | Series No. | S | Displacement Of Rear Pump (C.C/Rev) | L: Counterclockwise | |
| IGH Hight Pressure Internal Gear Pump | IGH-2 | E: DIN type | 3.5 c.c. - 8 c.c. | IGH | IGH-2 | S: Secondary / Rear pump | 3.5 c.c. - 8 c.c. | R: Clockwise L: Counterclockwise |
|
| IGH-3 | 10 c.c. - 16 c.c. | IGH-3 | 10 c.c. - 16 c.c. | ||||||
| IGH-4 | 20 c.c. - 32 c.c. | IGH-4 | 20 c.c. - 32 c.c. | ||||||
| IGH-5 | 40 c.c. - 64 c.c. | IGH-5 | 40 c.c. - 64 c.c. | ||||||
View form shaft end.
View our website to search model code, technical data, performance curve and measurement
