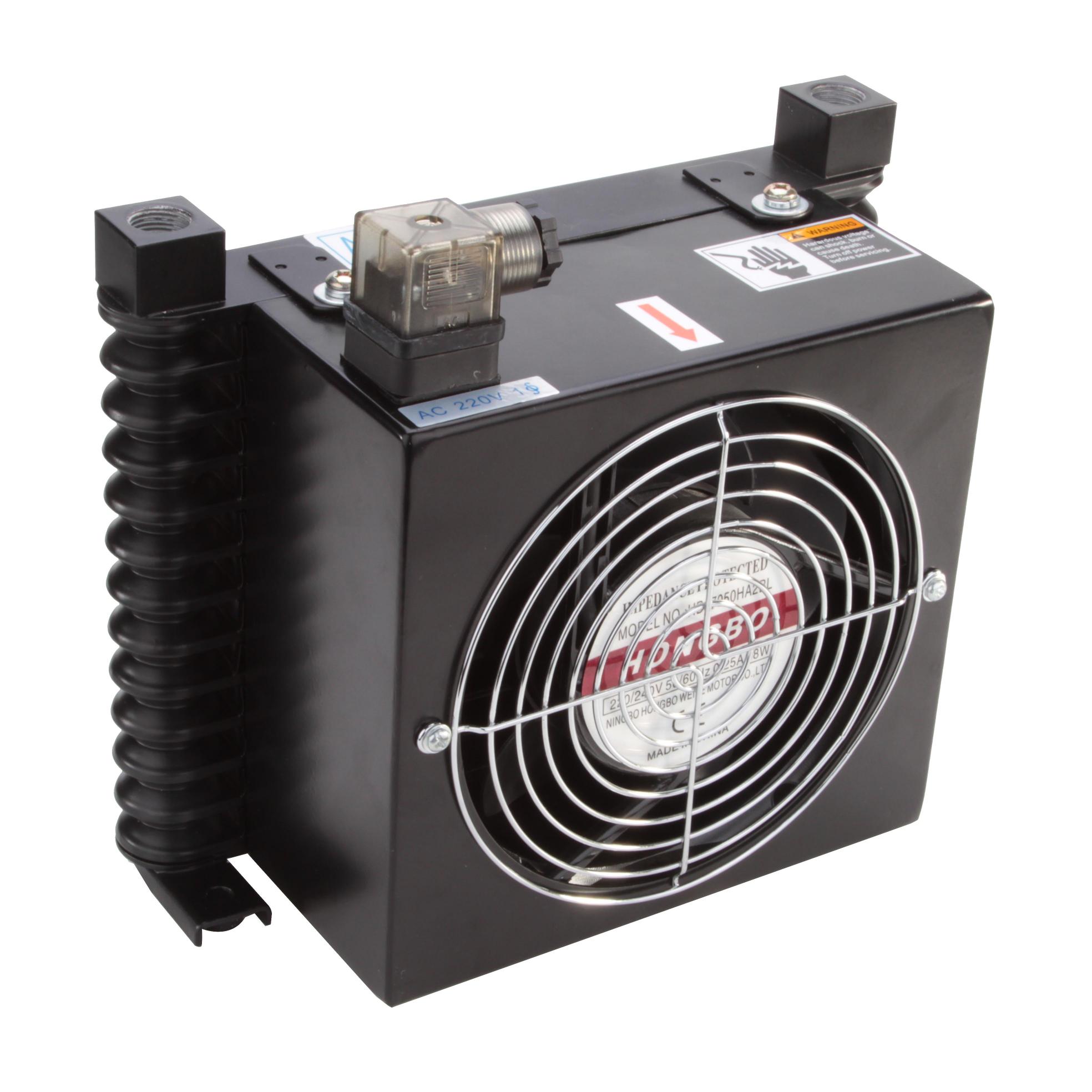

Air Cooled Radiator
Medium & Low-Pressure Air-Cooled Coolers
AF、AL
Compact structure, lightweight, excellent heat exchange efficiency
Extend hydraulic system/components’ lifetime
Save the cost of hydraulic fluid
Improve the mobility of hydraulic system and extend its working time
Reduce the frequency of repairs and failures due to parts abrasion
Make machine operation efficiently and create high-quality machining conditions
Specification
| AL | 404 | T | C | A | 2 | 3 |
| Model | Frame code | Design no. | Metal Case cover | Fan Voltage | Inlet/Outlet | |
| AC | 2: 220 3: 380 |
3: 3/8" | ||||
| 4: 1/2" | ||||||
| NONE/T:w/O Or W/One Fan LT :Dual Fan |
C: W/Case None: W/O Case |
DC | 1: 12 2: 24 |
|||
| AF | 510 | T | C | A | 2 | 4 |
| AL | 404 | T | C | A | 2 | 4 |
| AL | 608 | T | C | A | 2 | 3 |
| MODEL | INLET/OUTLET PT |
MAX. LPM |
WORKING PRESSURE BAR |
WIRING TYPE | REPLACEABLE MODELS |
| AF-0510T-CA2 | 1/2" | 10 | 12 | Socket | |
| AL404T-CA2 | 1/2" | 10 | 10 | Socket | AL608-CA2, AL404-CA2, AW407-CA2, TL1-20-3(4)T6, RT217S-3(4)T6A2 |
| AL608T-CA2 | 3/8" | 10 | 10 | Socket |
View our website to search model code, technical data, performance curve and measurement
