Key Features

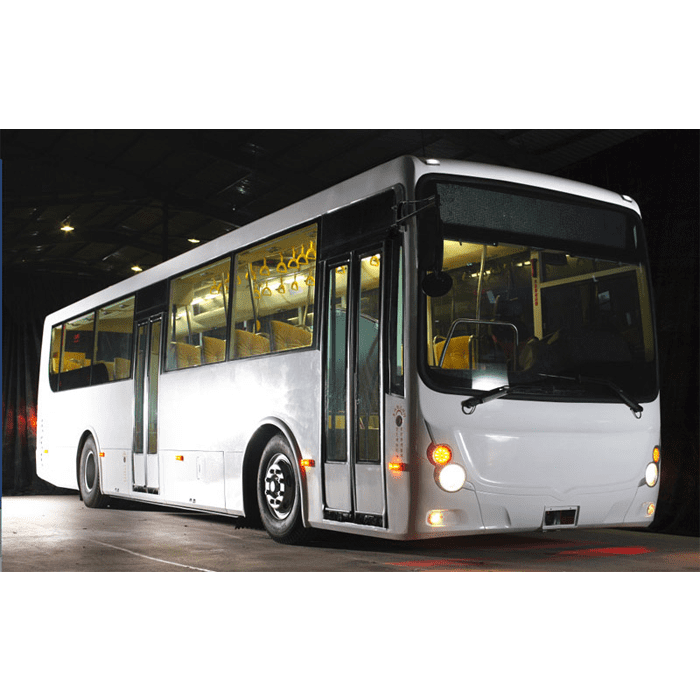

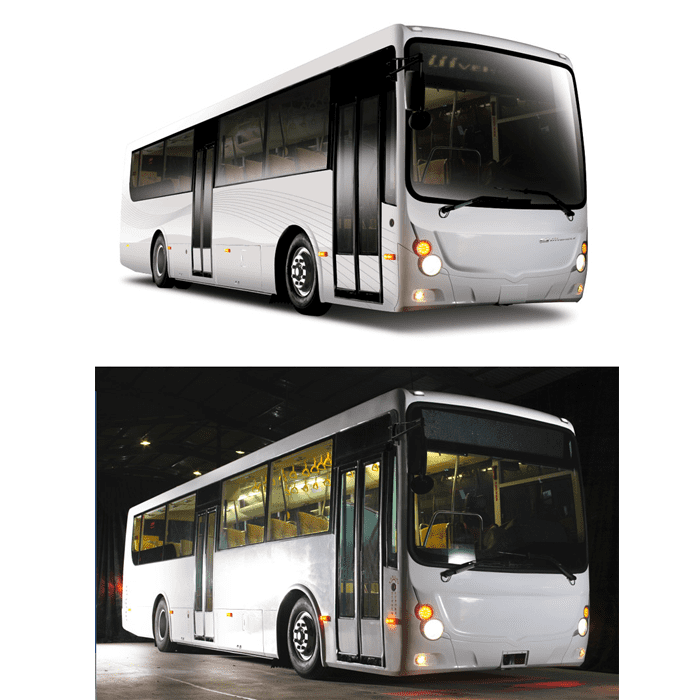

Conventional urban (city) bus / 12 m
Model : RENEE-i
Vehicle types:conventional city bus-City bus
Model number: BHN12TA-1
Chassis brand / model: HINO / RK8JRSA
Body size
Overall length: 11,653 mm
Overal width: 2,495 mm
Overall height: 3,124 mm
Wheelbase: 5,800 mm
Front suspension length : 2,452 mm
Rear suspension length :
3,401 mm rear
Axle track: (front / rear) 2,040 / 1,840
Approach / departure angle: 6 ° / 7 °
Weight (ARTC measured data)
Total weight: 14,500 kg
Chassis weight: 4,656 kg
Vehicle empty weight: 9,860 kg
Front axle weight: 3,080 kg
Rear axle weight: 6,780 kg
Carrying capacity : 4,640 kg
Main body configuration
Number of seats: 29
Number of standing : 35
Door: a pair of bi-fold doors at front and middle
Windshield :, laminated safety glass bonded in to the window frame.
Side windows:toughened glass and laminated safety glass bonded in to the window frame.
Rear window: laminated safety glass.
Mirrors: Manual adjustable
Air-conditioning system: SPAC_AC262 split type (Brand: sin shu che
Chassis basic parameters
Frame: straight girder type
Maximum power: 171.5kw (the 233PS) @ 2500RPM
Maximum speed: 95km / h
Maximum climbing capacity : 37.5
Minimum turning radius: 8,900 mm
Maximum braking distance: X
Transmission: manual, five-speed+reverse gearbox
Reduction ratio: 5.125
Suspension system: Equal length of steel spring, attached double acting shock absorbers and levelling bar
Tires and rims :10.00-20-14PR / 20x7.00T-offset 162 mm
Brake : double-loop, full pneumatic braking with brake automatic adjuster
Electrical system
Fuel tank capacity: 250L
Voltage: 24 V
Battery: 12V-540kC (150A? H) x 2 pics
Generator: 24V-90A
Subordinate equipment:
LED route indicator
GPS LED display
On and off ticket Light box

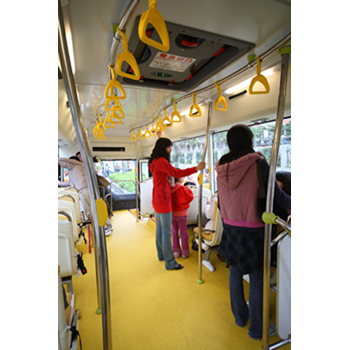

Pole / crossbar / pull ring
Armrest
Fence
Get off the bell
Seat
Fire extinguisher
Emergency hammer
Failure nameplate
Driving sunshade
Parking sensor
Turning and reversing buzzer
The CITY BUS standard-a broadcast system
Optional device:
Reversing Monitor
The side of the car monitor
Route indicator after the vehicle LED
