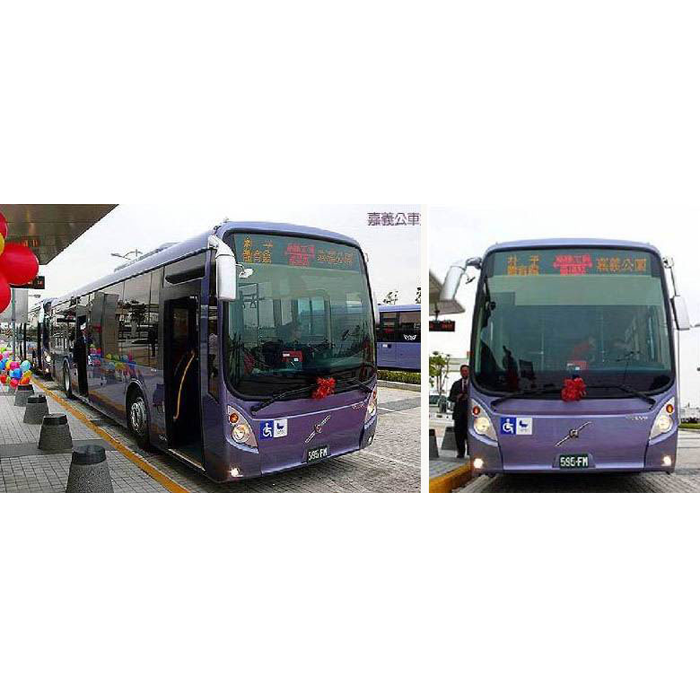

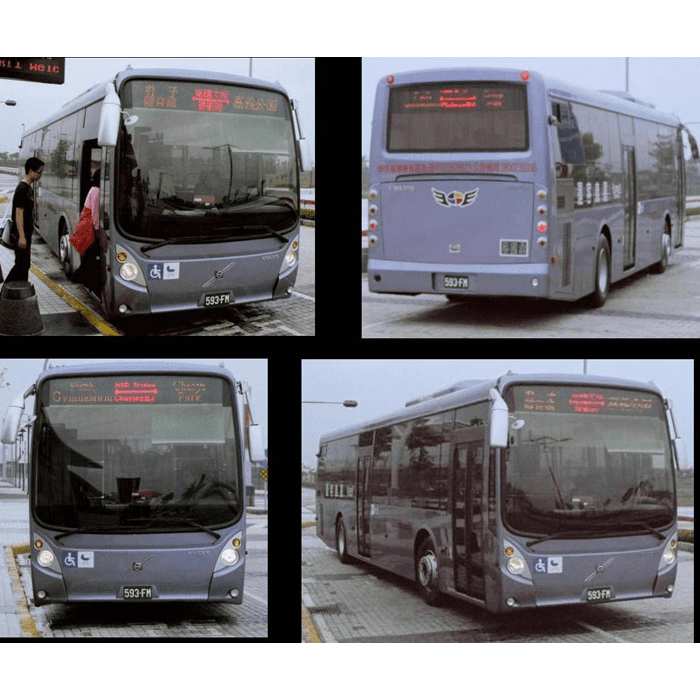

RUBY-E

Key Features

Low-Floor City Buses

Model name: RUBY-E, Barrier-Free Bus
Vehicle : Barrier-free city bus-City bus
Model number: BAA12EA-1
Chassis brand / model : IJI / D6123S05

Body size
Total length: 11,920 mm
Overall width: 2,495 mm
Overall height: 2,983 mm
Wheelbase: 5,950 mm
Front suspension length: 2,746 mm
Rear suspension length: 3,220 mm
Axle track: (front / rear) 2,096 / 1,836
Approach / departure angle: 6 ° / 7 °
A stepping ground: front door ≦ 350 mm, rear door ≦ 350 mm

Weight data
Maximum gross vehicle weight: 17,000 kg
Chassis weight: 5,010 kg

Main body configuration
Number of seats: 22
Standing number: 55
Door: a pair of bi-fold doors at front and rear
Windshield :,  laminated safety glass bonded in to the window frame.
Side windows:toughened glass and  laminated safety glass bonded in to the window frame.
Rear window:  laminated safety glass.
Mirrors: Manual adjustable
Air-conditioning system: SPAC_AC355 ceiling-mounted (Brand: sin shu che)

Chassis basic parameters
Frame: three-stage design, one step entrance
Maximum power: 194 kW (260 BHP) @ 2,000 RPM
Maximum speed: 80km / h
Maximum climbing capacity: 20
Minimum turning radius: 12m
Maximum braking distance: 10m
Automatic transmission: the ZF Ecomat 2_plus, 6HP502C
six-speed+reverse gearbox, integrated electronic control hydraulic retarder
Reduction ratio: 6.2
Suspension system: Wabco
electronically controlled pneumatic suspension control system
Tires and rims: 275/70 R22.5 "and 22.5" x 8.25 "(standard)
Braking System: Wabco pneumatic braking system

Electrical system
Fuel tank capacity: 185L
Voltage: 24 V
Battery: 2 x 12V/190 Ah
Generator: Prestolite AC172RA, 140 A/24 V

Subordinate equipment:
LED route indicator
GPS LED display
On and off ticket Lightbox
Pole / crossbar / pull ring
Armrest
Fence
Get off the bell
Seat
Fire extinguisher
Emergency hammer
Failure marked plate
Driving sunshade
Reversing radar
Turning and reversing buzzer
CITY BUS standard-a broadcast system
The exclusive accessibility District facilities
The slopes board (Ramp, Electric)

Optional device:
Reversing Monitor
The side of the car monitor
Rear route LED indicator
The slopes board (Ramp, electric)
