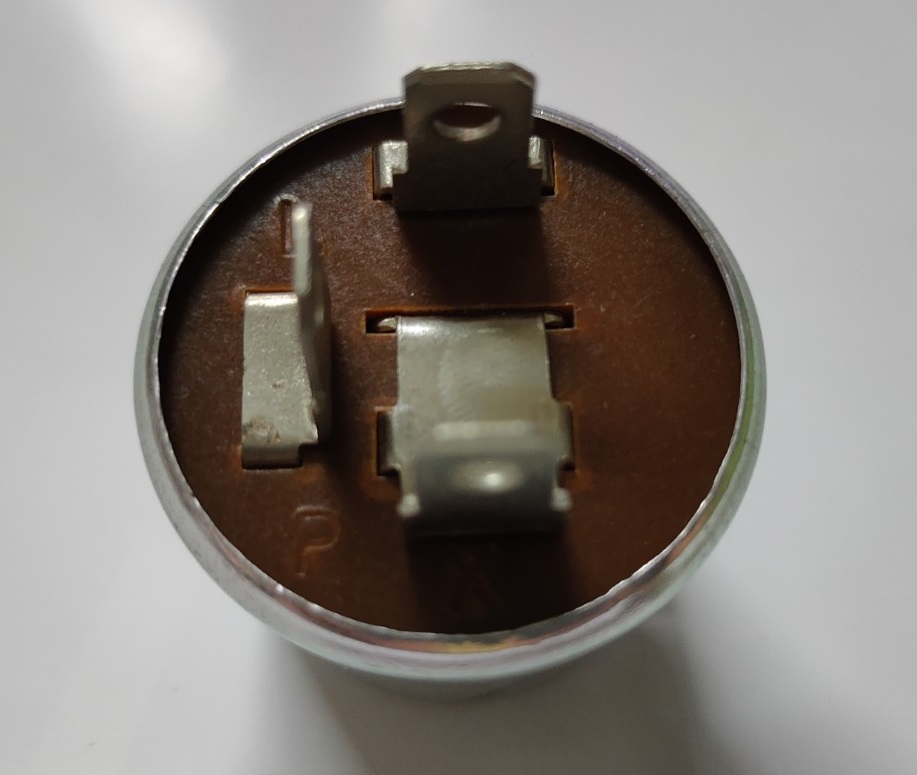

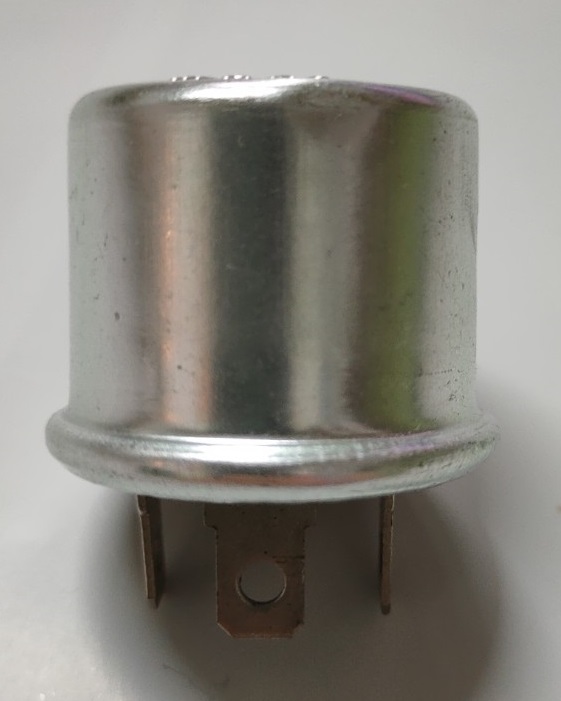

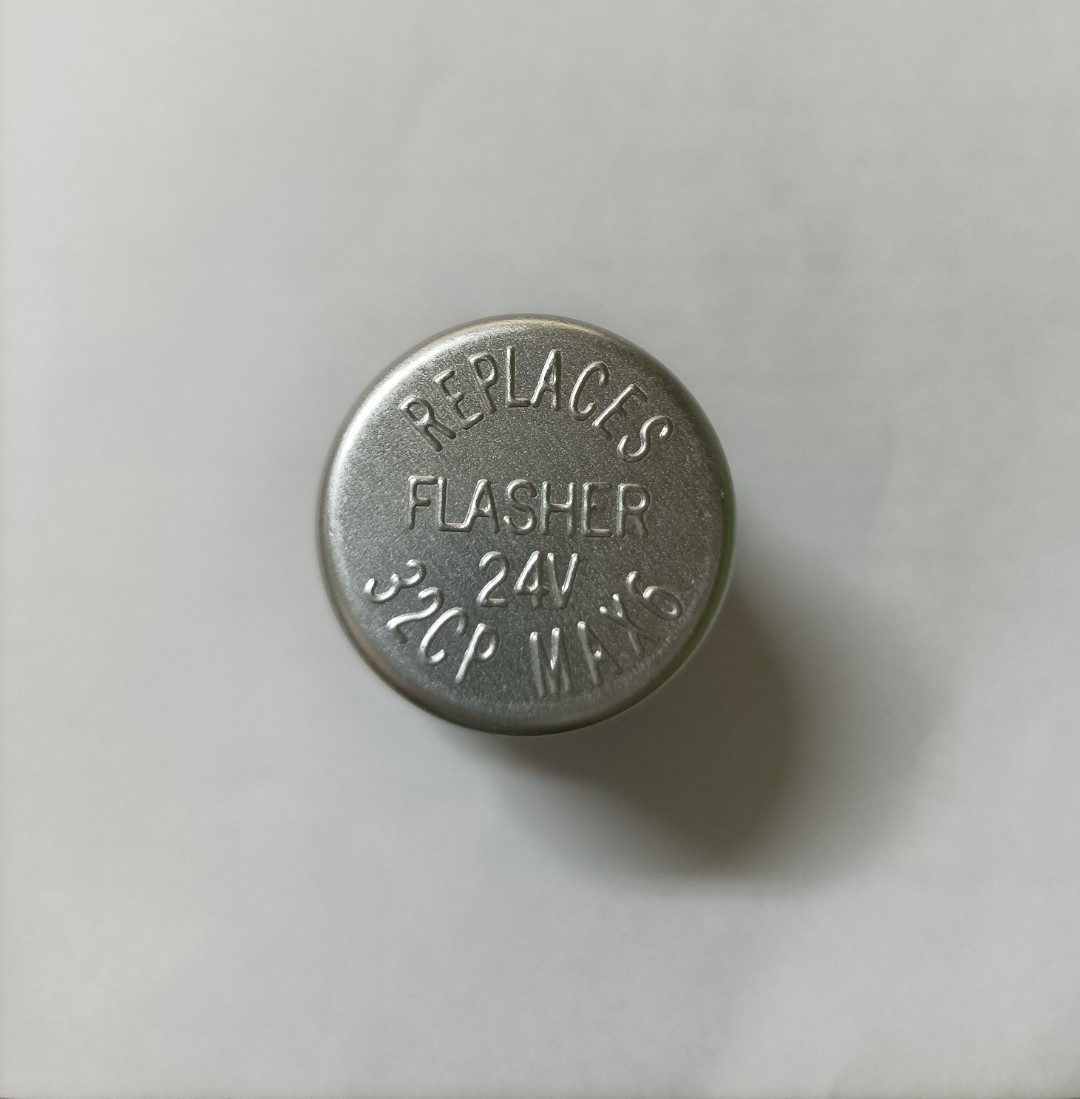

Thermo-Coupler Type Flasher
550S4
550S4
*Turn Signal Flasher Relay
*Thermo Type
*The base of flasher is Phenolic Resin Laminated Sheet
* Aluminum Housing ( Long & Short)
* Bulbs --> Incandescent
*It's flasher 550
Feature:
For Car & MotorcycleEach flasher is load tested after production and will work on all standard incandescent bulbs. Traditional 2 pin design with dedicated input and output.
Specification
** 24V/3P
** Short housing
** Temperature Operating Range : -10°F to 140°F
** Rated Voltage: 22 to 30 Volts DC
** Voltage Drop at Rated Current : 500mv
** Time to First Flash : Less than 1.5 Second
** Duty Cycle : 35% to 75%
