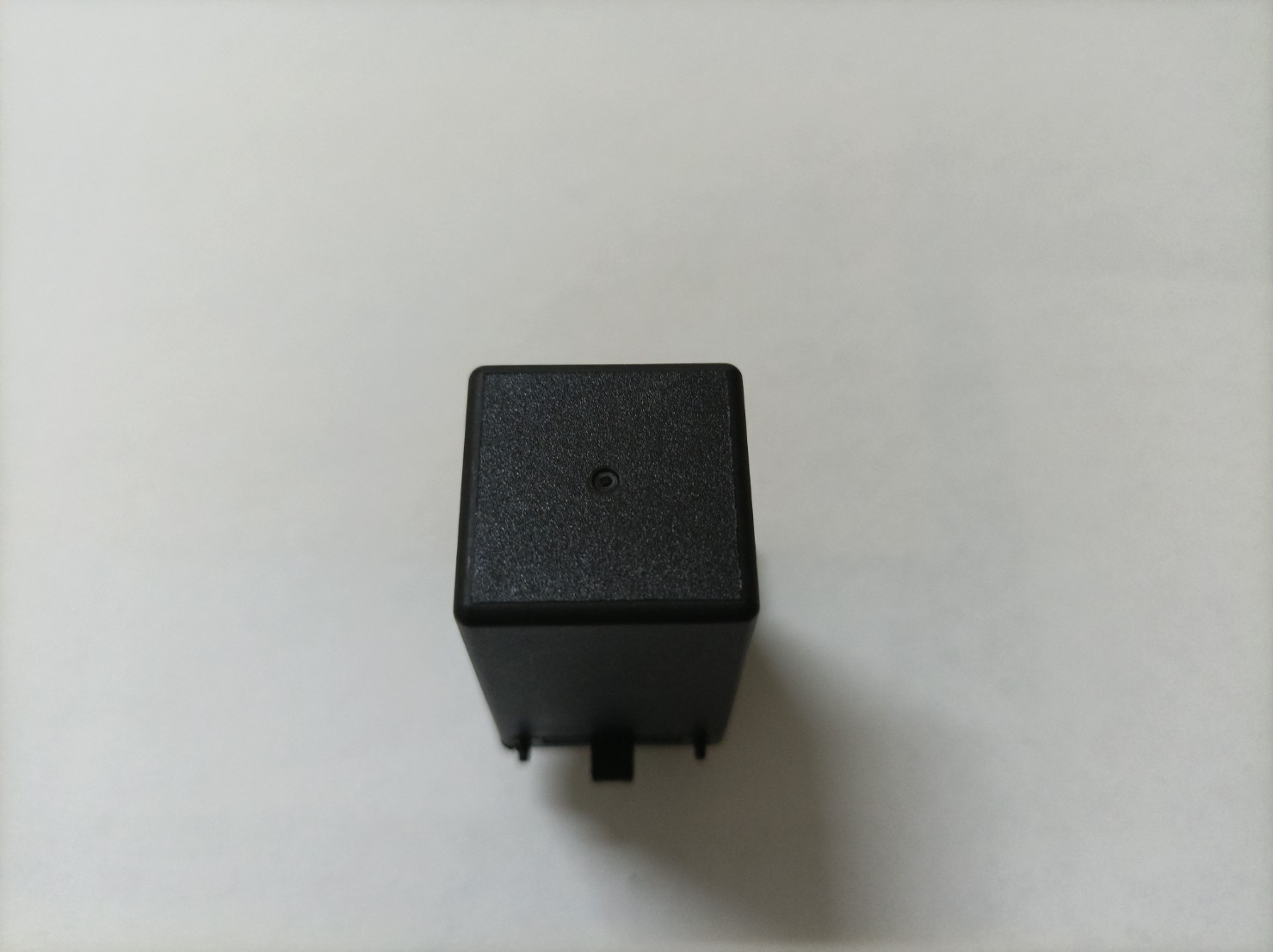

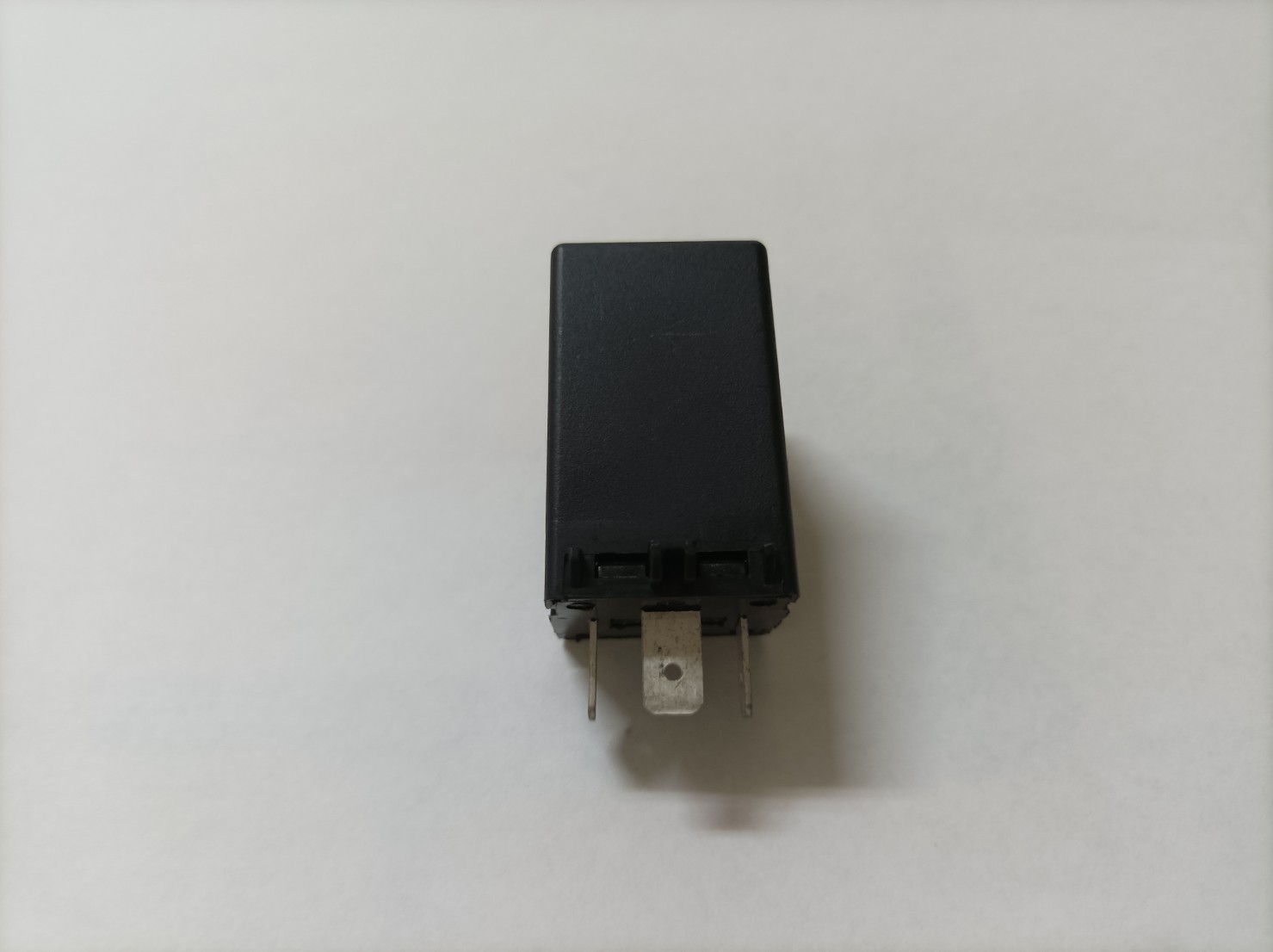

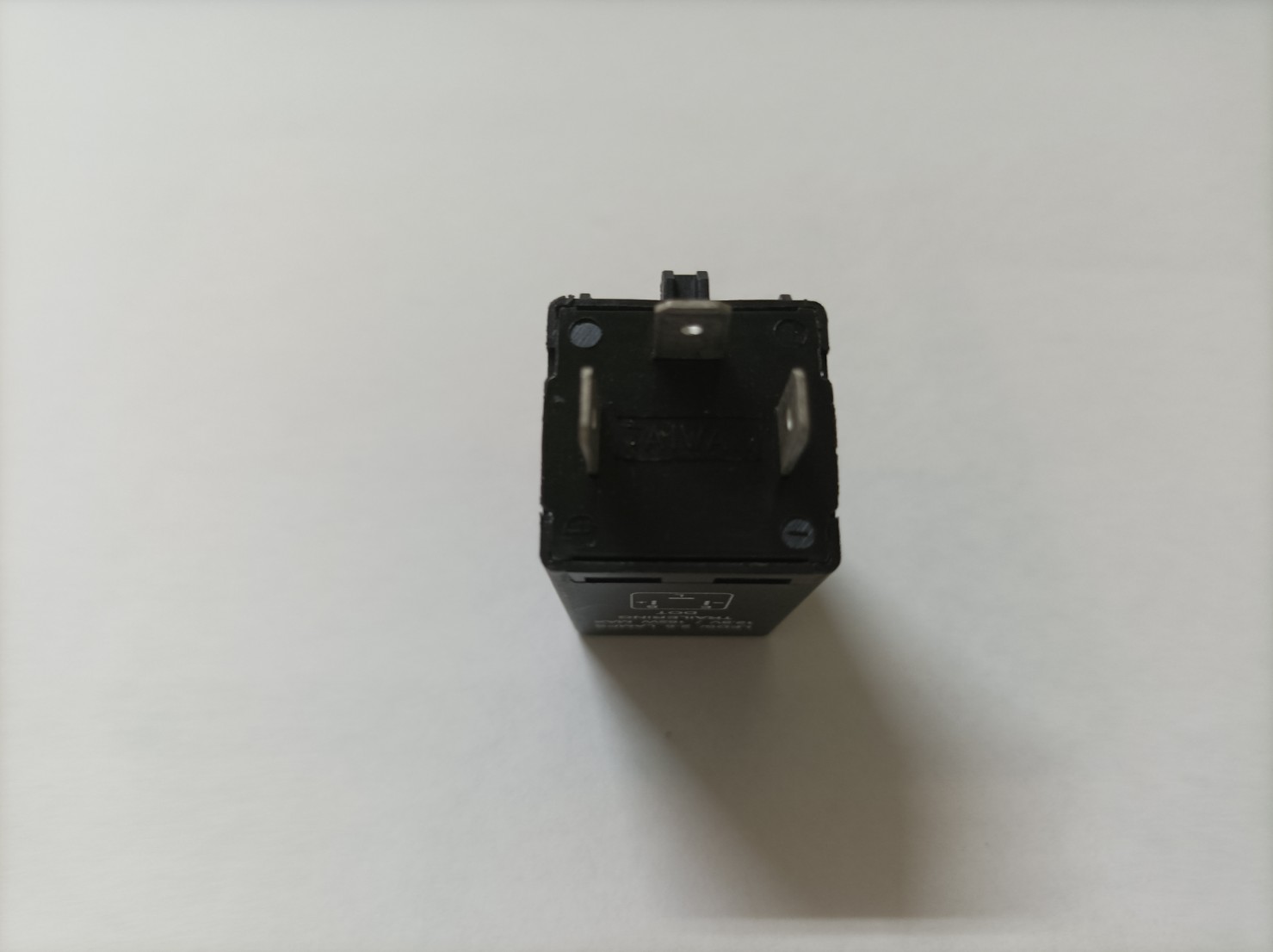

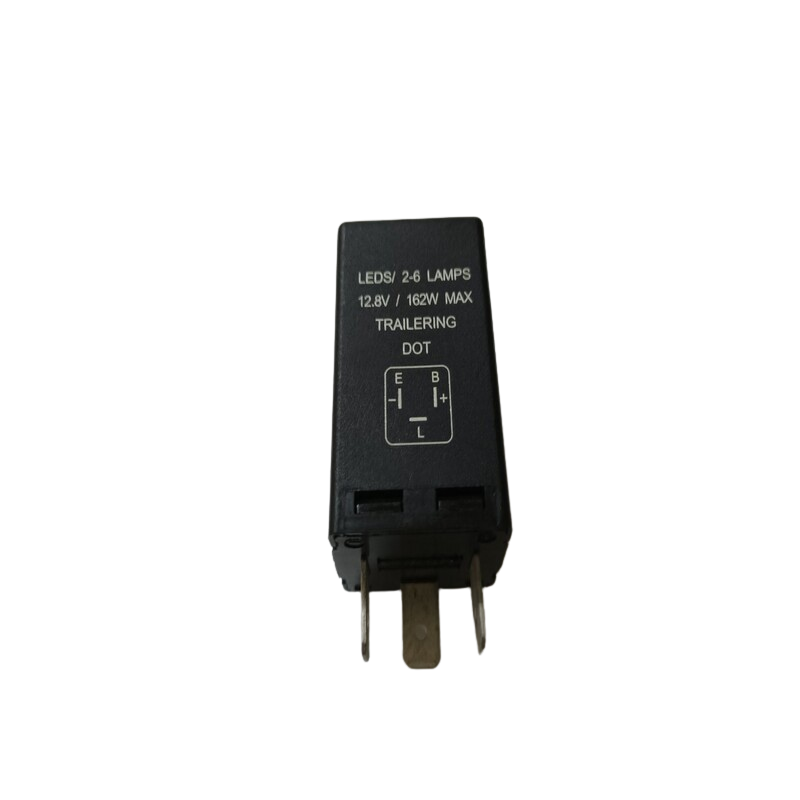

Electronic Flasher With bulb Failure Warning
EF34L
EF34L
When the blinker is normal, the flasher will flash 85 times per minute.
If the blinker bulb is burnt, the flashing speed will increase to 170 times per minute to remind the driver to change the blinker bulb for a new one.
If the driver is not aware of the bulb burnt, the car behind hime might make a wrong judgment, and causes an accident.
Specification
**12V 3P For LED
**Number Lamps: 2~4/25W Lamps (Max 6 Lamps)
** Time Flash : Less 1.5 Seconds
** Duty Cycle: 35% to 75%
** Voltage Drop at Rated Current : 500mv
** Rated Voltage: 11 to 15 Volts DC
** Temperature Operating Range : -25∘F to 140∘F
**Flash Rate Over Temperature Range: 60~120 Flash Per Minute
**Electrical Source: 15 Amps. Fused Circuit Recommended.
