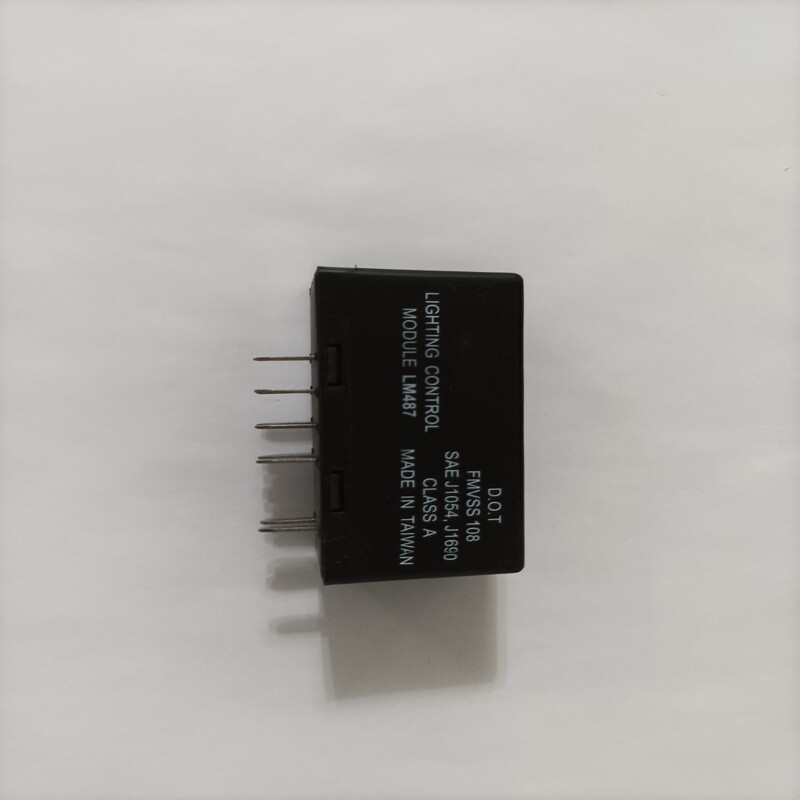

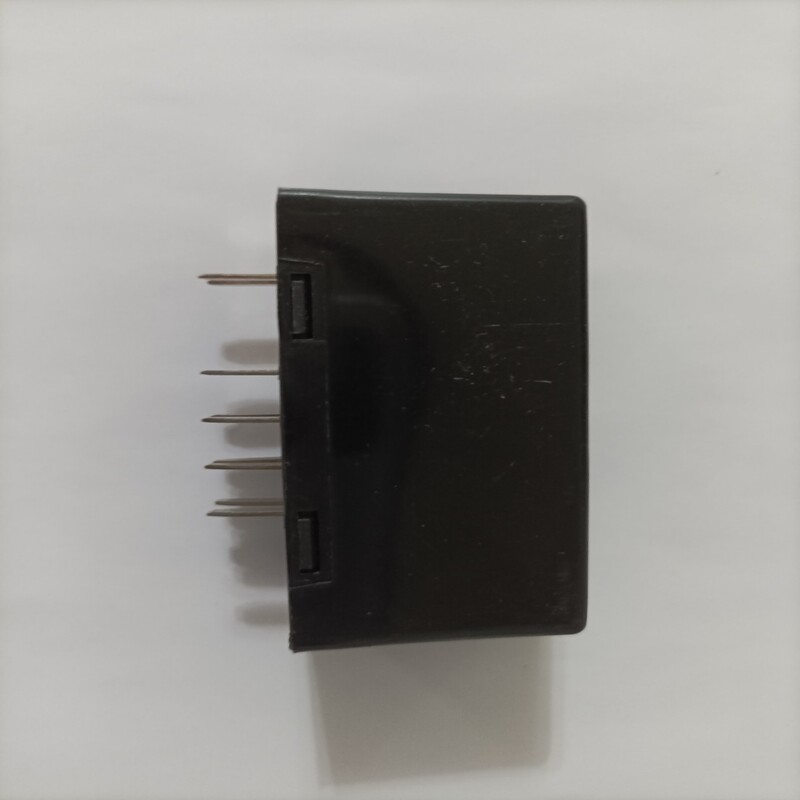

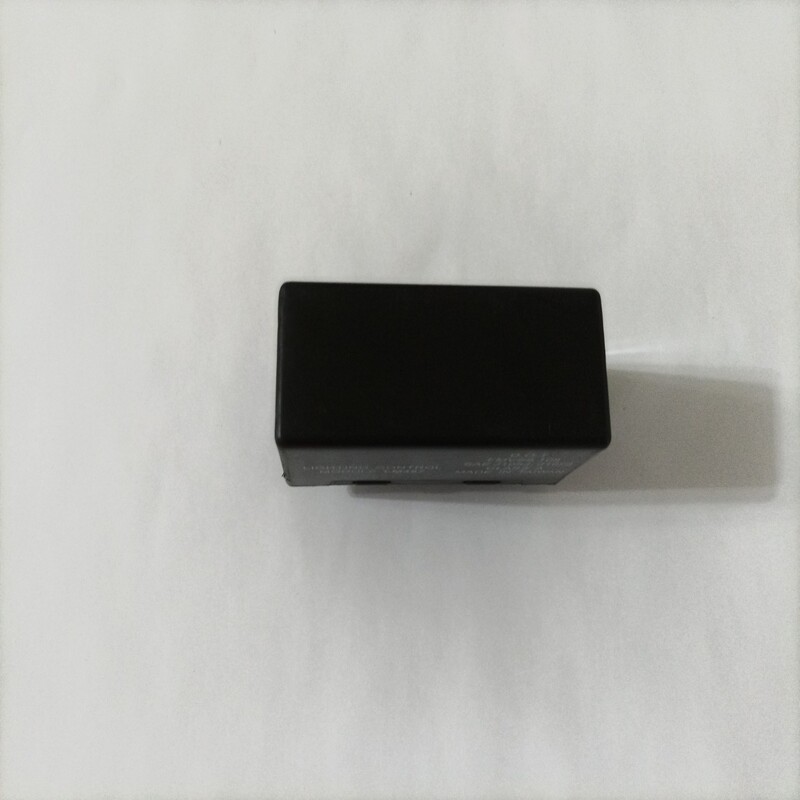

The module can control all the lighting functions in your automobile.

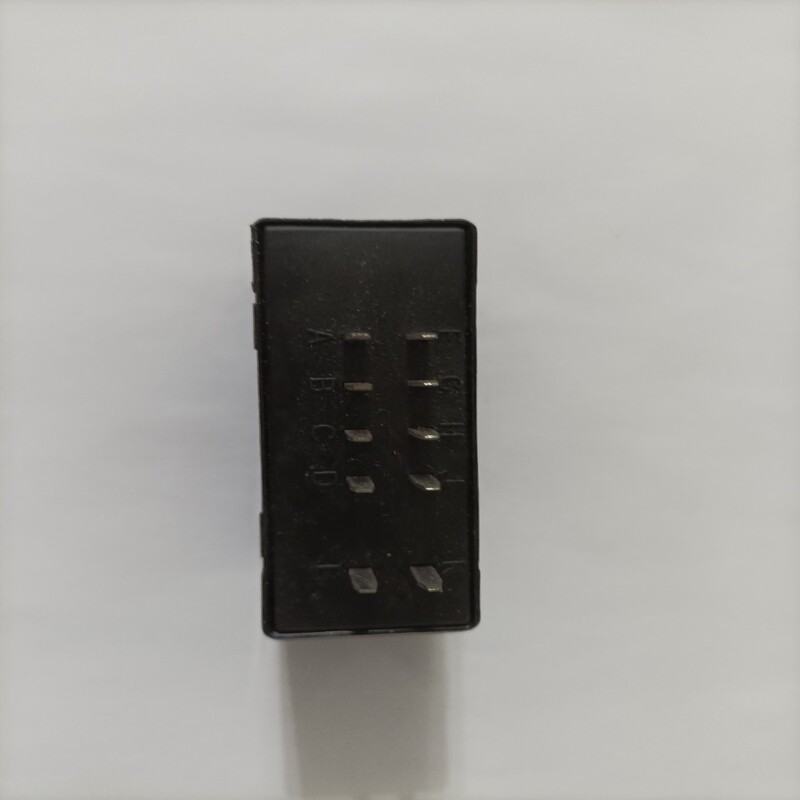

A Terminal= TS S/W Right
B Terminal= Brake S/W
C Terminal= L Brake Load(TS Lift back load)(LED Lamp)
D Terminal= R Brake Load(TS Right back load)(LED Lamp)
E Terminal= Battery(Negative)
F Terminal= TS S/W Left
G Terminal= H.W. S/W
H Terminal= T.S. Left Front Load
J Terminal= T.S. Right Front Load
K Terminal= Battery(Positive)
**Shell Construction: Plastic
**12v 25w 2/6 Lamps Brake Lamp Control(LED Lamp) Max 6 Lamp
**Time To First Flash: Less Than 1.5 Seconds
** Rated Voltage: 11 to 15 Volts DC
** Temperature Operating Range : -30∘C to 80∘C
** Voltage Drop at Rated Current : 500mv
** Duty Cycle: 35% to 75%
** Time Flash : 60-120c/m
