VERTICAL MACHINE CENTER

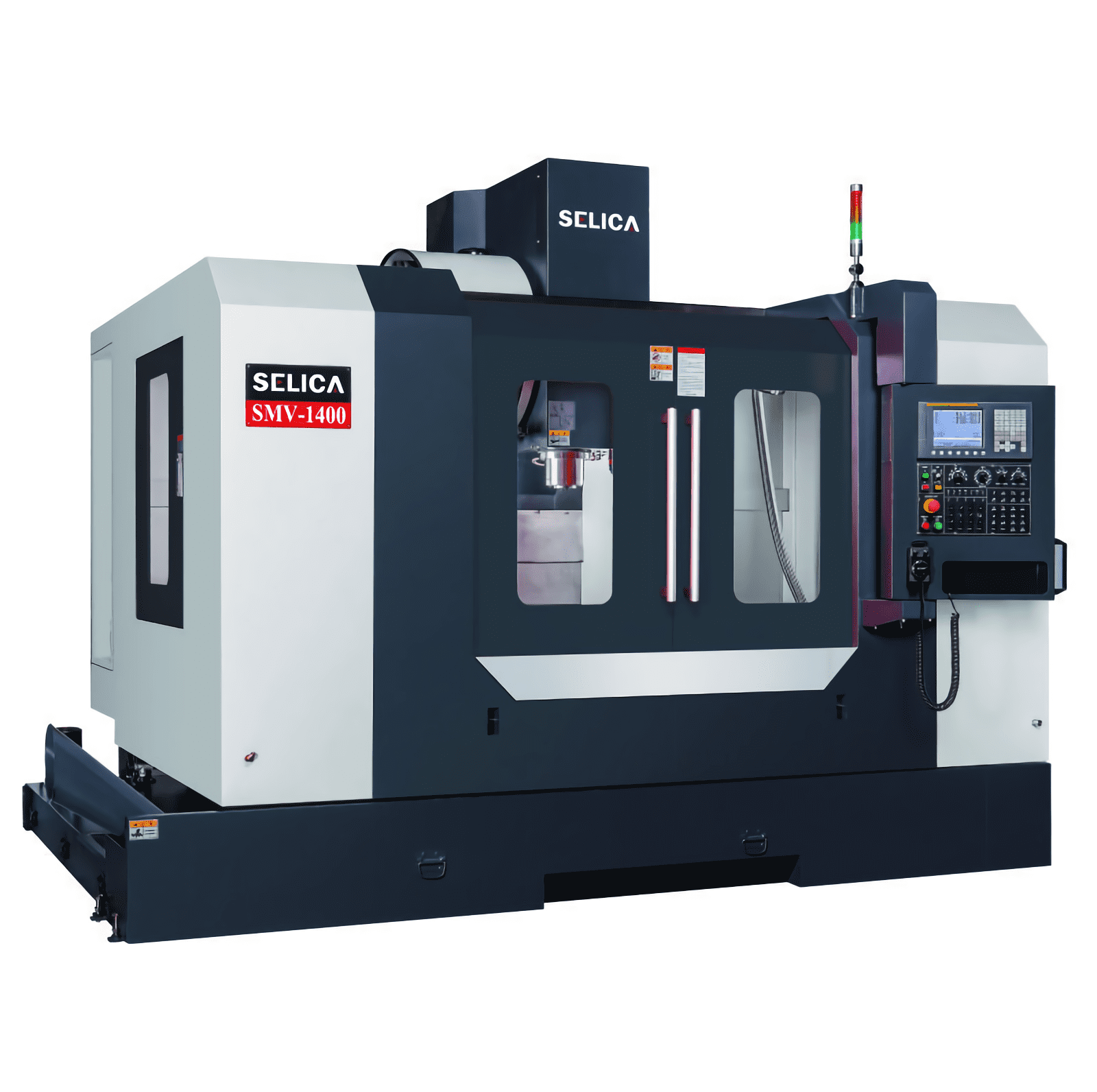

VERTICAL MACHINE CENTER SMV-1400
BOX WAY SERIES
Application: milling machine, cnc milling, high speed milling machine, rotary table.
High Precision Spindle
The spindle is assembled by our highly
skilled technicians.Before mounting on
the machine, each spindle is subjected
to a long time running test to ensure the
optimum condition.
The spindle runs on preloaded precision
angular contact ball bearings and transmitted
by a timing belt. Standard spindle speed is
8,000 RPM. On request, 10,000 or 12,000RPM
high speed spindles are available.
規格數據
| Contents | Model | Unit | SMV - 1400 | |
| Travel | 3-Axes travel | Box way series | ||
| X axis Travel | mm | 1400 | ||
| Y axis Travel | mm | 720 | ||
| Z axis Travel | mm | 600(120-760*) | ||
| Z axie travel (BT40) - opt. |
mm |
700(150-850*) | ||
| Z axie travel (BT50 belt type) - opt. | mm | 680(170-850*) | ||
| Z axie travel (BT50 gear head) - opt. | mm | 680(170-850*) | ||
| Table | Table area | mm | 1550 x 700 | |
| Max. load | kgs | 2000 | ||
| T- slot | mm | 5 x 18 x 130 | ||
| Spindle | Spindle taper | type | BT40(BT-50 opt.) | |
| Spindle speed | rpm | 10000 | ||
| Spindle drive | type | Belt (Gear head opt.) | ||
| Spindle motor | kw | 11/15 | ||
| Spindle cooling | type | Oil cooler | ||
| Feed Rate | Rapid traverse X | m/min | 18 | |
| Rapid traverse Y | m/min | 18 | ||
| Rapid traverse Z | m/mm | 15 | ||
| Cutting feed rate | mm/min | 1-10000 | ||
| X / Y/ Z Axis servo motor(FANUC) | kw | 3/3/3 | ||
| X / Y/ Z Axis servo motor (MITSUBISHI) | kw | 3.5/3.5/3.5 | ||
| A.T.C. | Magazine type | type | Arm | |
| Tool magazine capacity | pcs | 24 | ||
| Max. tool diameter | mm | 75/150 | ||
| Max. tool length | mm | 300 | ||
| Max. tool weight | kgs | 7 | ||
| Tool selection | type | Random | ||
| Others | Power consumption | KVA | 20 | |
| Machine size (LxWxH) | mm | 4150x3650x3050 | ||
| Machine weight | kgs | 11000 | ||
*Design and Specifications are subject to change without prior notice.
"*"-Distance from spindle nose to table surface
Standard Accessories
| ● Full splash guard |
| ● Belt type spindle speed 10000 rpm, BT40 |
| ● Spindle motor 11/15kw |
| ● Rigid tapping |
| ● Cooling system |
| ● Auto lubrication system |
| ● Spindle oil cooler unit |
| ● Heat exchanger |
| ● Work lamp |
| ● Three-color call light |
| ● Tool box |
| ● Coolant gun |
| ● Screw type chip conveyor |
Optional Accessories
| ● Transformer |
| ● CE Mark |
| ● Arm type ATC 30 tools,BT40 or BT50 |
| ● Spindle motor 15/18.5kw |
| ● Belt type spindle speed 6000/8000 rpm, BT50 |
| ● Arm type ATC 24 tools, BT40 |
| ● Rigid tapping |
| ● Cooling system |
| ● Auto lubrication system |
| ● Spindle oil cooler unit |
| ● Heat exchanger |
