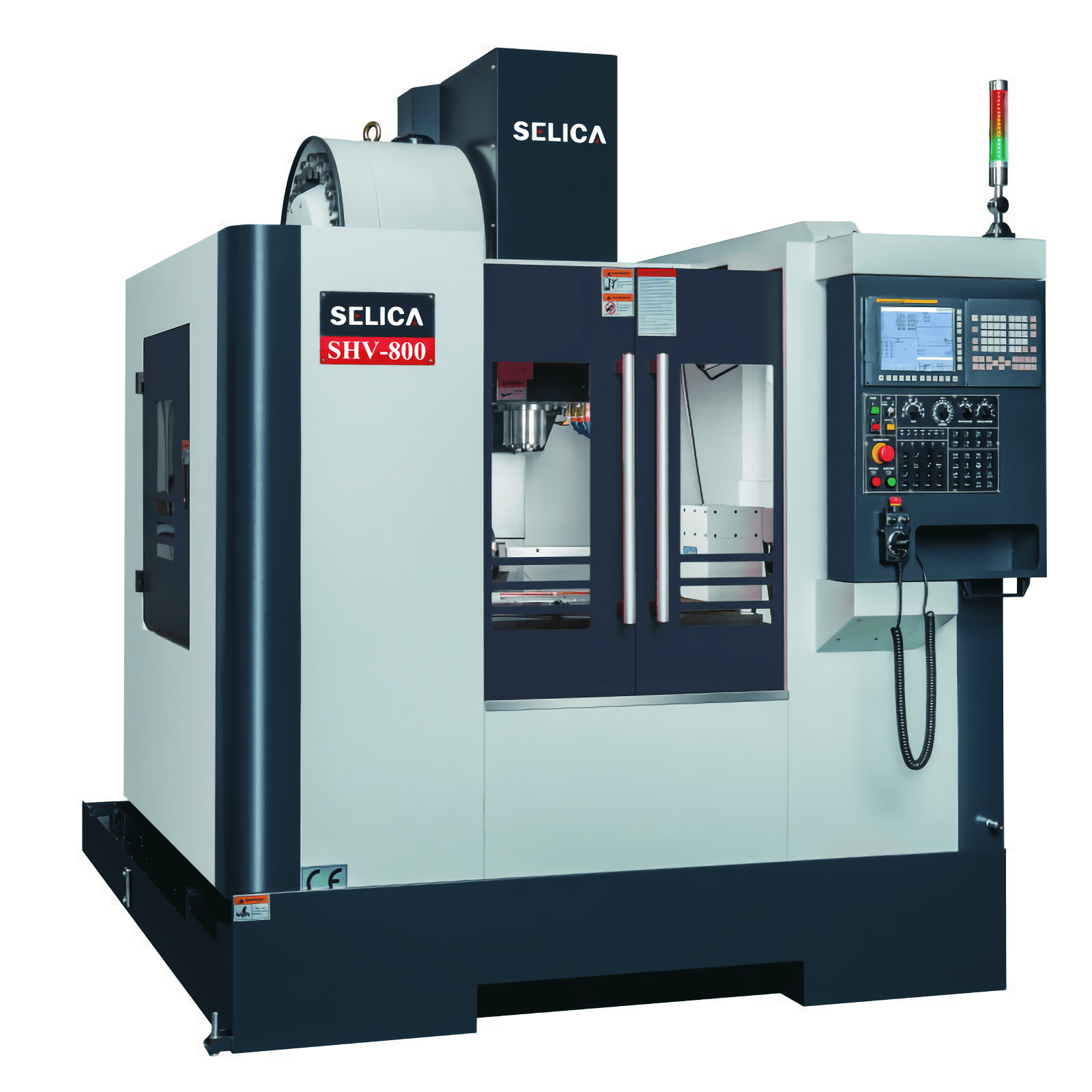

Application: milling machine, cnc milling, high speed milling machine, rotary table.
Optimal Structure Design High Rigidity! Lifetime Stability!
The machine structure is constructed from high quality Meehanite cast iron and stress released to
ensure great rigidity and prolonged precision.
All axes with high precision linear guideway ensure rapid movement and accurate positioning.
The column bottom is specially designed with A-shaped structure to increase machine stability while
machining.
Finite Element Analysis
The structural parts on Selica machine are analyzed and designed by the advanced Finite Element Analysis.
It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity
and lifetime stability.
Linear Guide Way
The machine employs 30/35/35mm wide ball-type linear guide ways.
Precision Ball Screw
Three axes are transmitted by high precision ball screws,
preloaded, hardened and ground-assuring dependable feed accuracy.
Contents | Model | Unit | SHV-800 | |||
Travel | 3-Axes travel | Linear guideways | ||||
X axis travel | mm | 800 | ||||
Y axis travel | mm | 500 | ||||
Z axis travel | mm | 580 | ||||
Distance from spindle nose to table surface | mm | 120-700 | ||||
Table | Table area | mm | 900 x 500 | |||
Max. load | kgs | 500 | ||||
T- slot | mm | 5 x 18 x 100 | ||||
Spindle | Spindle taper | - | BT40 | |||
Belt type | rpm | 10000 | ||||
Spindle speed | rpm | 8000/10000/15000 | ||||
Spindle motor | kw | 5.5/7.5 | ||||
Spindle cooling | - | Oil cooler | ||||
Feed rate | Rapid traverse X | m/min | 30 | |||
Rapid traverse Y | m/min | 30 | ||||
Rapid traverse Z | m/mm | 24 | ||||
Cutting feed rate | mm/min | 1-15000 | ||||
X / Y/ Z Axis servo motor(FANUC) | kw | 1.2 / 1.8/ 3.0 | ||||
X / Y/ Z Axis servo motor (MITSUBISHI) | kw | 1.5 / 1.5 / 2 | ||||
A.T.C. | Magazine type | type | Arm | |||
Tool magazine capacity | pcs | 24 | ||||
Max. tool diameter | mm | 75/150 | ||||
Max. tool length | mm | 250 | ||||
Max. tool weight | kgs | 7 | ||||
Tool Selection | type | Random | ||||
Others | Power consumption | KVA | 20 | |||
Machine size (LxWxH) | mm | 2400x2600x2800 | ||||
Machine weight | kgs | 4500 |
*Specifications are subject to change without prior notice.
Standard Accessories
● Full splash guard |
● Spindle speed 10,000rpm, BT40 |
● Spidle motor 5.5/7.5 kw |
● Armless type ATC 24 tools, BT40 |
● Rigid tapping |
● Cooling system |
● Auto lubrication system |
● Spindle oil cooler unit |
● Heat exchanger |
● Telescopic covers for 3 axes |
● Work lamp |
● Three-color call light |
● Tool box |
● Coolant gun |
● Screw type chip conveyor+chip cart |
Optional Accessories
● Transformer |
● CE mark |
● Armless type ATC 20 tools |
● Arm type ATC 24 tools |
● Belt type spindle speed 10000/12000 rpm |
● Direct drive spindle speed 10000/12000/15000 rpm |
● Built-in type spindle speed 24000 / 30000 / 36000 rpm |
● Rear coolant flushing device |
● Oil skimmer |
● Coolant through spindle (With sealed splash guard) |
● Screw type chip conveyor + chip cart |
● Chain type chip conveyor + chip cart |
● The 4th axis rotary table |
