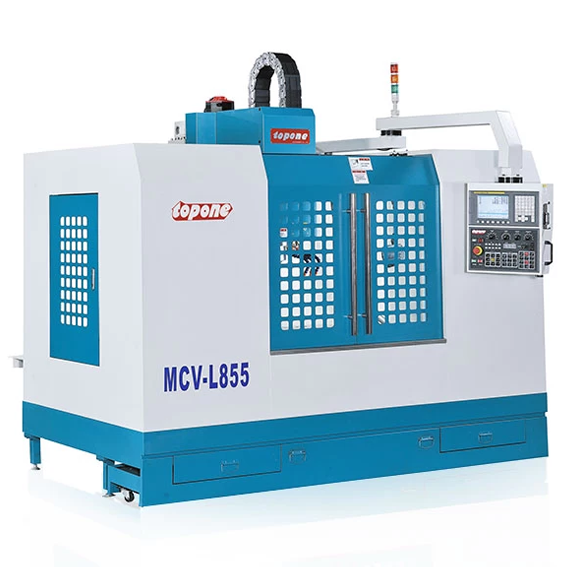

MCV-L855

‧ X, Y, Z-axis travel 800 x 500 x 550 mm
‧ BT40 spindle taper
‧ Belt drive: 8,000 rpm (standard)
‧ Direct Drive: 10,000, 12,000, 15,000 rpm (option)
‧ Linear ways on X, Y, Z-axis
‧ Arm type: 20/24 Tools
‧ Fully enclosed splash guard
‧ Fanuc / Mitsubishi control system
‧ Spindle cooler is standard equipment

Specification

FEATURES

Belt Drive Spindle



The belt drive spindle:  8,000 rpm



belt-drive-spindle-linear-ways

SPECIFICATIONS

Model MCV-L855
Table
Working surface 500 x 1000 mm
T-slots (number x size x pitch) 5 x 18 x 100 mm
Max. table load 600 Kg
Travel
Longitudinal travel (X) 800 mm
Cross travel (Y) 500 mm
Headstock travel (Z) 500 mm
Distance between spindle end and table top 130~ 630 mm
Spindle
Type of tool shank BT40
Spindle speeds Belt 8000 RPM (std.)
DDS 10000, 12000, 15000 PRM (opt.)
Spindle speed range 1
Spindle cooling / lubrication method Oil / Grease lubrication
Feed
Cutting feed 1~10000 mm/min
Rapid traverse (X / Y / Z) 30 / 30 / 24 m/min
Minimum input increment 0.001 mm
ATC
Type Arm
Tool holder BT40
Tool storage capacity 20 / 24 tools
Max. tool weight 8 Kg
Max. tool dia. of adjacent pots are empty 150 mm
Tool selection Random
Tool change time 3 sec
Motors
Spindle motor 7.5 / 11 kW
X axis 3 kW
Y axis 3 kW
Z axis 3 kW
Installation Requirements
Power 25 KVA
Voltage 220 V / 50 Hz
Pneumatlc pressure 6-8 kg/cm²
Pneumatlc flowrate 100 L/min
Floor space 2620 x 2050 x 2840 mm
Net weight 5500 Kg

*Note: Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
