Vertical Machining Center - Linear Ways Series

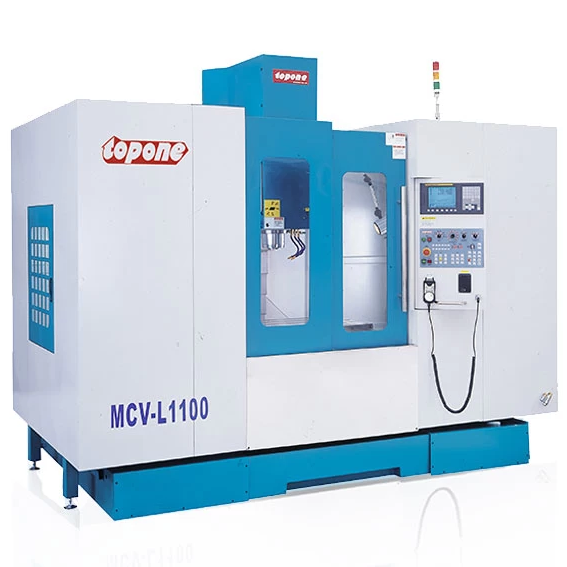

Vertical Machining Center - Linear Ways Series ／ MCV-L1100
MCV-L1100
‧ X, Y, Z-axis travel 1100 x 520 x 560 mm
‧ BT40 spindle taper
‧ Belt drive: 8,000 rpm (standard)
‧ Direct Drive: 10,000, 12,000, 15,000 rpm (option)
‧ Linear ways on X, Y, Z-axis
‧ Arm type: 20/24 Tools
‧ Fully enclosed splash guard
‧ Fanuc / Mitsubishi control system
‧ Spindle oil cooler is standard equipment
Specification
FEATURES
Belt Drive Spindle
The belt drive spindle: 8,000 rpm
SPECIFICATIONS
| Model | MCV-L1100 |
|---|---|
| Table | |
| Working surface | 600 x 1200 mm |
| T-slots (number x size x pitch) | 5 x 18 x 100 mm |
| Max. table load | 1000 Kg |
| Travel | |
| Longitudinal travel (X) | 1100 mm |
| Cross travel (Y) | 520 mm |
| Headstock travel (Z) | 560 mm |
| Distance between spindle end and table top | 150~ 710 mm |
| Spindle | |
| Type of tool shank | BT40 |
| Spindle speeds | Belt 8000 RPM (std.) DDS 10000, 12000, 15000 RPM (opt.) |
| Spindle speed range | 1 |
| Spindle cooling / lubrication method | Oil / Grease lubrication |
| Feed | |
| Cutting feed | 1~10000 mm/min |
| Rapid traverse (X / Y / Z) | 48 / 48 / 36 m/min |
| Minimum input increment | 0.001 mm |
| ATC | |
| Type | Arm |
| Tool holder | BT40 |
| Tool storage capacity | 20 /24 tools |
| Max. tool weight | 8 Kg |
| Max. tool dia. of adjacent pots are empty | 150 mm |
| Tool selection | Random |
| Tool change time | 3 sec |
| Motors | |
| Spindle motor | 7.5 / 11 kW |
| X axis | 3 kW |
| Y axis | 3 kW |
| Z axis | 4 kW |
| Installation Requirements | |
| Power | 25 KVA |
| Voltage | 220 V / 50 Hz |
| Pneumatlc pressure | 6-8 kg/cm² |
| Pneumatlc flowrate | 100 L/min |
| Floor space | 3250 x 3000 x 3000 mm |
| Net weight | 6700 Kg |
*Note: Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
STANDARD ACCESSORIES
- Fanuc / Mitsubishi control system
- Fully enclosed splash guard
- Rigid tapping
- Automatic lubrication system
- RS-232 interface
- Work lamp
- Automatic power off
- Spindle air blast
- Leveling bolts & pads
- Electrical handwheel
- Tool box with tools & operation manual
- Call light
- Table guard
- Oil circulating cooling system for spindle
- Transformer
- Heat exchanger for electrical cabinet
- Oil pressure box (for gear head)
OPTIONAL ACCESSORIES
- Arm ATC (16 / 20 / 24 Tools)
- Rotary table (4th axis)
- Chip conveyor
- Export packing
- Oil water separating tank
