Alloy Wheel Lathe

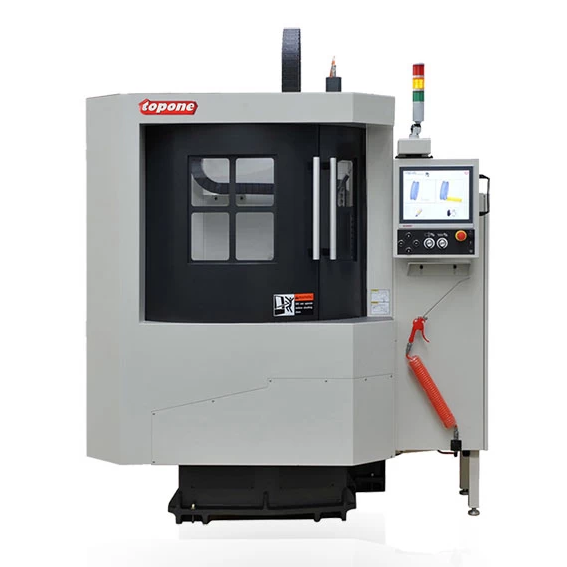

Alloy Wheel Lathe-TY-30
TY-30
Capable of Cutting Wheels from 14" to 30"
Certifications
U.S. Patent No.: US 9,616,499
Taiwan Patent PAT.NO. I I580520
Application :
AUTOMOTIVE
Specification
FEATURES
Sturdy Material Structure
- Meehanite integrated & annealed casting with reinforced rib, anti-deformation, and stress relief for long-term reliability
- X and Z axis are equipped with heavy duty roller type linear guideway. It preloads carriage, erases thermal displacement, produces low friction, and has smooth axial movement
High Percision Ball Screw
- C5 double nut precision ball screws
- P4 percision screw support
- Hardened and grounded to be durable
- Auto lube system for accuracy and longevity
Diamond Cut Finish
Allows to have clean and shinny finish like brand new
Digitizing Probe
- Ceramic stylus with ruby sensor point
- LED touch sensitive indicator light
- Measure and digitize the rim to record its surface
Lathe - VTL-30 Series
SPECIFICATIONS
| Model | TY-30 |
|---|---|
| Travel | |
| X Axis Travel | 20" |
| Z Axis Travel | 18" |
| Max Turning Wheel Diameter | 30" |
| Chuck Capacity | |
| 3-Jaw Chuck | 15" |
| Gripping O.D. Range | 14" - 30" |
| Distance | |
| Distance from Spindle End to Table | 0" - 18" |
| Spindle | |
| Spindle Nose Taper/Tool | A2-6 |
| Spindle Speed | 100 ~ 600 RPM |
| Spindle Type | Belt drive |
| Spindle Motor (4P) | 10HP |
| 2 Axis Servo Motor (X / Z) | 0.85HP / 0.85HP |
| Feed | |
| X Axis Rapid Traverse | 10 M/min |
| Z Axis Rapid Traverse | 10 M/min |
| Cutting Feedrate | 10 M/min |
| Min. Input Unit | 0.001 mm |
| Installation Requirements | |
| Connected Electricity | 15 KVA |
| Weights | 2000 Kg |
| Machine Dimension (L x W x H) | 79" x 62" x 100" |
| Shipping Dimension (L x W x H) | 90" x 80" x 106" |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
STANDARD ACCESSORIES
- Digitizing Package
- Diamond Cutters
- RS-232 & Ethernet Ports
- Full Enclosure
- Halogen Work Light
- Auto Lube
- Way Covers
- Chip Cart
- Tools & Tool Box
- Four Way Tool Post
- Cooling Spray
