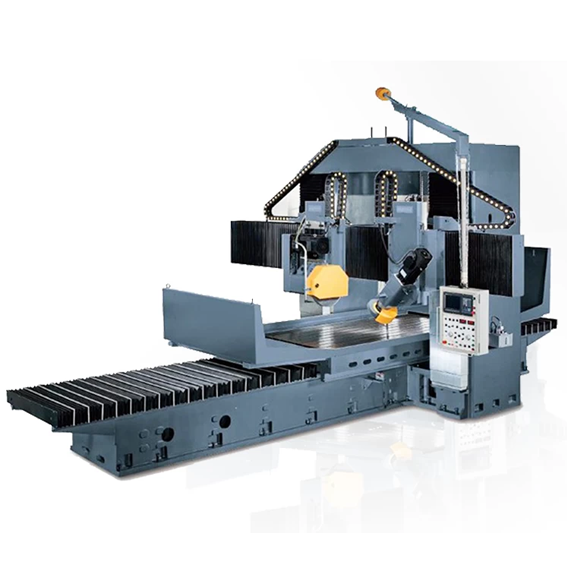

Successfully developed by Top-One's R&D team, this machine is excellent for precision grinding on extra large workpieces that also require highly efficient operations.
This series of machine is ruggedly constructed, exhibiting unmatched precise performance. In addition, its crossrail movable type design ensures that the wheel head achieves the highest stability to upgrade the overall grinding quality.
Application :
RAILWAY TRANDSPORT ENERGY SECTOR PETROCHEMICAL INDUSTRY
FEATURES
Beam Clamping
The beam is clamped securely by hydraulic force in combination with the use of dise springs. This fully prewents the beam from slipping down to eliminate any loss in grinding accuracy.
Beam Elevation
The beam elevation is driven by an inverter controlled motor that drives a connecting shaft to transmit the two elevation gcrews at the left and right sides. This elevation driving system allows the beam to clovate synchronously at both ends, so as to ensure outstanding leveling accuracy of the beam.
Double Hydraulic Cylinders' Counter-balance
The beam elewation (Z-axis) is counters balanced by two hydraulic cylinders, enguring exceptionally smooth motion sand the best travel accuracy.
Horizontal Grinding Head (Standard)
The Top-One GL series Double Column Surface Grinding Machine can be mounted with a horizontal grinding head and a vertical grinding head, allowing surface grinding and angular grinding to be accomplished at a time. With both grinding heads, the increased grinding accuracy and afficiency can be achieved.
SPECIFICATIONS
| Model | GL-1700 | GL-2200 | GL-2700 |
|---|---|---|---|
| Max. grinding surface (L x W) | 2/3/4 x 1.2 M | 3/4/5/6 x 1.6 M | 3/4/5/6 x 2.0 M |
| Grinding height | 1000~2000 mm | 1000~2000 mm | 1000~2000 mm |
| X axis travel | 2000~4000 mm | 3000~6000 mm | 3000~6000 mm |
| Y axis travel | 1500 mm | 2000 mm | 2500 mm |
| Z axis travel | 400 mm | 400 mm | 400 mm |
| W axis travel | 850~1850 mm | 850~1850 mm | 850~1850 mm |
| Distance between columns | 1700 mm | 2200 mm | 2700 mm |
| Table size (length) | 2000~4000 mm | 3000~6000 mm | 3000~6000 mm |
| Table size (width) | 1200 mm | 1600 mm | 2000 mm |
| T-slot | □22 mm | □22 mm | □22 mm |
| Max. table load | 2M:2 /3M:4 /4M:6 Ton | 3M:6 /4M:8 /5M:10 /6M:12 Ton | 3M:9 /4M:12 /5M:15 /6M:18 Ton |
| Double V slide distance | 700 mm | 900 mm | 1100 mm |
| X axis grinding speed | 5000~25000 mm/min | 5000~25000 mm/min | 5000~25000 mm/min |
| Y axis rapid feed | 3000 mm/min | 3000 mm/min | 3000 mm/min |
| Z axis rapid feed | 2000 mm/min | 2000 mm/min | 2000 mm/min |
| Min.Z axis feeding | 0.002 mm | 0.002 mm | 0.002 mm |
| M.P.G feeding increment | 0.002 / x1x10x100 mm | 0.002 / x1x10x100 mm | 0.002 / x1x10x100 mm |
| Y-axis motor | 2.9 kW | 2.9 kW | 2.9 kW |
| Z-axis motor | 2.9 kW | 2.9 kW | 2.9 kW |
| Vertical spindle motor | 12HP/6P (15HP optinal) | ||
| Horizontal spindle motor | 20HP/4P (25HP optinal) | ||
| Grinding wheel | Horizontal: 20" x 50 mm x 203 bore / Vertical: 14" x 50 mm x 127 bore | ||
| Horizontal spindle speed | 300~2000 RPM | 300~2000 RPM | 300~2000 RPM |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
STANDARD ACCESSORIES
- Grinding wheel calibrating device(Balancing Stand)
- Diamond dresser
- Magnetizer
- Wheel balancing arbor
- Horizontal/Vertical grinding wheel
- Flange(1 set)
- Heat exchanger for electrical cabinet
- Hydraulic oil cooler
- Paper filter(including filtrating paper and coolant tank)
- Voltage stabilizer
- Tool box with tools
- Operation and maintenance manual
OPTIONAL ACCESSORIES
- Automatic angle positioning device for vertical grinding head
- Vertical grinding head
- Grinding wheel
- Increased spindle speed
- Increased spindle horsepower
- Automatic wheel dresser for vertical grinding head
- Movable swiveling function
- Fanuc control
- Mitsubishi control
- Spared wheel flange set for vertical grinding head
- Spared wheel flange set for horizontal grinding head
- Transformer
