Specification
1. The machine design adopts mechanical, electrical and hydraulic integration method with a compact structure.
2. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
3. Automatic centralized lubrication with full sufficiency and reliability.
4. Full protection design with nice shape. Easy to operate and maintain.

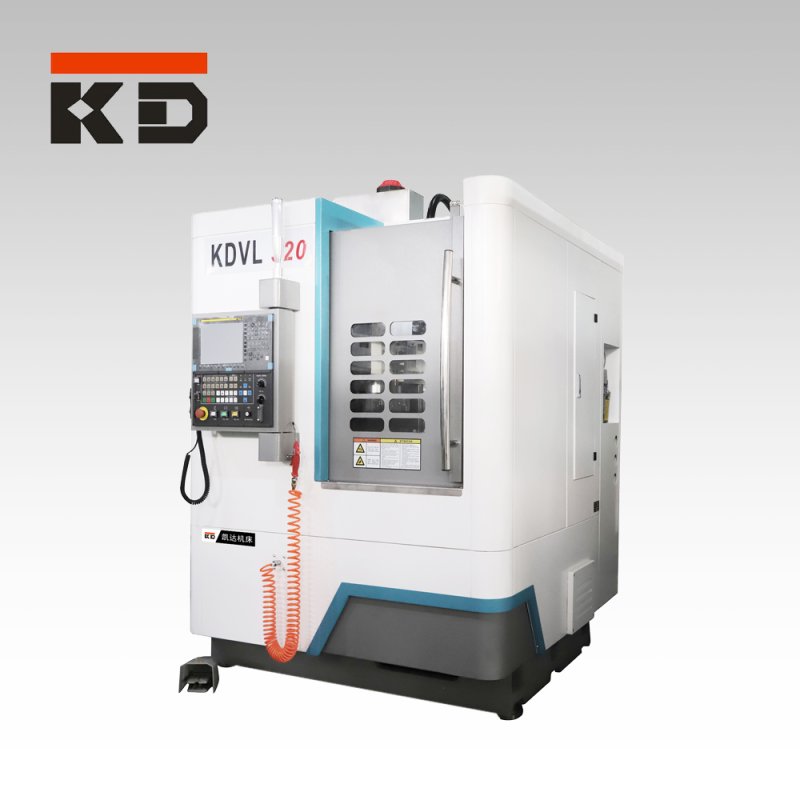

| Item | Unit | KDVL320 | KDVL320H |
| Processing | |||
| Max. cuting Dia. for disc parts | mm | Ø320 | Ø250 |
| Max. cuting Dia. for axle parts | mm | Ø320 | Ø250 |
| Max.cutting height | mm | 420 | 400 |
| Spindle | |||
| Spindle nose | mm | A₂-6 | A₂-6 |
| Front spindle bearing ID | mm | Ø100 | Ø100 |
| Spindle speed range | rpm | 100-2800 | 100-2800 |
| Steps of spindle speed | stepless | stepless | |
| Chuck Dia. | inch | 10 | 10 |
| Travel | |||
| Travel of X axis | mm | -50;+170 | -100;+170 |
| Travel of Z axis | mm | 450 | 450 |
| Feed | |||
| Rapid feed for X axis | m/min | 20 | 20 |
| Rapid feed for Z axis | m/min | 20 | 20 |
| Turret | |||
| Tool post type | Hydraulic | Live tool | |
| Tool post stations | pcs | 8 | 12 |
| Toolshank size（square） | mm | 25×25 | 20×20 |
| Toolshank size（round） | mm | Ø32 | Ø32 |
| Others | |||
| Power of main motor | kw | 7.5/11 | 7.5/11 |
| Live tool servo motor power | kw | 2.2/3.7 | |
| Hydraulic motor | kw | 1.5 | 1.5 |
| Coolant pump motor | w | 200 | 200 |
| Overall dimensions （L×W×H） | mm | 1700×2400×2360 | 1700×2400×2360 |
| Net weight | kg | 3500 | 3500 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
