Specification
X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.

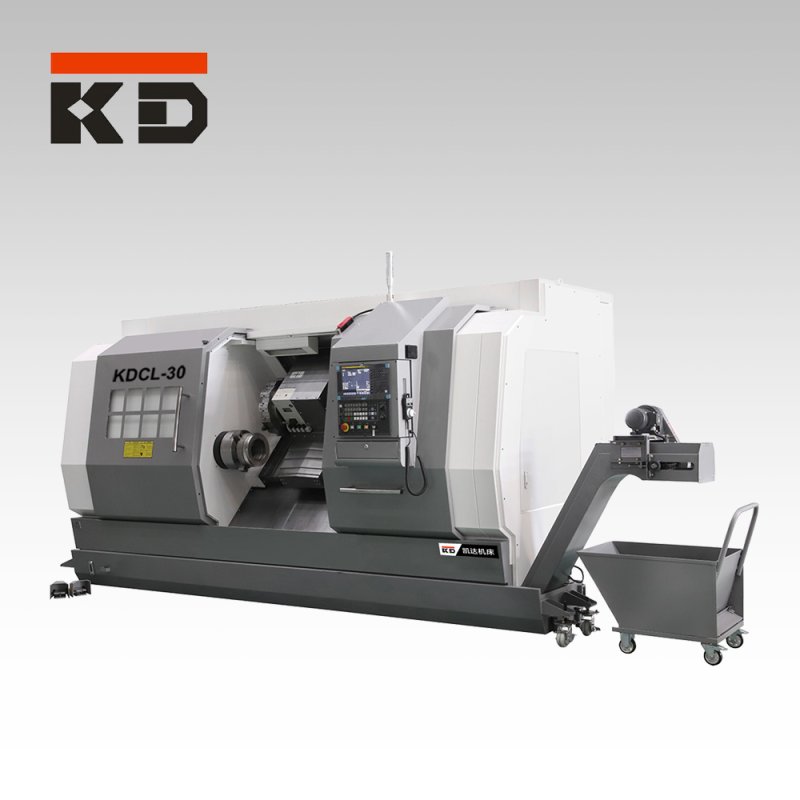

Item | Unit | KDCL-30 | KDCL-30H |
Processing | |||
Max. swing Dia. over bed | mm | Ø650 | Ø650 |
Max.cutting Dia. for disc parts | mm | Ø500 | Ø400 |
Max.cuting Dia. for axle parts | mm | Ø370 | Ø370 |
Max. cutting length for axle parts | mm | 1000 | 1000 |
Spindle | |||
Spindle bore | mm | Ø90 | Ø90 |
Spindle nose | A₂-8 | A₂-8 | |
Spindle speed | rpm | 2500 | 2500 |
Travel | |||
Max. travel of axis X | mm | 270 | 270 |
Max. travel of axis Z | mm | 1060 | 1060 |
Speed | |||
Rapid feed for axis X | m/min | 16 | 16 |
Rapid feed for axis Z | m/min | 20 | 20 |
Turret | |||
Tool post stations | pcs | 12 | 12 |
Live motor power | kW | 3.7/5.5 | |
Max. speed of live tool | rpm | 4000 | |
Outside Dia. Cutting tool shank | mm | 25×25 | 25×25 |
Inner Dia. cutting tool shank | mm | Ø40 | Ø40 |
Tailstock | |||
Tailstock sleeve Dia. | mm | Ø100 | Ø100 |
Tailstock sleeve travel | mm | 200 | 200 |
Tailstock sleeve bore taper | MT.No.6 | MT.No.6 | |
Others | |||
Power of main motor | kW | 18.5/22 | 18.5/22 |
Bed structure | 45°Slant bed | 45°Slant bed | |
Min. input | mm | 0.001 | 0.001 |
Repeatability | mm | ≤0.006 | ≤0.006 |
Chuck Dia. | 12 | 12 | |
Overall dimensions (L×WxH) | mm | 5500×1980×2260 | 5500×1980×2260 |
Net weight | kg | 7000 | 7500 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
