CNC Vertical Lathe

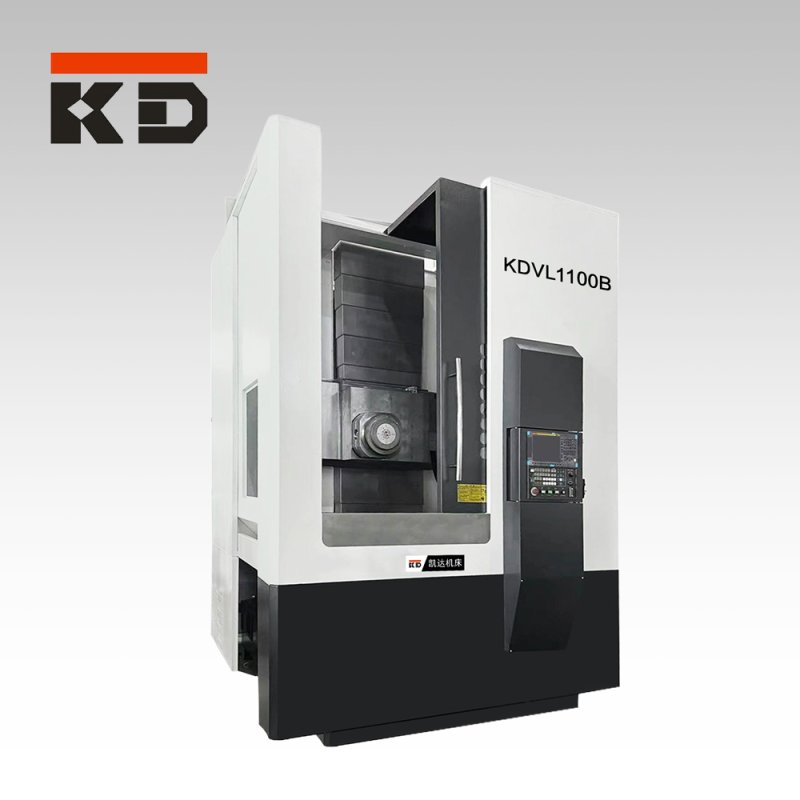

CNC VERTICAL LATHE
KDVL1100B/1300B

Specification

Compact vertical structure design.Rigid spindle bearing structure ensures machines' heavy cutting.Precision linear way and ball screw used.Machine totally sealed guard structure. Back side chip conveyor equipped.

SPECIFICATION PARAMETER

Item Unit KDVL1100B KDVL1300B
Processing
Max.swing Dia. mm Ø1100 Ø1300
Max.cutting Dia. for disc parts mm Ø 1100 Ø 1300
Max.cutting Dia. for axle parts mm Ø700 Ø900
Max.cutting height mm 1000 1000
Travel
Max.travel of axis X mm -20;+675 -20;+675
Max.travel of axis Z mm 1120 1120
Feed
Rapid feed for axis X m/min 16 16
Rapid feed for axis Z m/min 16 16
Spindle
Spindle nose     A₂-15 A₂-15
Spindle speed rmp 50~600 400(Install manual four-claw highest)
Max.table load kg 4000(With chuck) 4000kg(With chuck)
Manual heavy-duty four-jaw chuck mm Ø800 Ø1000mm
Turret
Tool post stations pcs Horizontal 12 stations/Vertical 4 stations (optional) Horizontal 12 stations/Vertical 4 stations (optional)
Outer Dia. cutting tool shank mm 32×32 32×32
Max.inner Dia. cutting tool shank mm Φ50(Horizontal)/Φ60(Vertical) Φ50(Horizontal)/Φ60(Vertical)
Others
Spindle motor power kw 30 50
Hydraulic motor kw 2.25 2.25
Water pump motor w 750 750
Overall dimensions (L×W×H) mm 2950×3500×3900 3100×3750×3900
Net weight kg 15500 16500



The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
