CNC Vertical Lathe

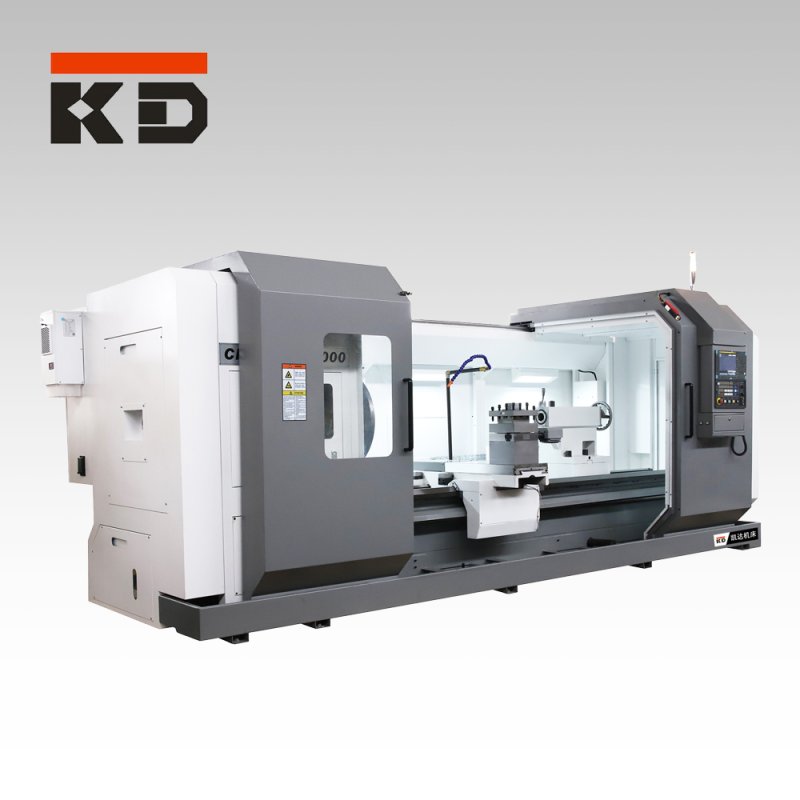

FLAT TYPE CNC LATHE
CK6191B/61100B/61110B

Specification

Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.

SPECIFICATION PARAMETER

Item Unit CK6191B CK61100B CK61110B
Processing
Max. swing over bed mm Ø900 Ø1000 Ø1100
Max. cutting Dia. for disc parts mm Ø900 Ø900 Ø900
Max. cutting Dia. for axle parts mm Ø530 Ø600 Ø720
Width of bed     mm 600 600 600
Max. workpiece length mm 1500/2000/3000/4000 1500/2000/3000/4000 1500/2000/3000/4000
Max. turning length mm 1350/1850/2850/3850 1350/1850/2850/3850 1350/1850/2850/3850
Max. weight between centers kg 2000 2000 2000
Spindle
Spindle nose   D11 D11 D11
Spindle bore mm Ø104    Ø104    Ø104
Taper of spindle hole   Metric Ø120 1:20 Metric Ø120 1:20 Metric Ø120 1:20
Steps of spindle speed   4 gears(stepless in each) 4 gears(stepless in each) 4 gears(stepless in each)
Range of spindle speed rpm 10~90,20~180,40~320,80~630 10~90,20~180,40~320,80~630 10~90,20~180,40~320,80~630
Feed
Rapid feed for axis Z m/min 8 8 8
Rapid feed for axis X m/min 8 8 8
Travel
Max. travel of axis Z mm 1500/2000/3000/4000 1500/2000/3000/4000 1500/2000/3000/4000
Max.travel of axis x mm 520 520 520
Turret
Tool post stations pcs 4 4 4
Tool cross section mm 40×40    40×40    40×40
Tailstock
External diameter mm Ø100 Ø100 Ø100
Taper of tailstock sleeve   MT.No.6 MT.No.6 MT.No.6
Max. travel of taiistock sleeve mm 250 250 250
Others
Min.input mm 0.001 0.001 0.001
Power of main motor kW 15 15 15
2 m machine tool overall dimensions (L×W×H) mm 4200×2000×1930 4200×2000×1980 4200×2000×2030
2 m machine tool Net weight kg 6600 6770 6940



The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
