Specification

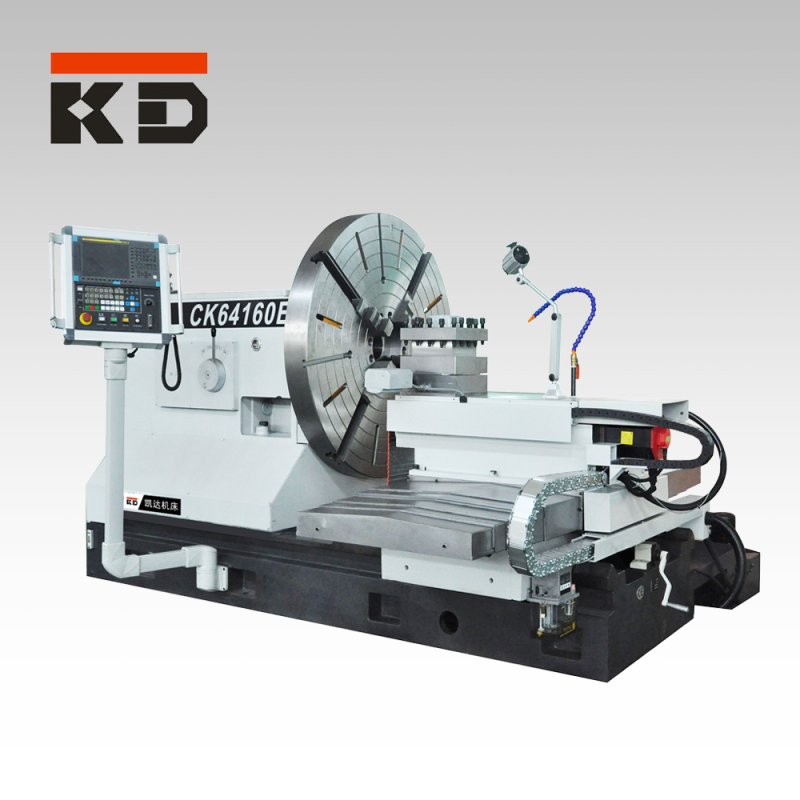

1. Suitable for turning of large flat parts of plate and ring type.
2. 1100mm wide base with double convex guide ways supersonically hardened.
3. Distance between cross bed and chuck can be manually adjusted.
| ITEMS | UNIT | CK64160E |
| Processing | ||
| Max.cutting Dia. for disc parts | mm | Ø1600 |
| Max. cutting Dia. for axle parts | mm | Ø1000 |
| Width of bed | mm | 1100 |
| Max. workpiece length | mm | 500 |
| Spindle | ||
| Spindle nose | A₂-15 | |
| Spindle bore | mm | Ø130 |
| Taper of spindle hole | Metric Ø140 1:20 | |
| Steps of spindle speed | manual 2 gears，stepless in each | |
| Range of spindle speed | rpm | 2.5～34、20～270 |
| Feed | ||
| Rapid feed for axis Z | m/min | 6 |
| Rapid feed for axis X | m/min | 12 |
| Max. travel of axis Z | mm | 500 |
| Max.travel of axis X | mm | 900 |
| Turret | ||
| Tool post stations | pcs | 4 |
| Spindle center to tool mounting surface | mm | 50 |
| Others | ||
| Min.input | mm | 0.001 |
| Power of main motor | kW | 26 |
| Power of cooling pump | W | 180 |
| Overall dimensions (LxW×H) | mm | 3500×2600×2100 |
| Net weight | kg | 11000 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
